SELF-LOADING REEL TRAILER

SLRT-17

GVWR: 9,500 lbs.
Payload: 7,000 lbs.
Reel Width: 65"
Reel Diameter: 120"

Overview

About the SELF-LOADING REEL TRAILER

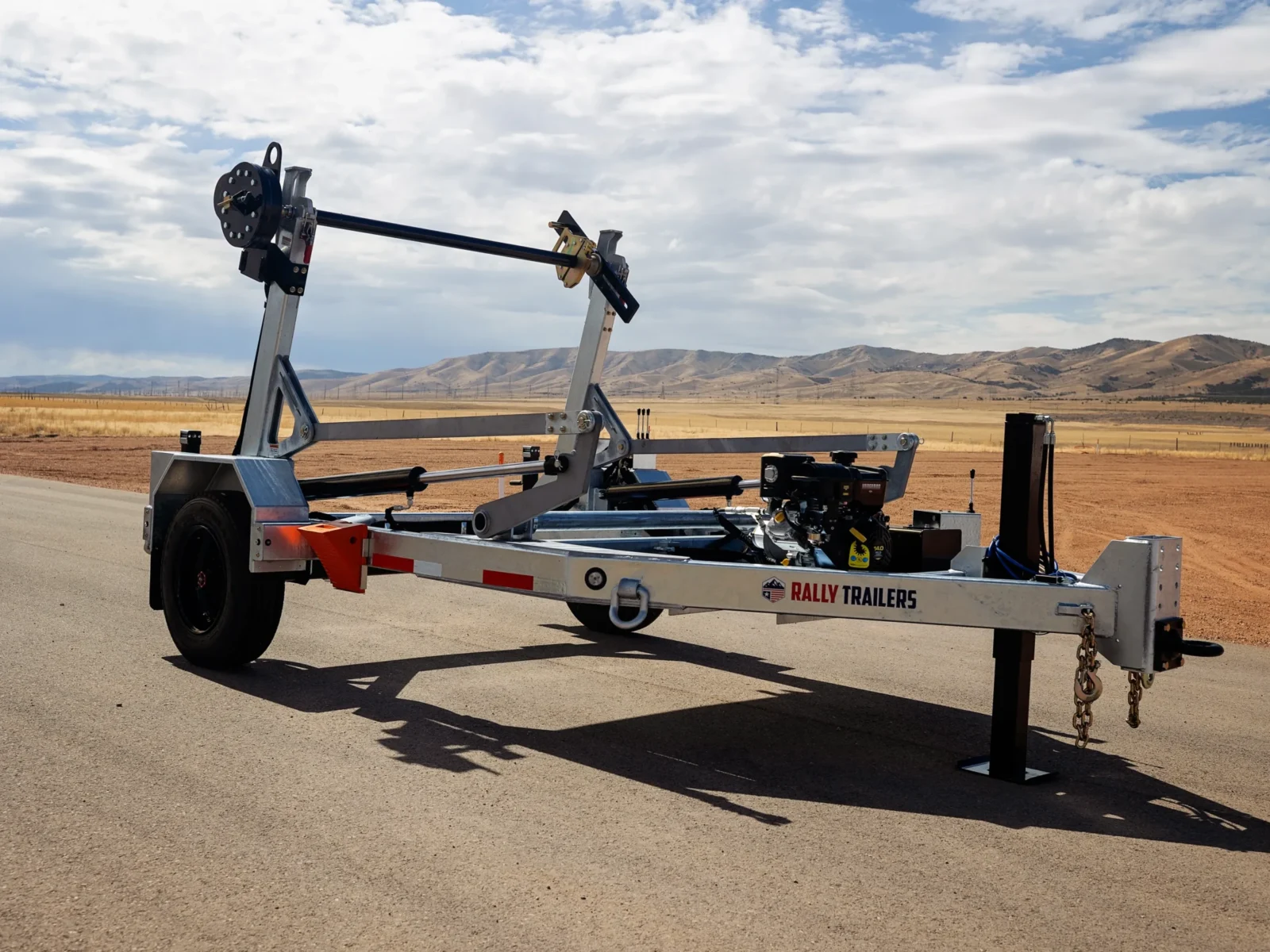

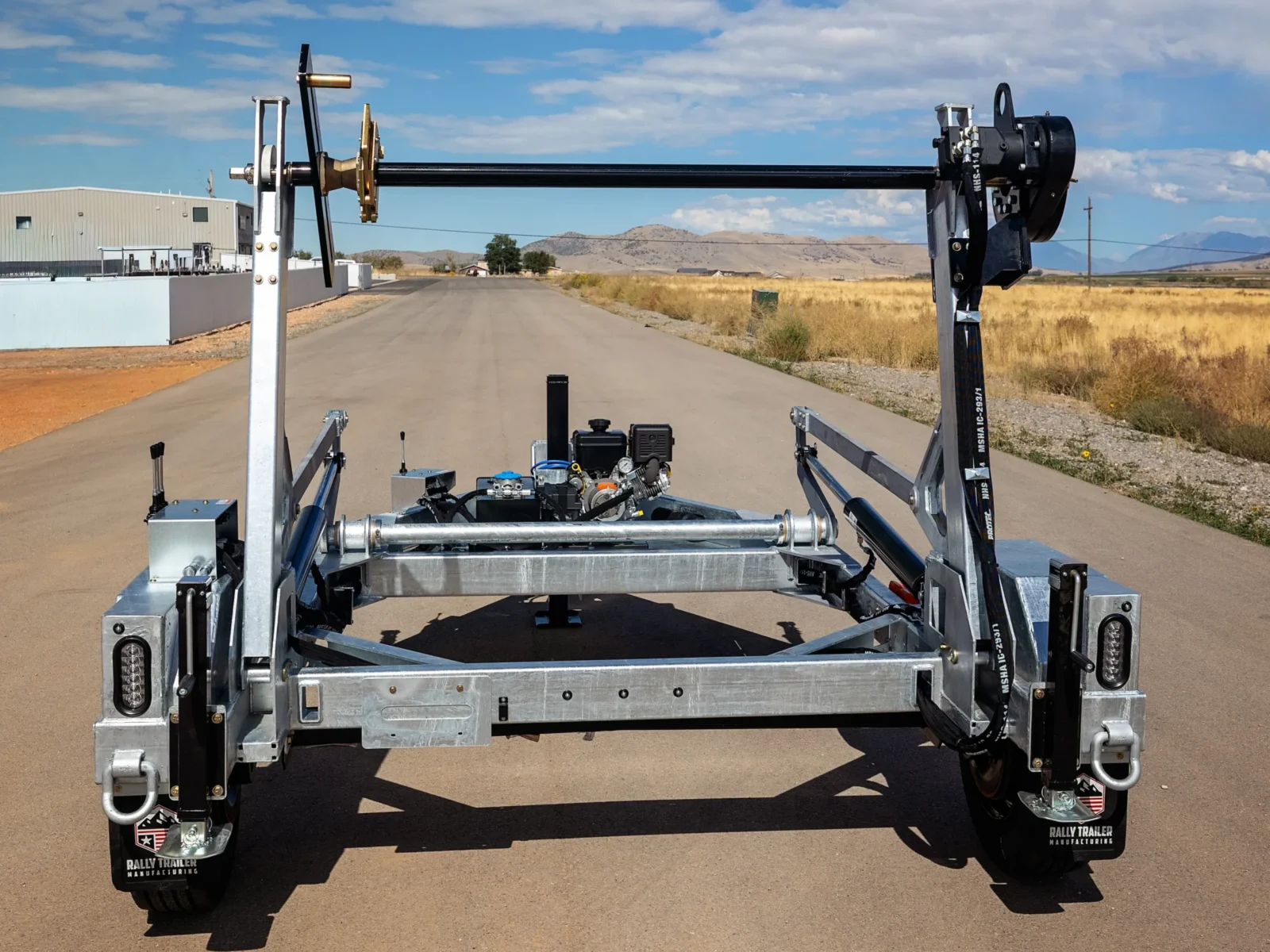

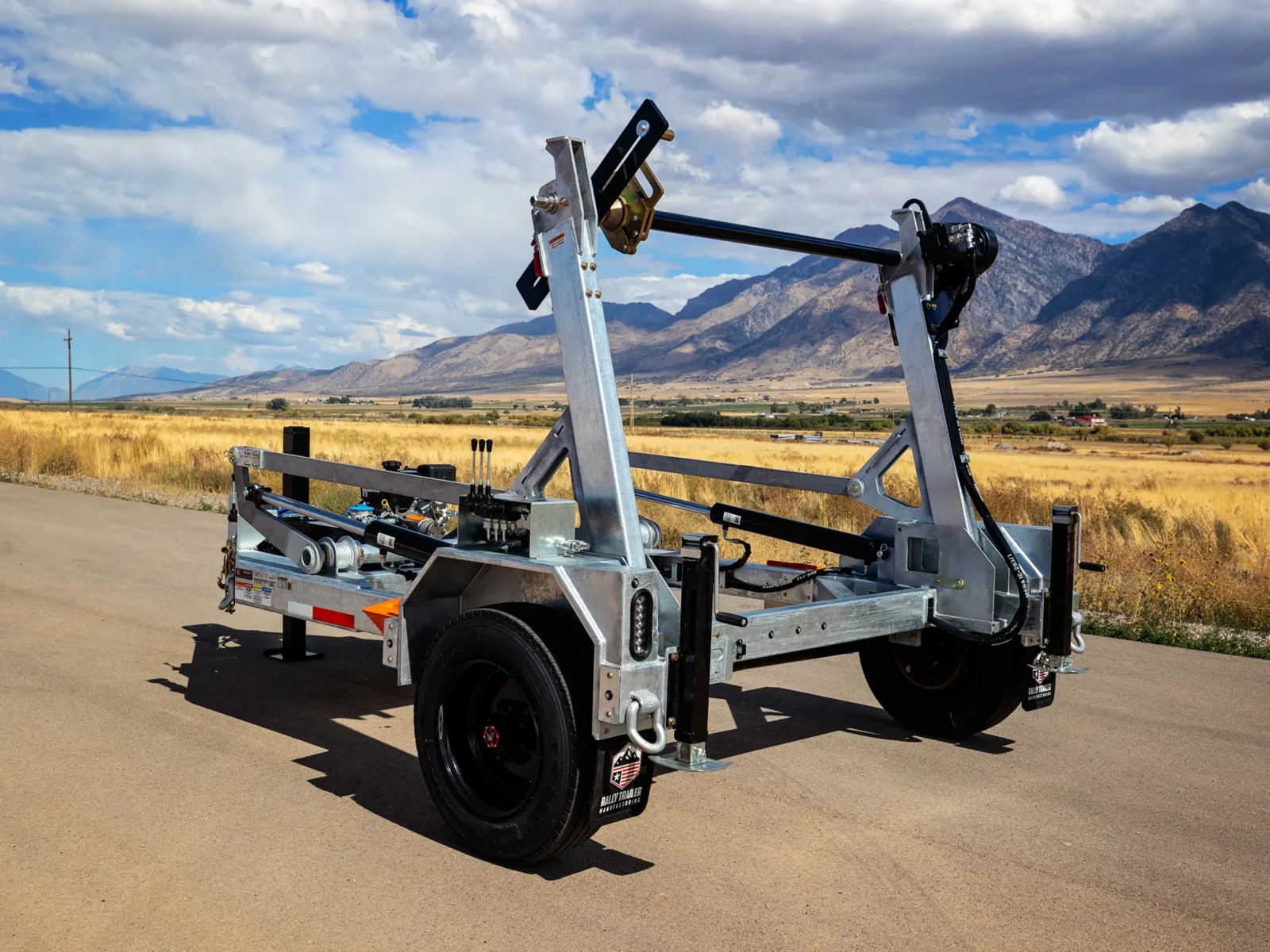

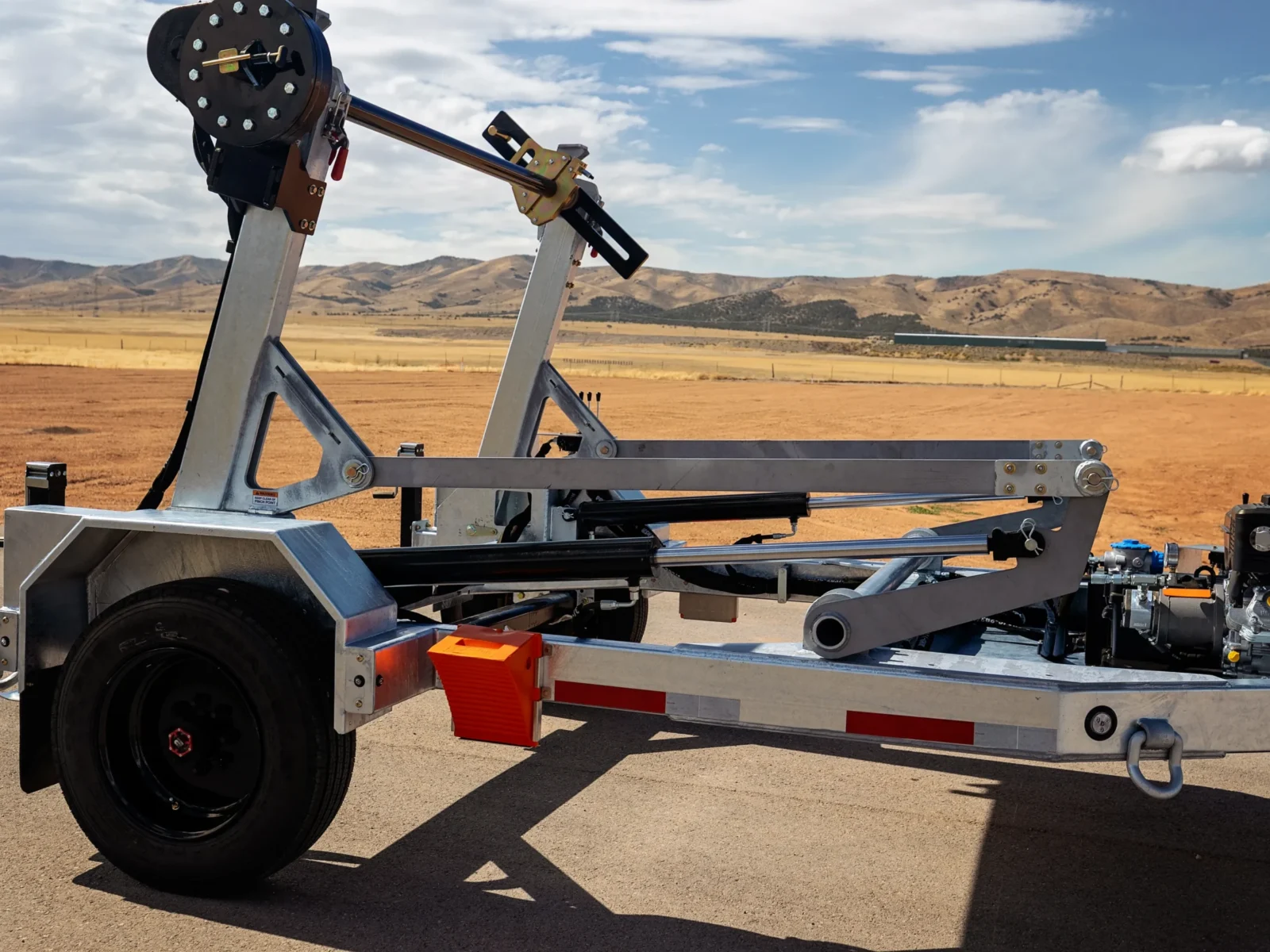

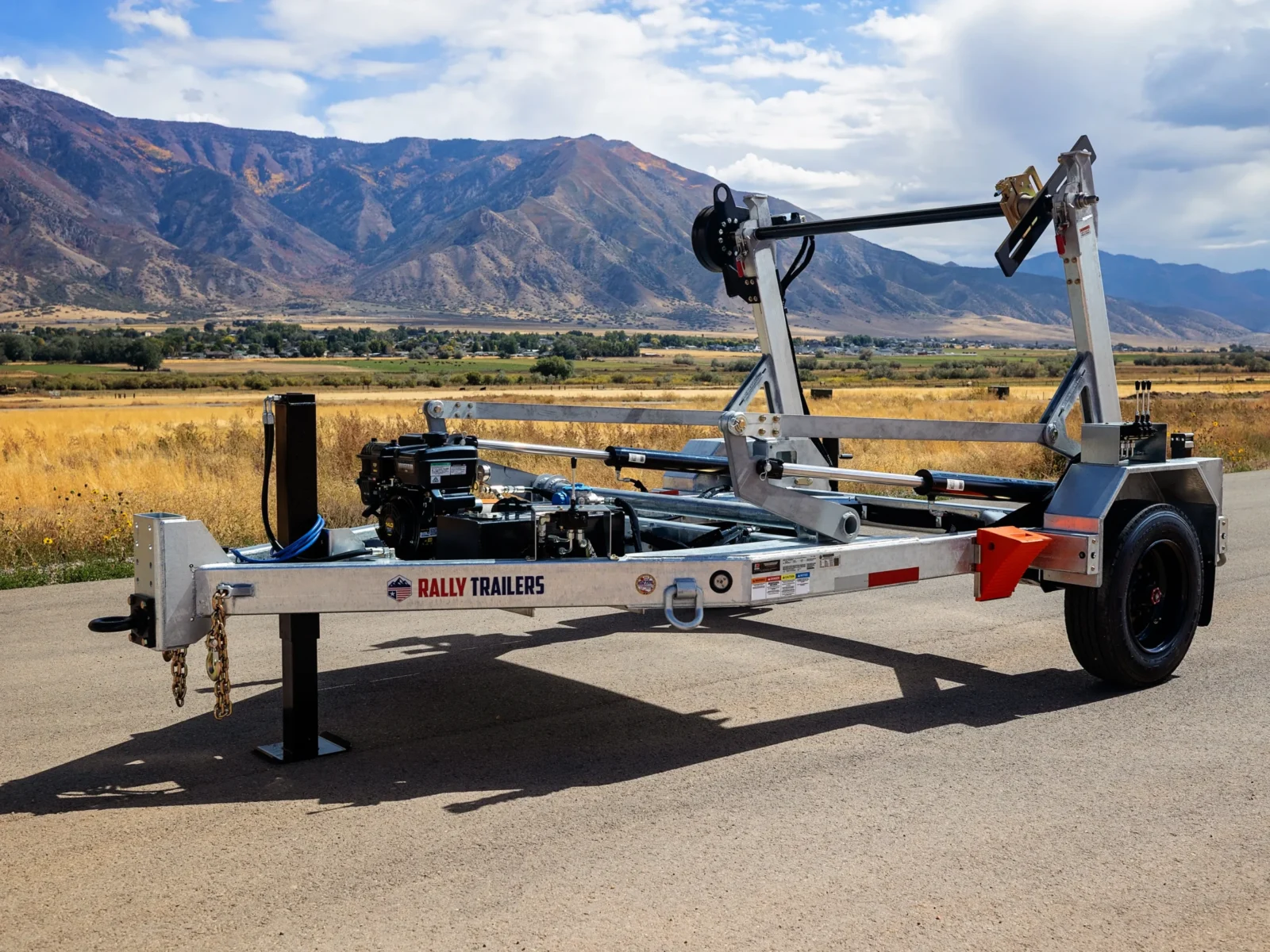

The Self-Loading Reel Trailer is engineered for efficient transport and handling of large cable or conduit reels in utility, telecom, and power applications. Powered by a 14 HP engine, the hydraulic lifting system delivers a 7,000-lb lift capacity, allowing operators to load a reel directly onto the trailer. Two hydraulic arms pick up and load the reel, accommodating reels up to 120″ in diameter and 65″ wide.

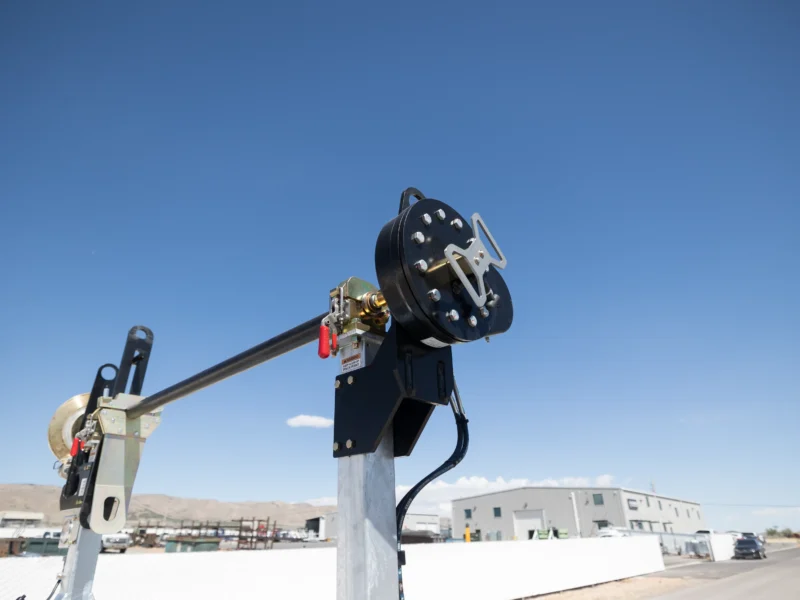

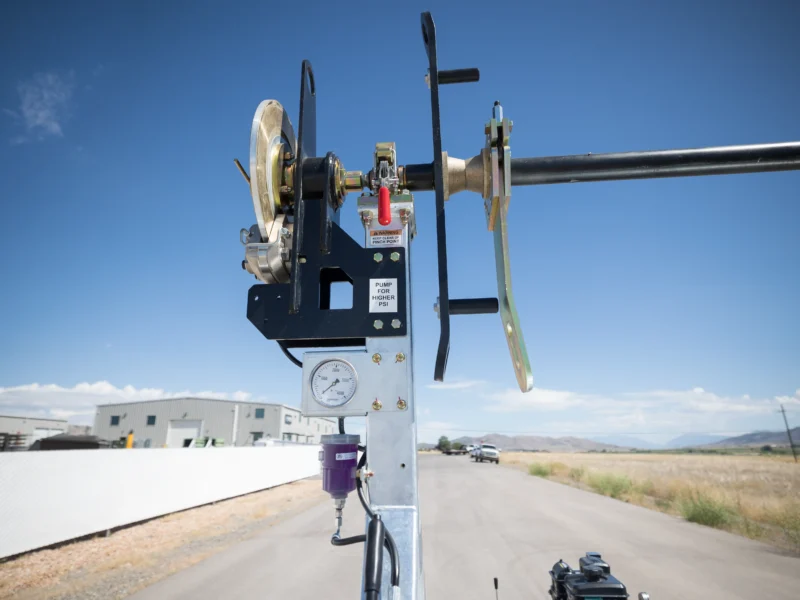

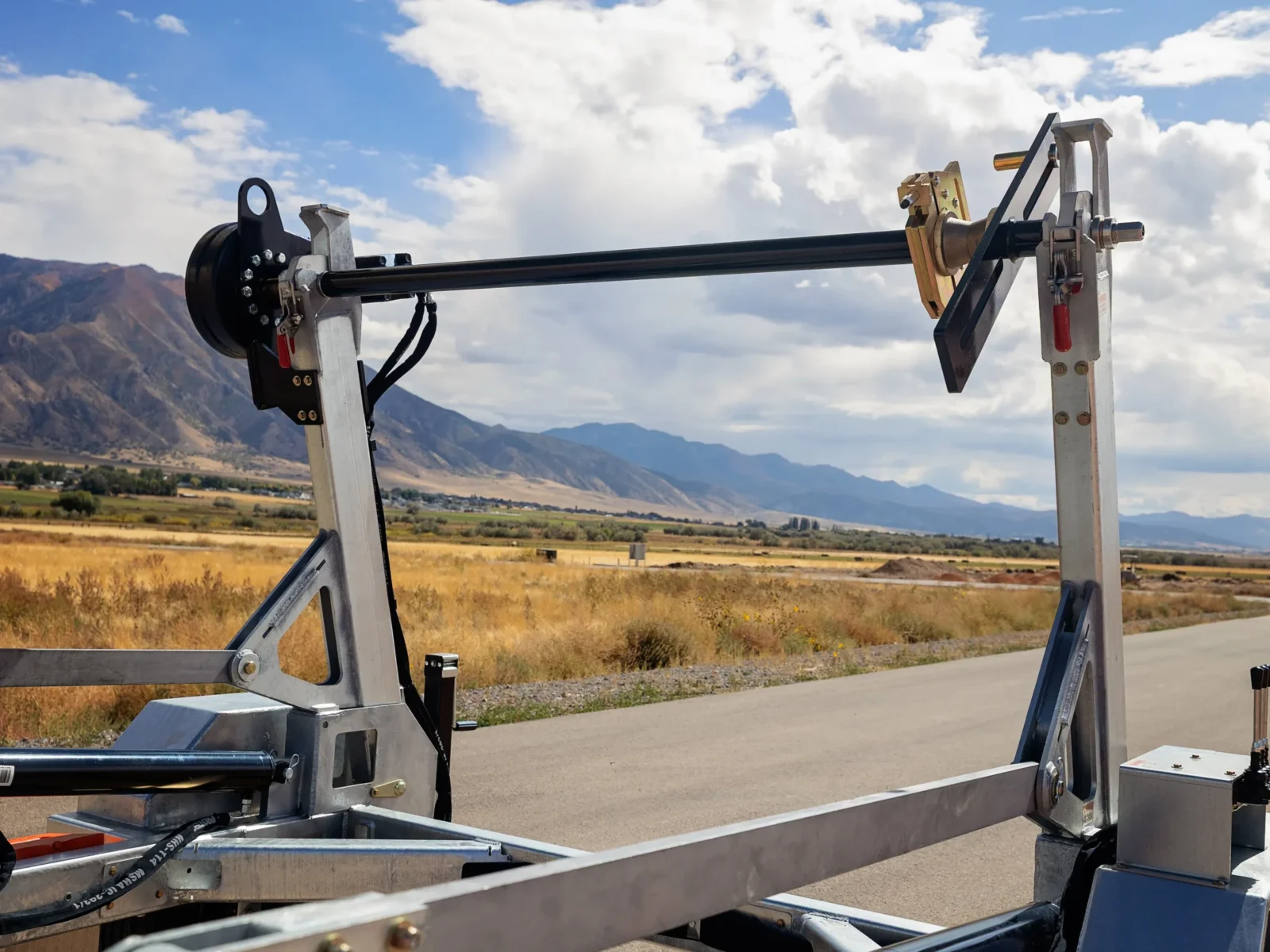

Reels are loaded onto a 2 5/8” Rally roller bar, equipped with centering cones, locking collars, and lifting eyes for secure transport. Built for heavy-duty job-site use, this trailer offers a practical solution for reel handling without the need for additional machinery.

Specs

Specifications

GVWR: 9,500 lbs
Payload Rating: 7,000 lbs
Reel Width: 65″
Reel Diameter: 120″
Trailer Length: 15′
Trailer Width: 102″
Tires: 215/75R 17.5
Roller Bar: 2 5/8″
Locking Collars: (2) with lifting eyes
Centering Cones: (2)

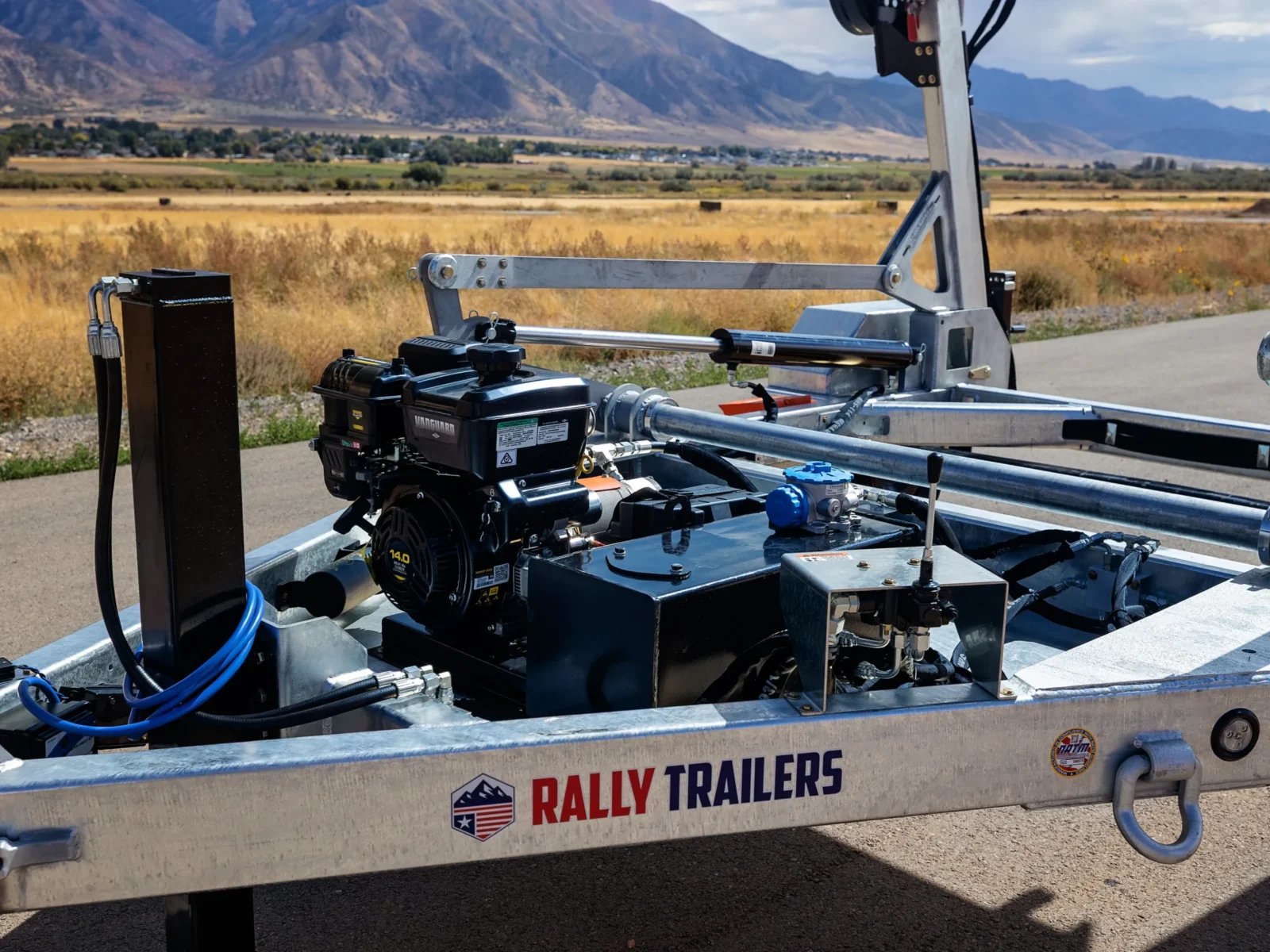

Engine: 14 HP

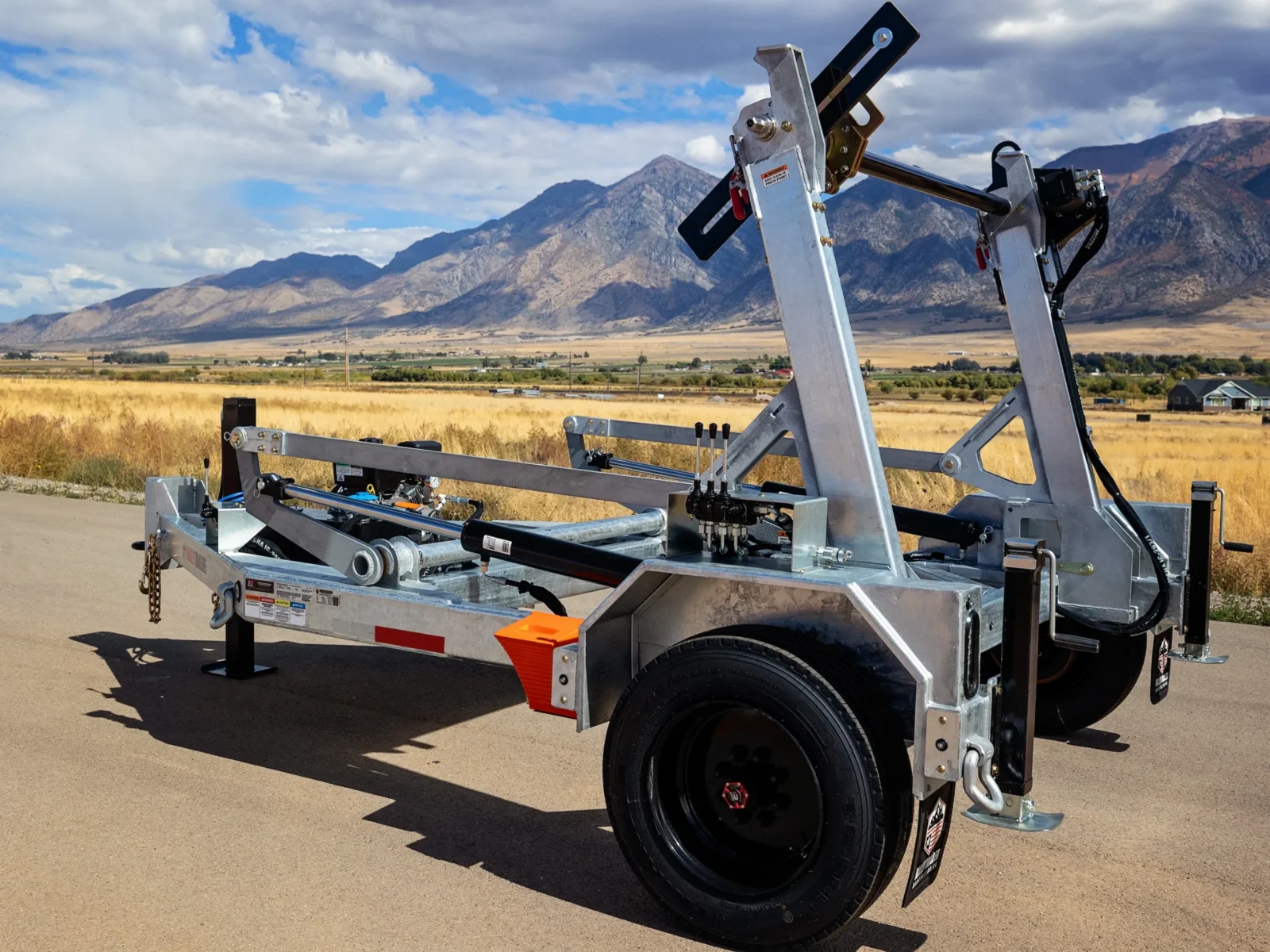

Axle: (1) 8K torsion axle with oil bath hubs
Tire Chocks: (2) with aluminum holders
LED Lights
Electric Brakes
Lifting Capacity: 7,000 lbs

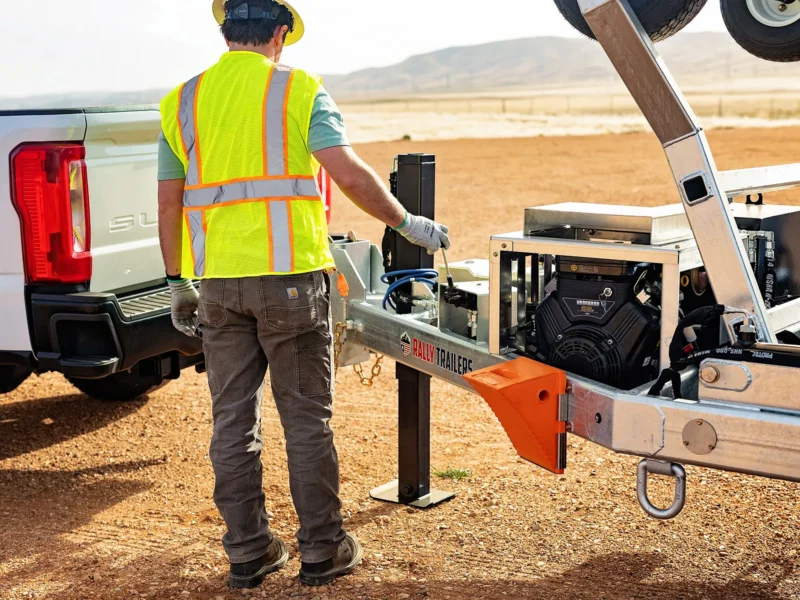

Hydraulic Jack: (1) 8K
Document Holder

Customize

Features & Options

Included

Document Holder
LED Lights
Electric Brakes
Tire Chocks
Roller Bar
Locking Collars
Centering Cones
8K Torsion Axle with Oil Bath Hubs
Hydraulic Jack
14 HP Power Unit
Lifting Capacity: 7K

Available Add-Ons

Color Options
Tension Brake
Gear-Driven Rewinder
Hydraulic Jack
Auxiliary Hydraulic Circuit
Tandem Axle

Hydraulic Jack
Tandem Axle
Gear-Driven Rewinder
Tension Brake
Auxiliary Hydraulic Circuit
Custom Colors

Match your trailer to your brand with custom color options. Stand out on the job site with a clean, professional look built to represent your company.
