6 Position Electric Hydraulic

EHRB-6P

GVWR: 9,140 lbs.
Payload: 8,000 lbs.
Reel Width: 60"
Reel Diameter: 120"

Overview

About the 6 Position Electric Hydraulic

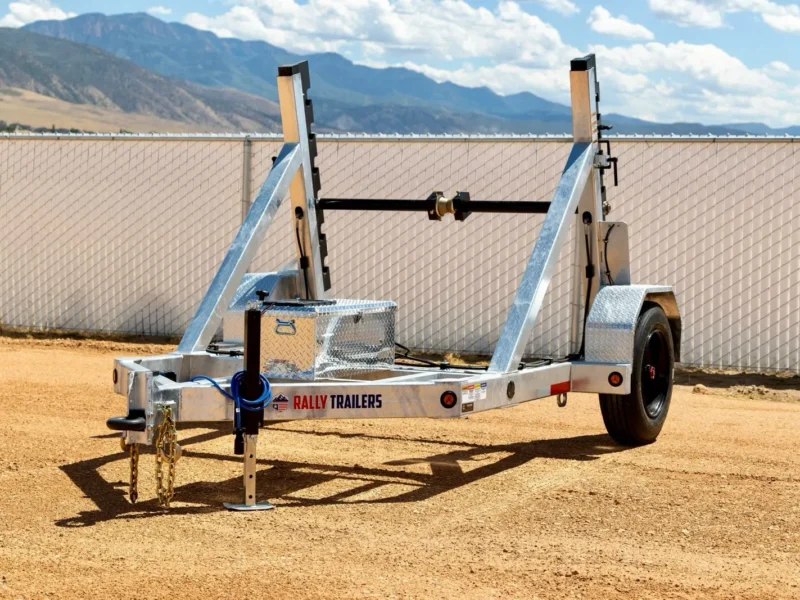

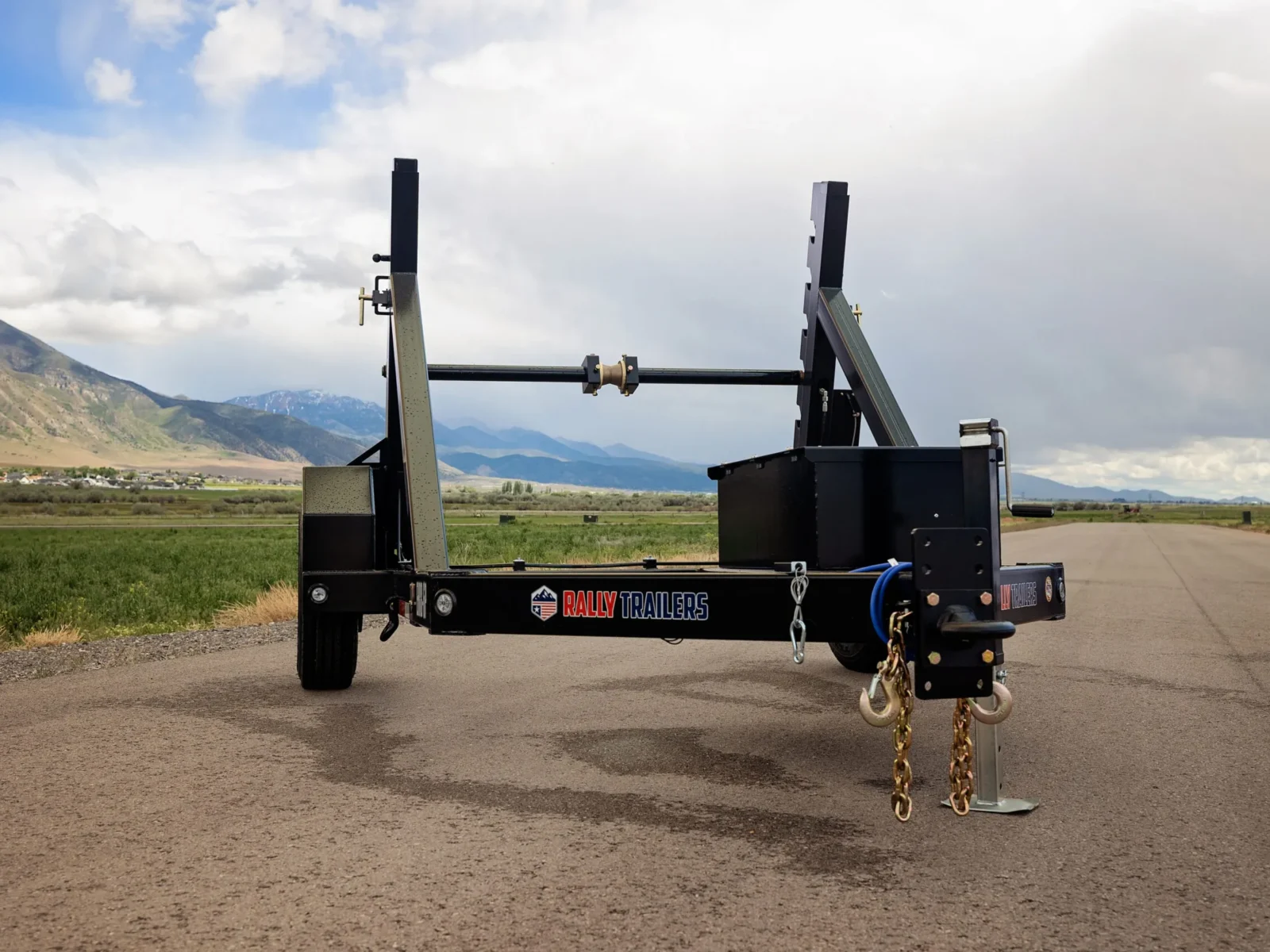

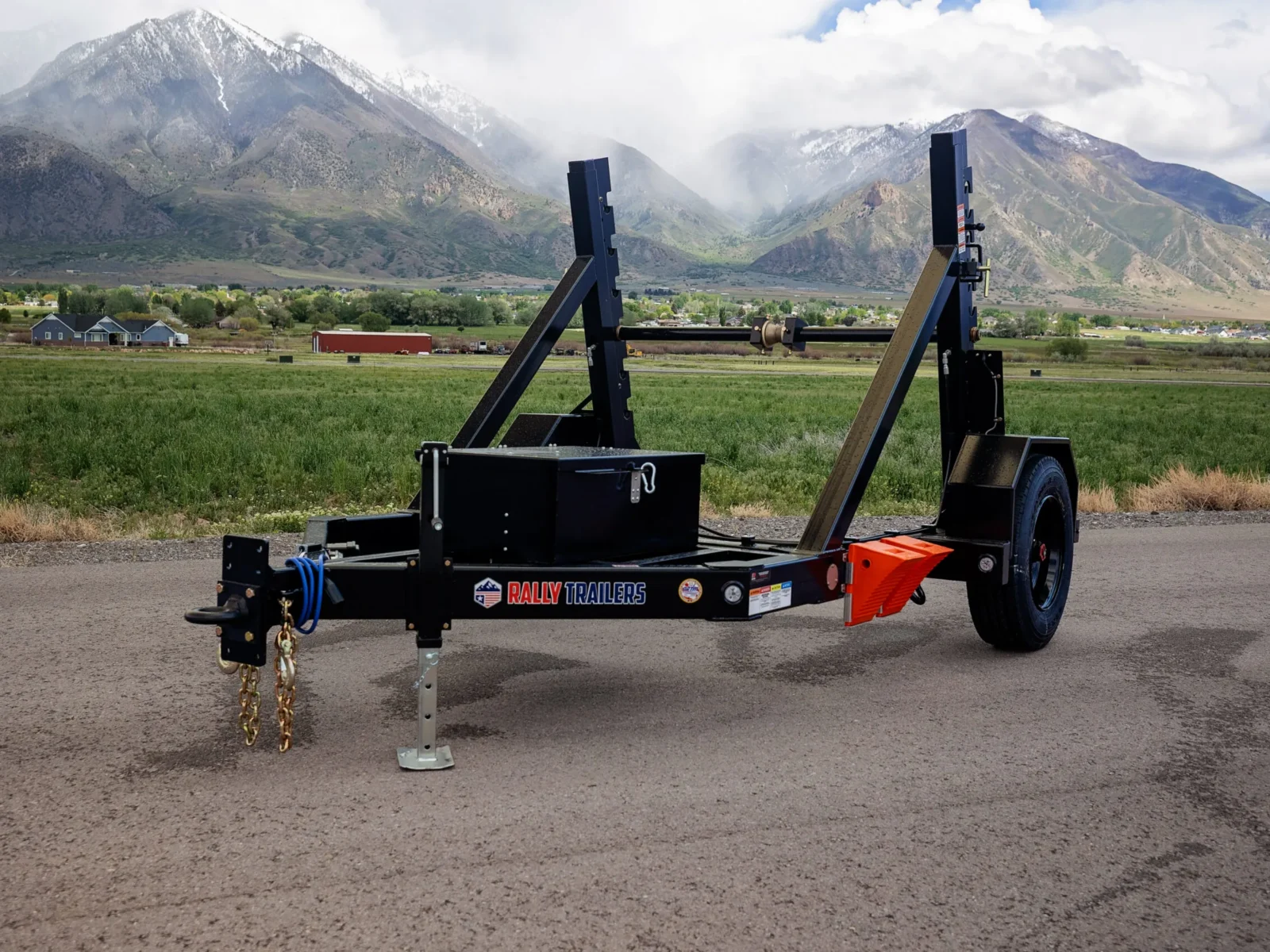

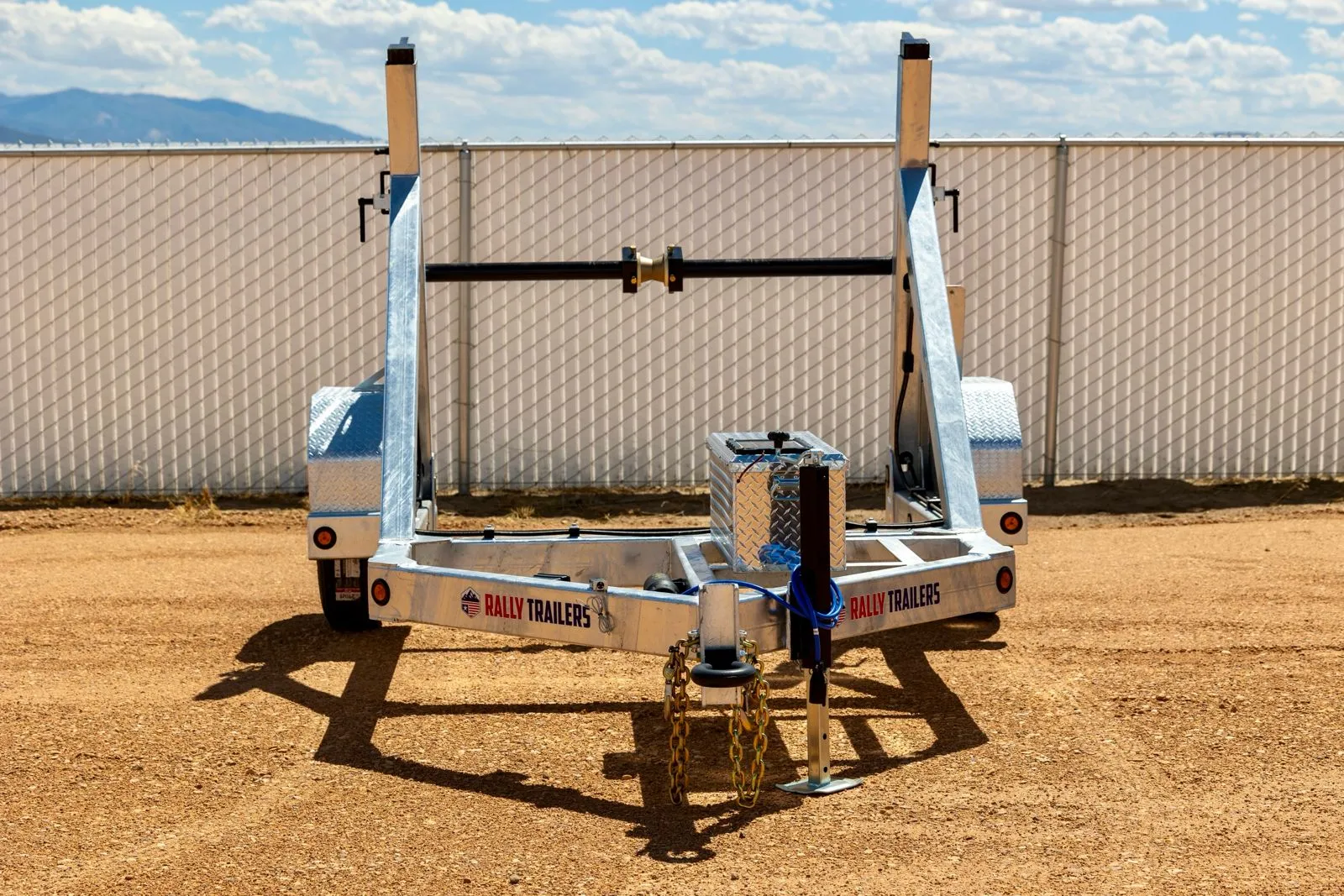

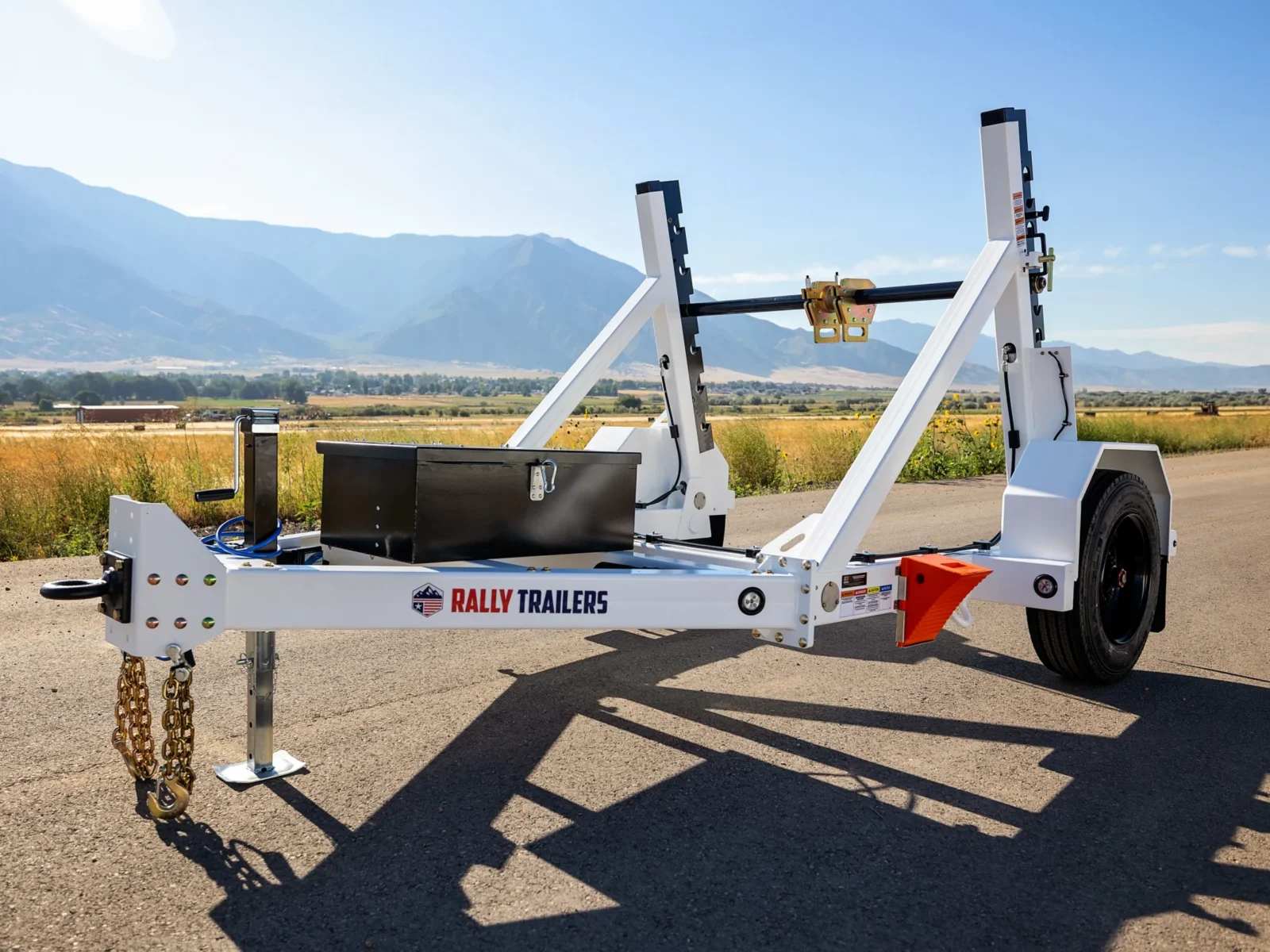

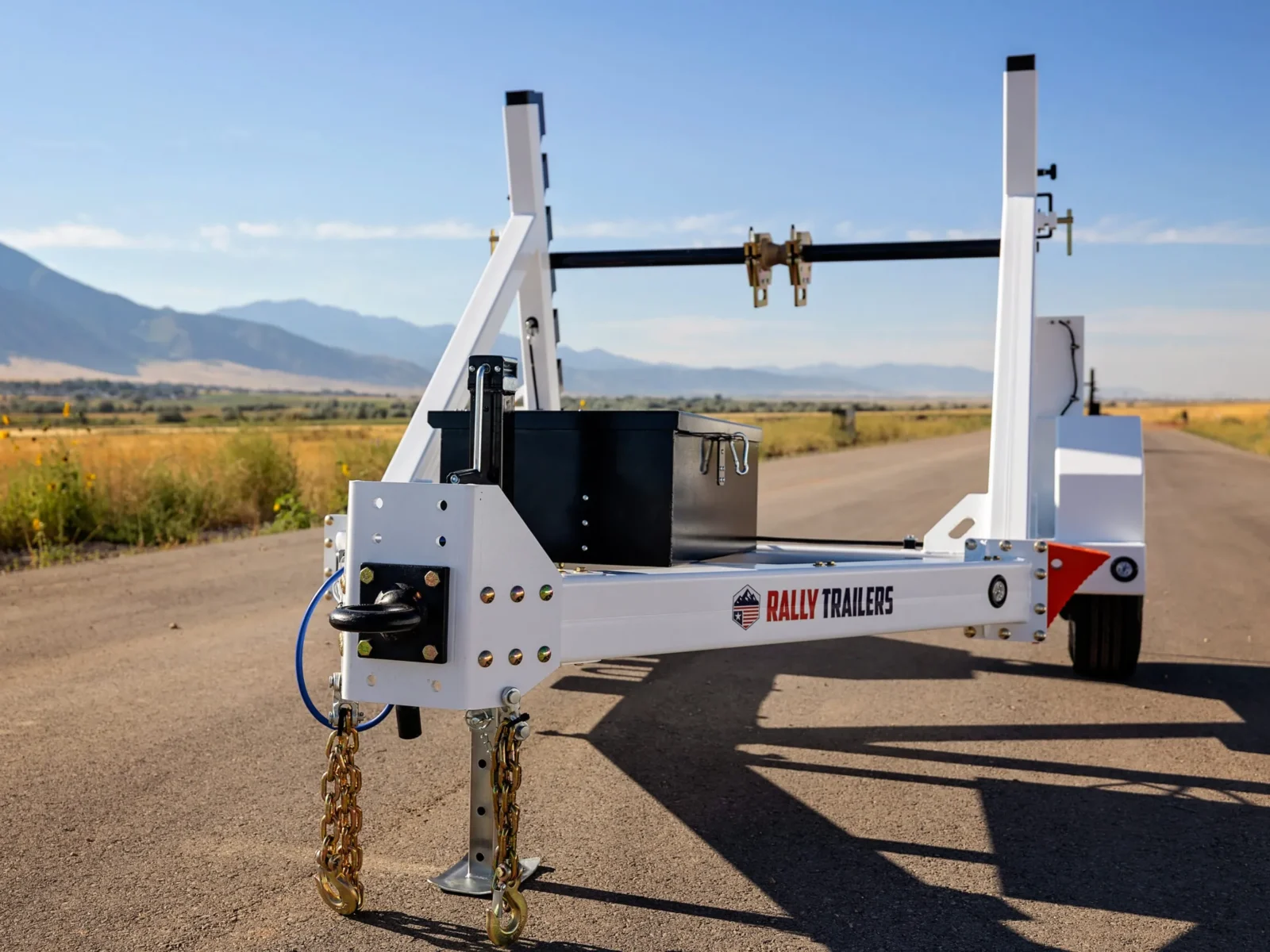

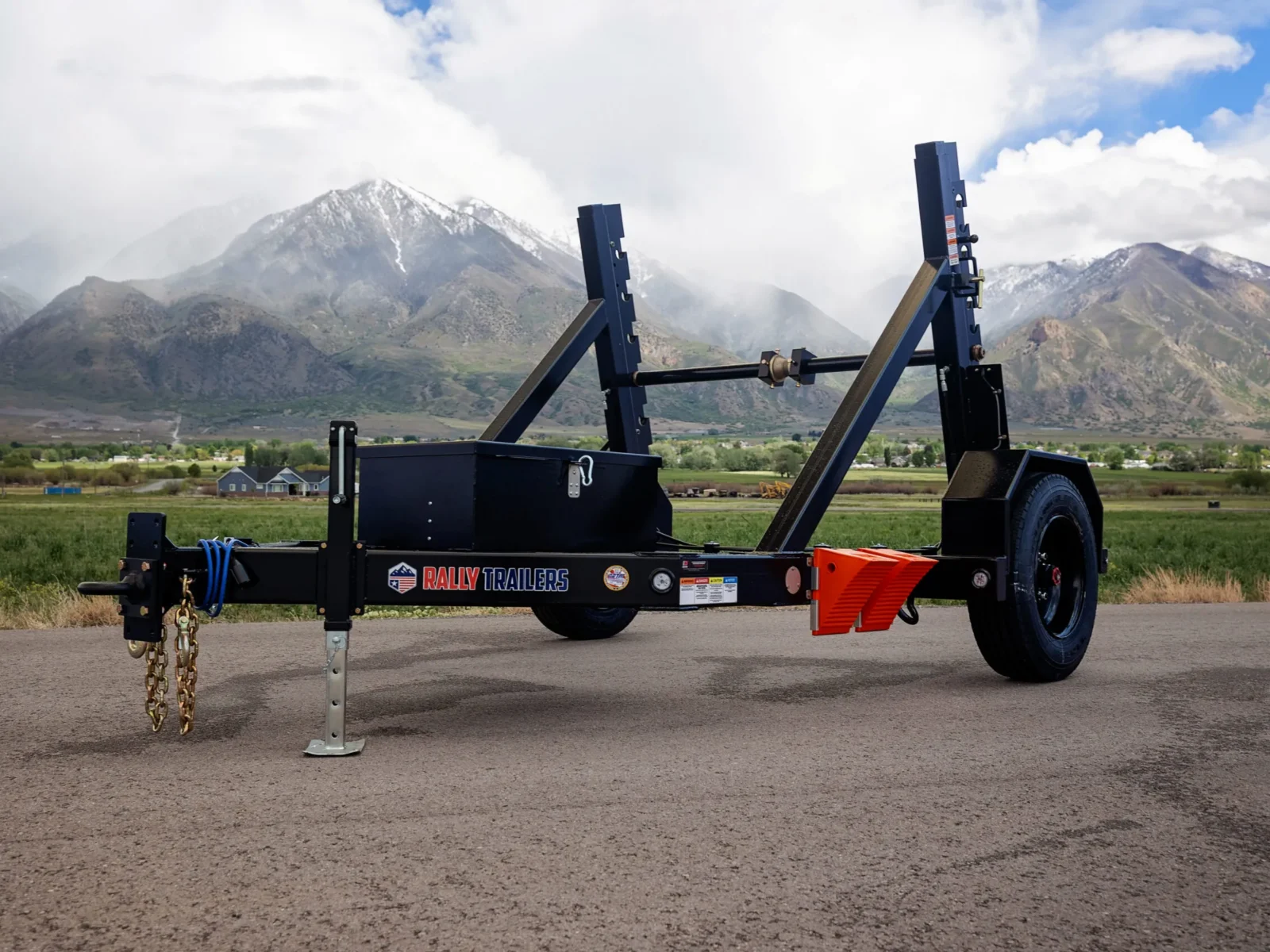

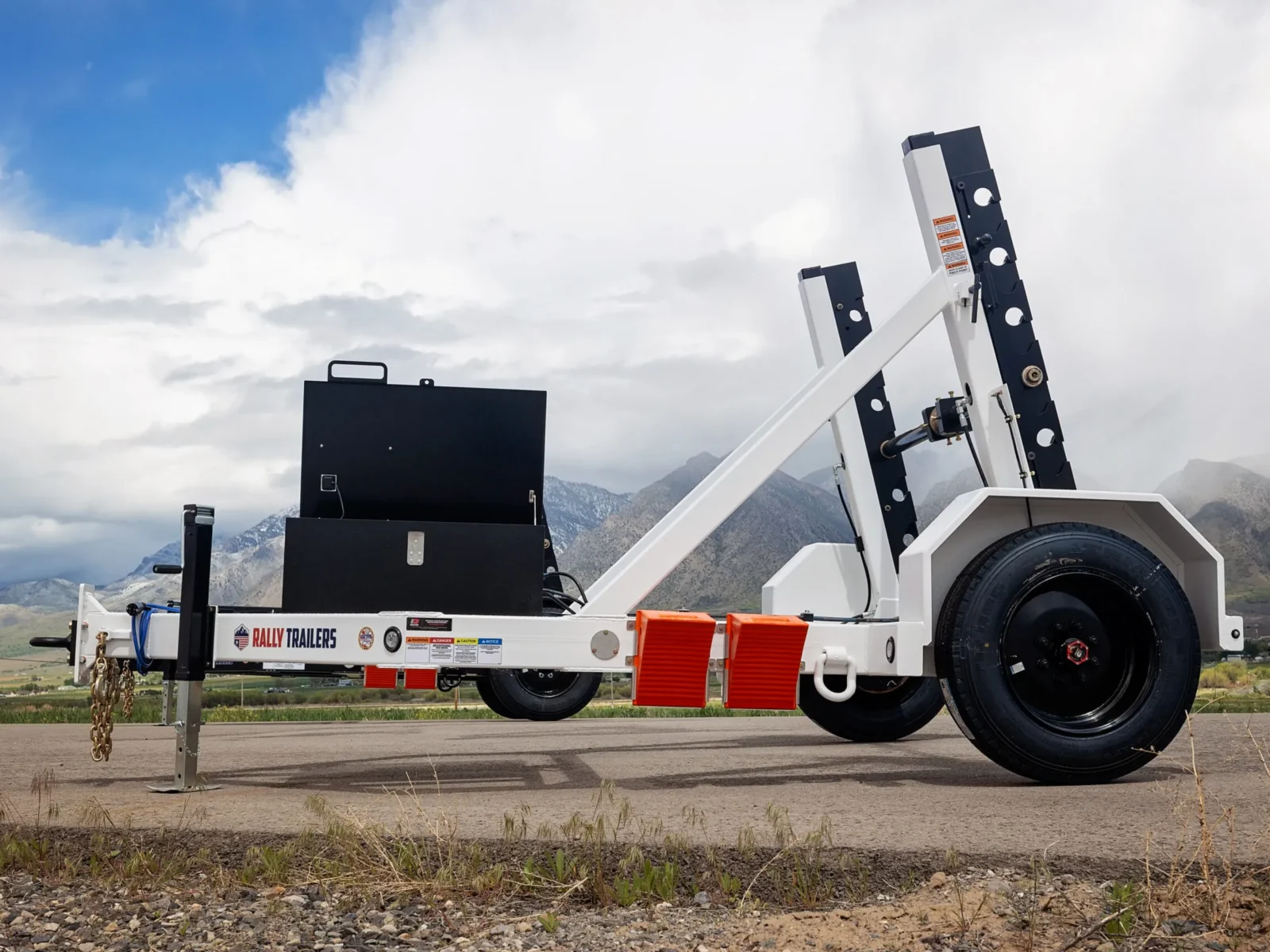

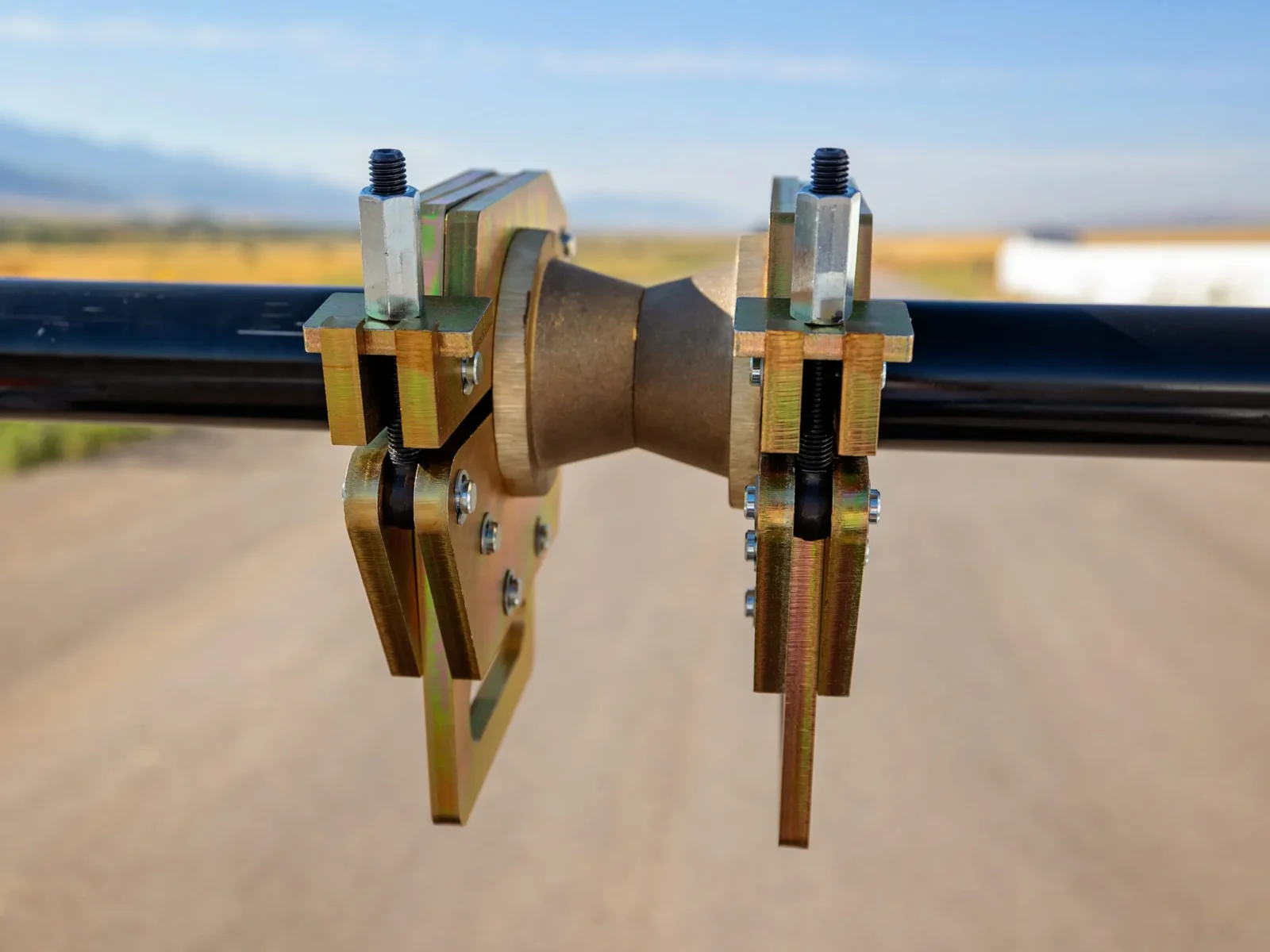

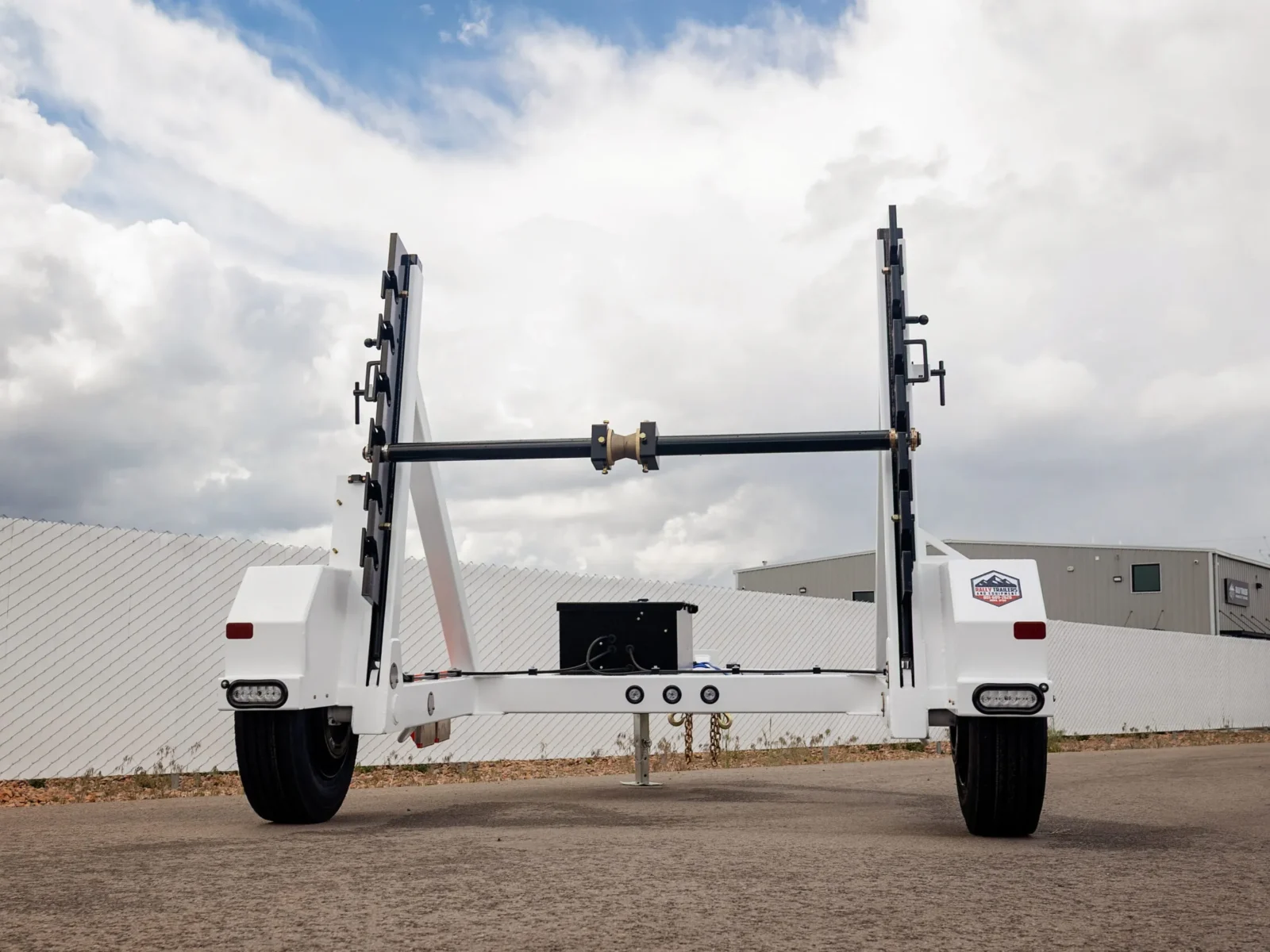

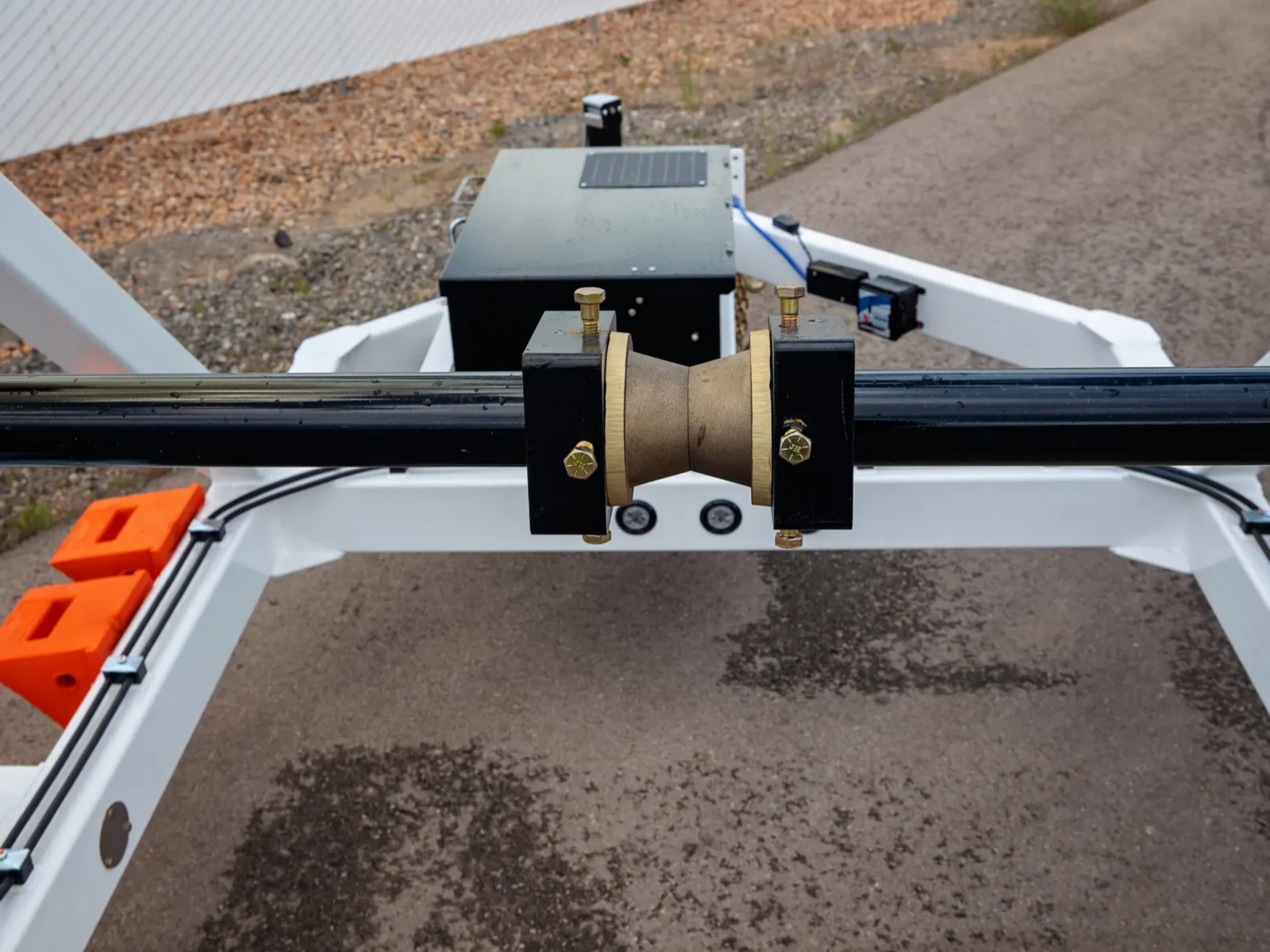

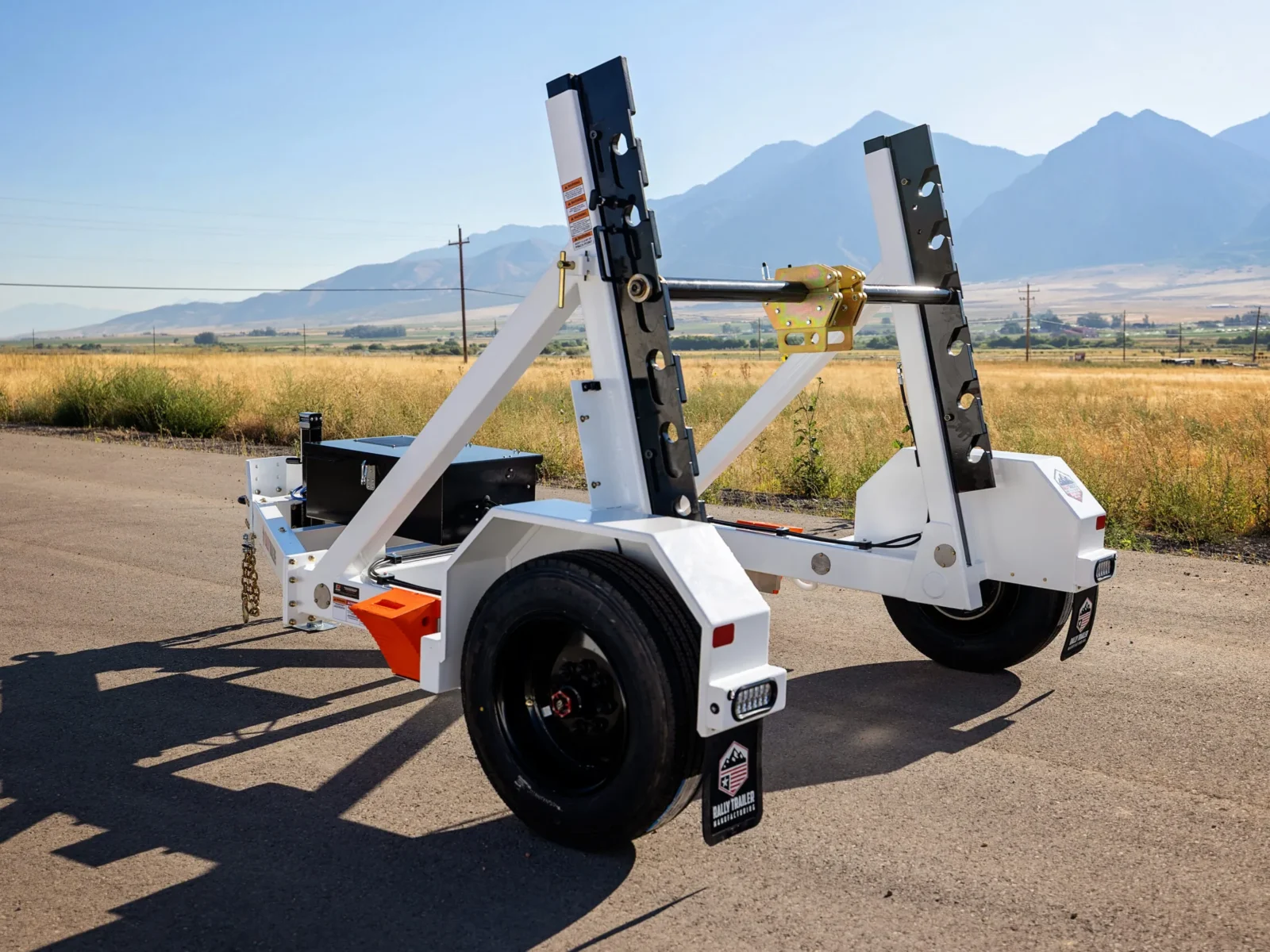

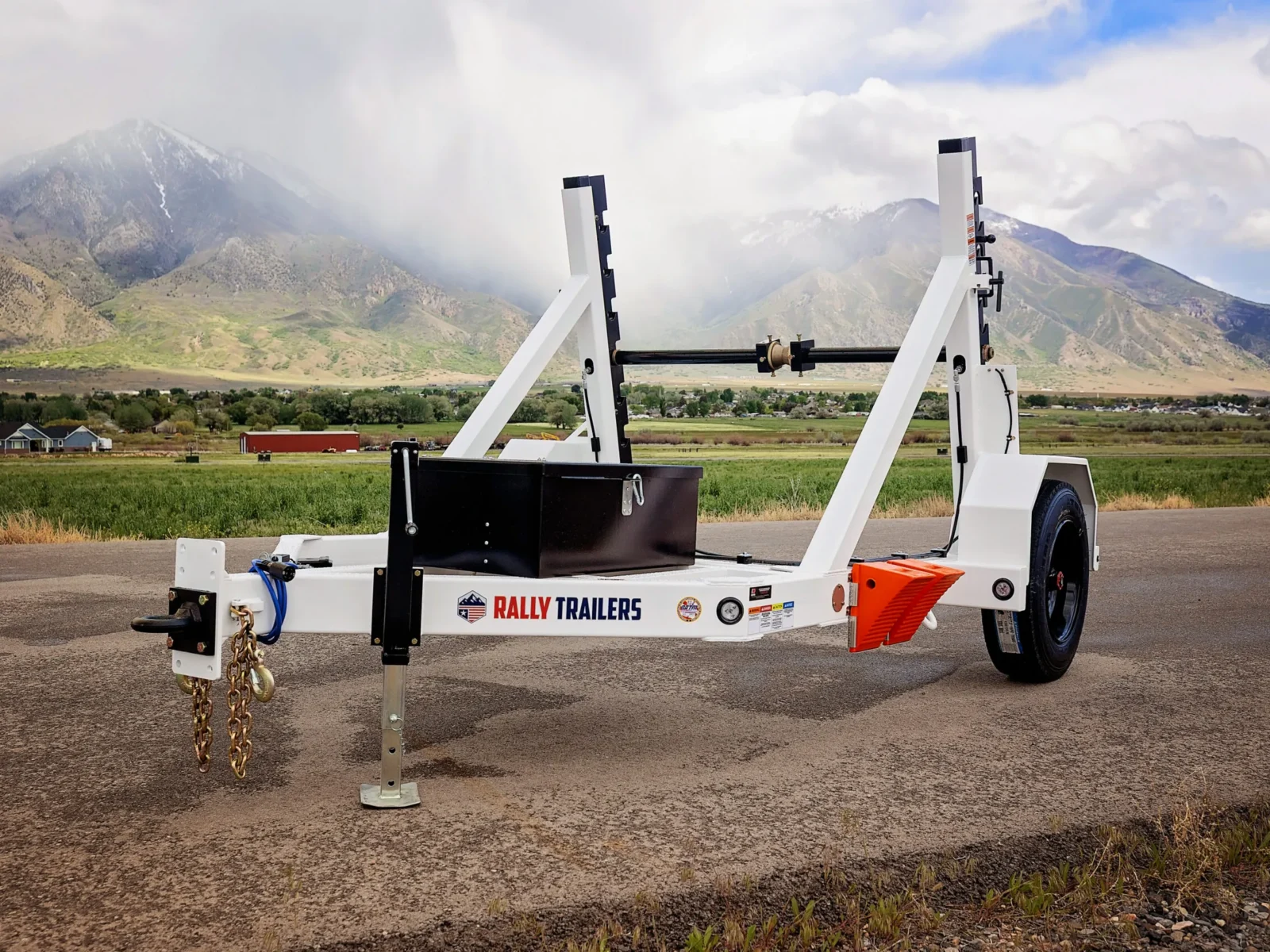

The 6 Position Electric Hydraulic Reel Trailer is designed to accommodate cable and conduit reels ranging in diameter from 10” to 120”. It’s equipped with an electric hydraulic pump that raises and lowers the arbors, allowing a single operator to load and unload reels with reduced physical effort. This trailer includes a Rally roller bar with bronze bearings to support controlled, consistent payoff of conduit and cable. Built for heavy-duty, job-site use, this trailer provides a practical, efficient solution for handling reels while improving operational efficiency and safety.

Selected White

Specs

Specifications

GVWR: 9,140 lbs
Payload Rating: 8,000 lbs
Reel Width: 60″
Reel Diameter: 120″
Trailer Length: 13′
Trailer Width: 98″

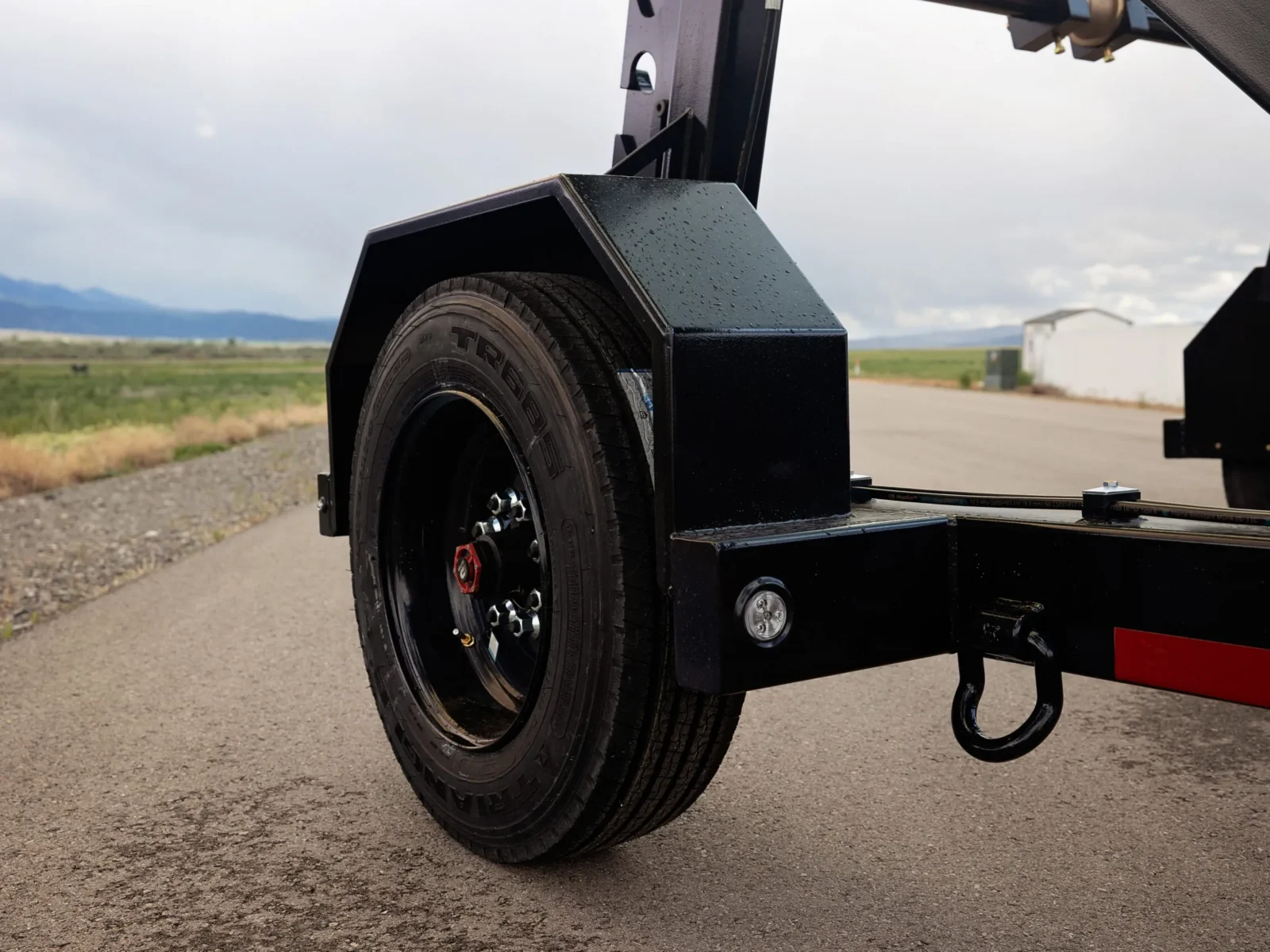

Tires: 215/75R 17.5

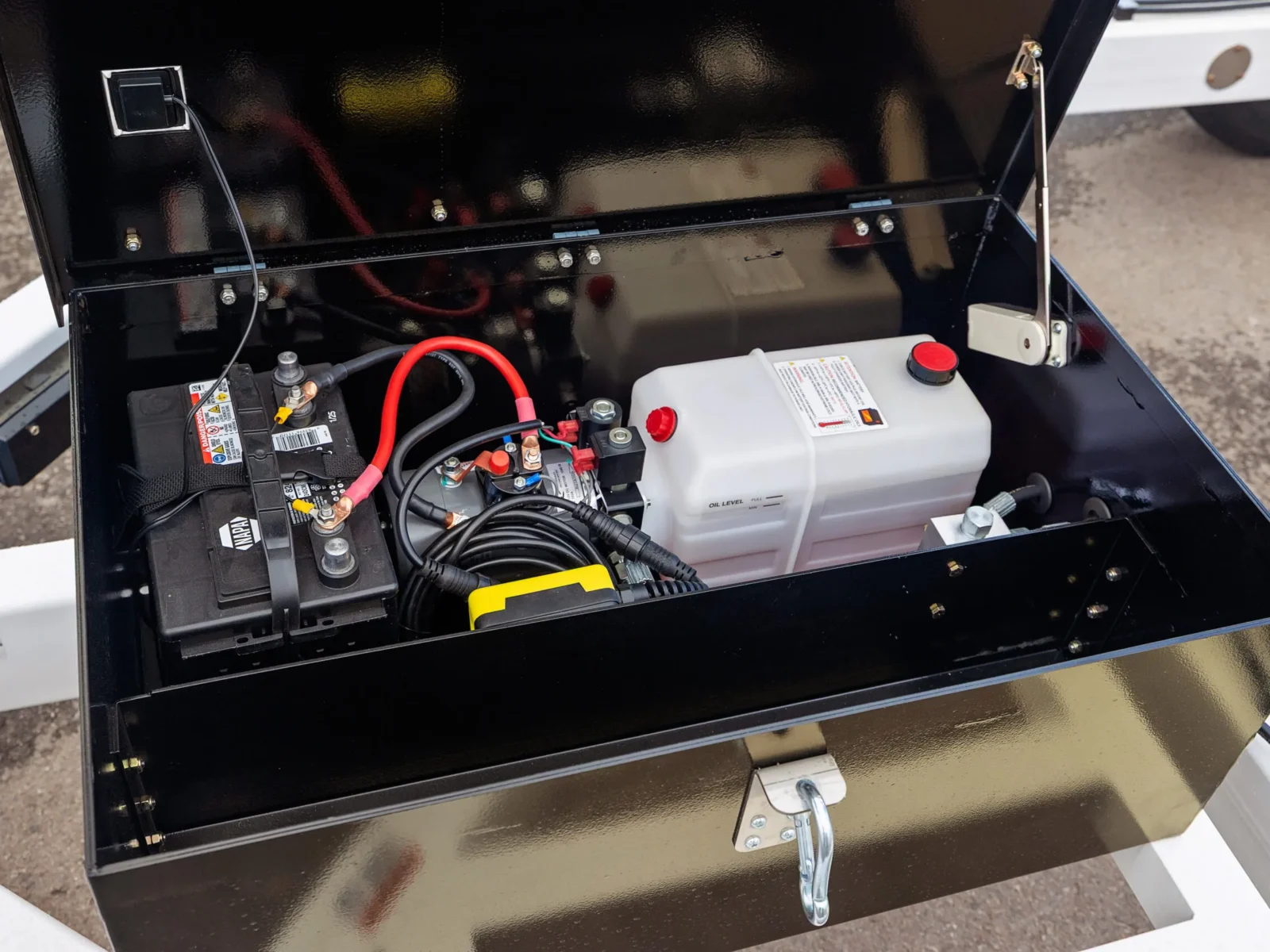

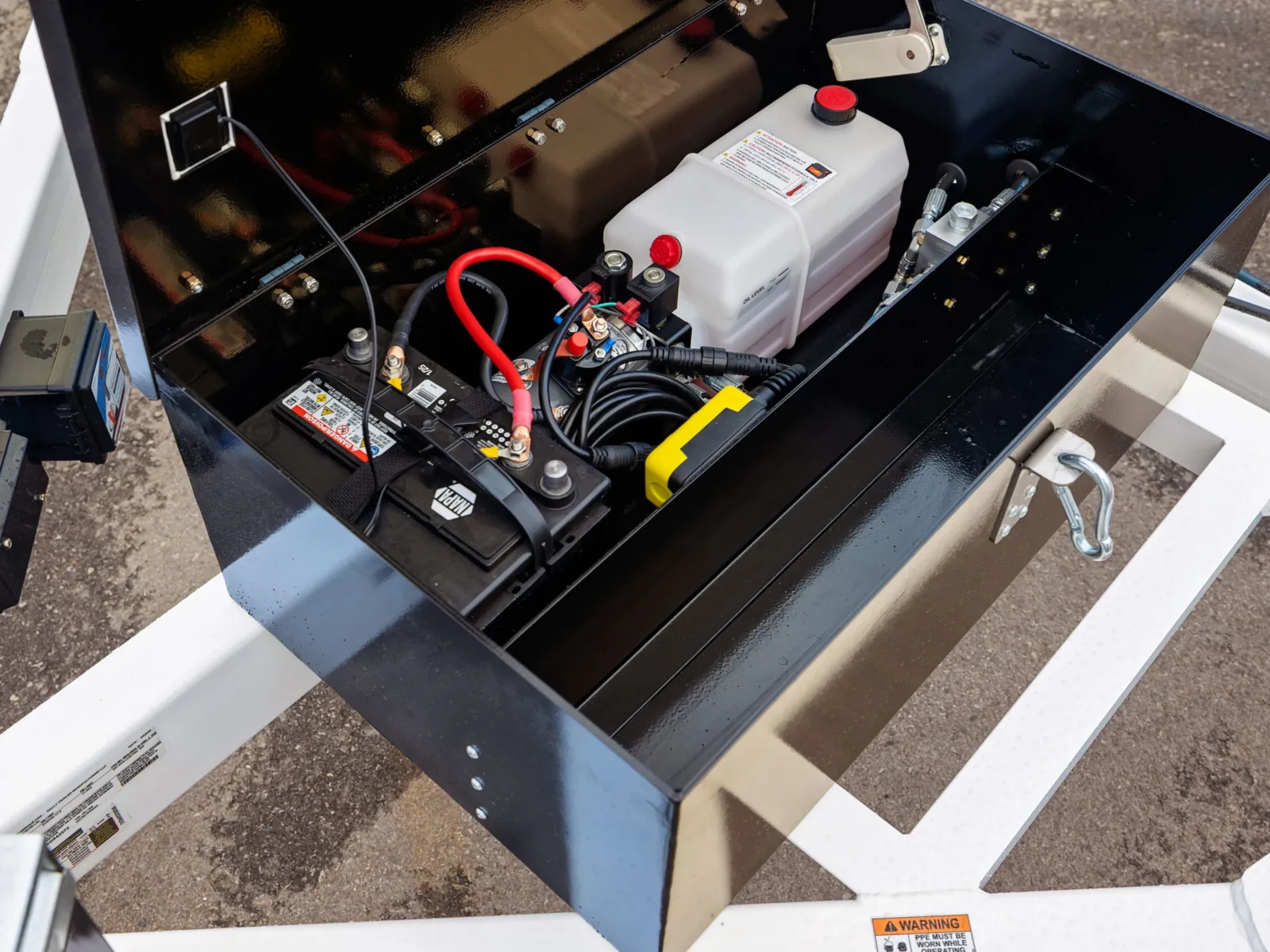

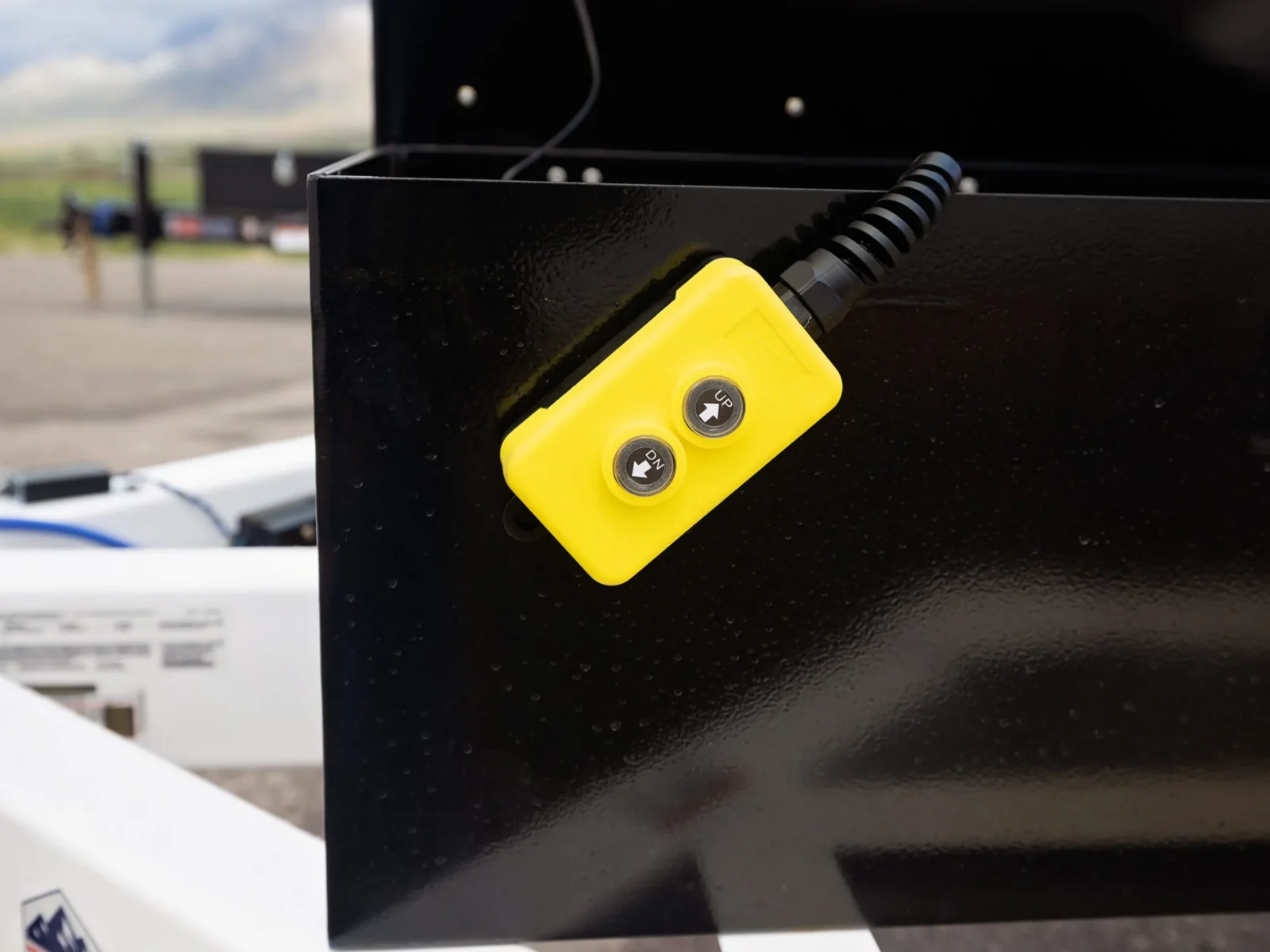

Electric Over Hydraulic Pump: Power up / power down

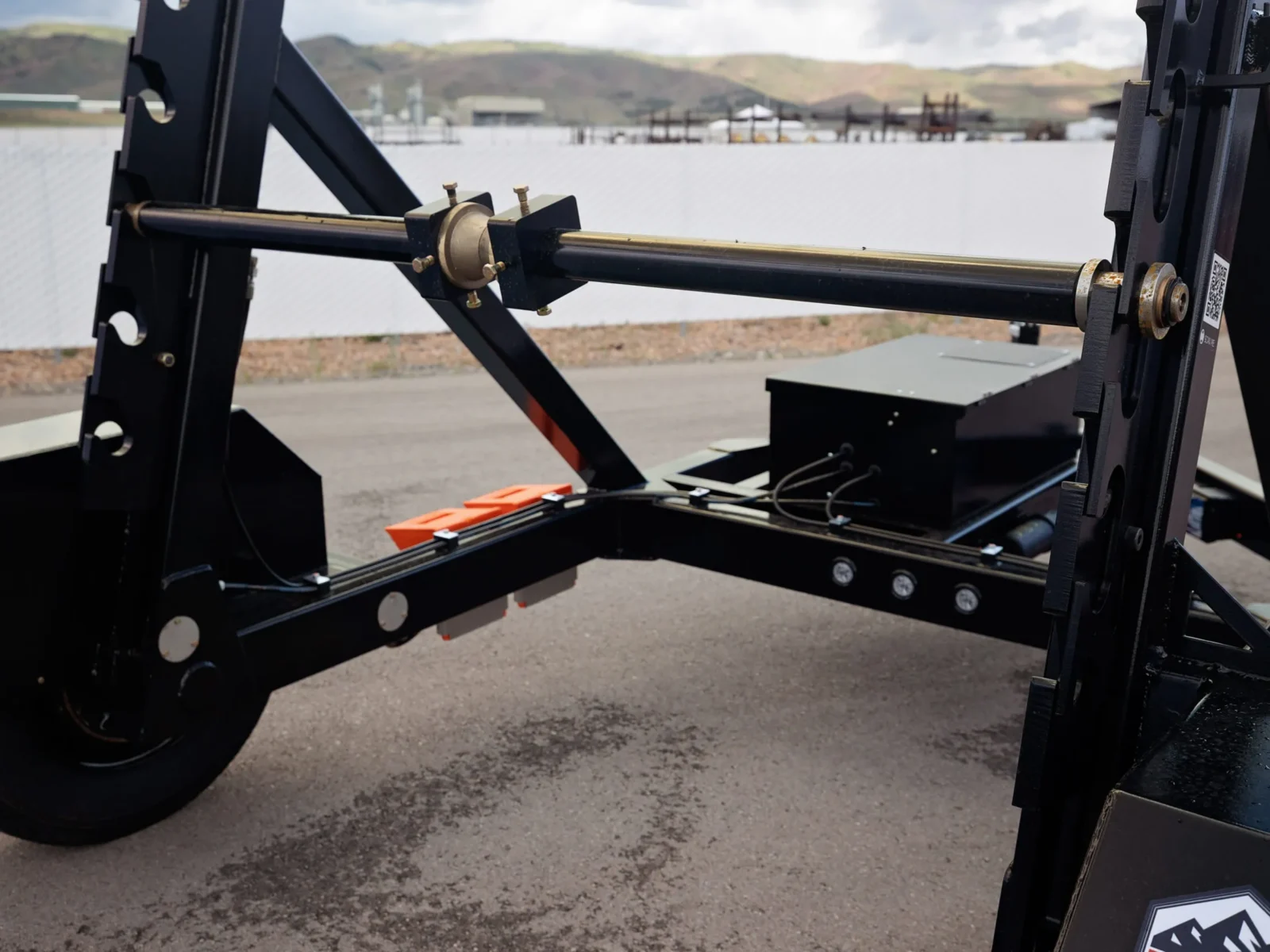

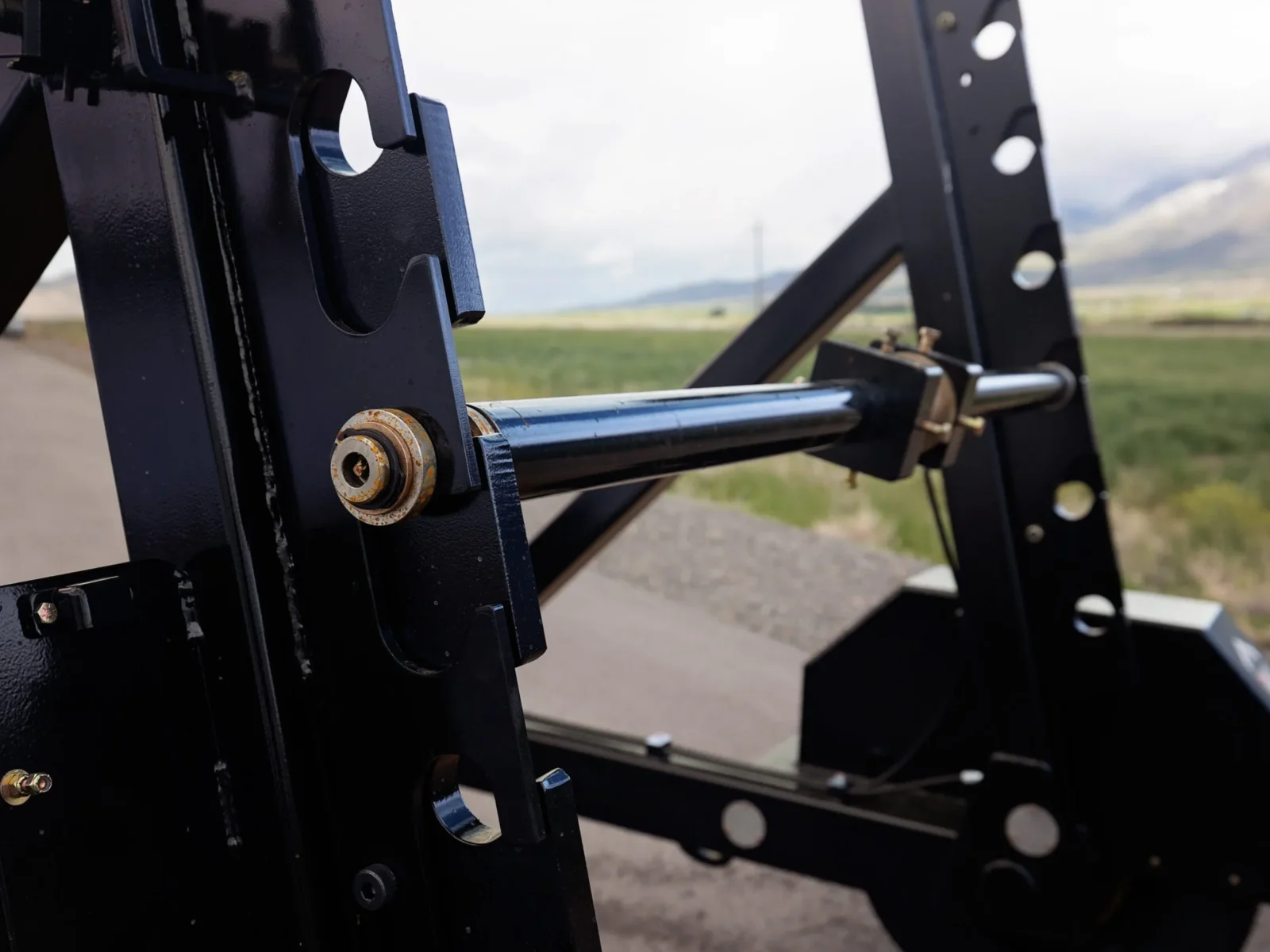

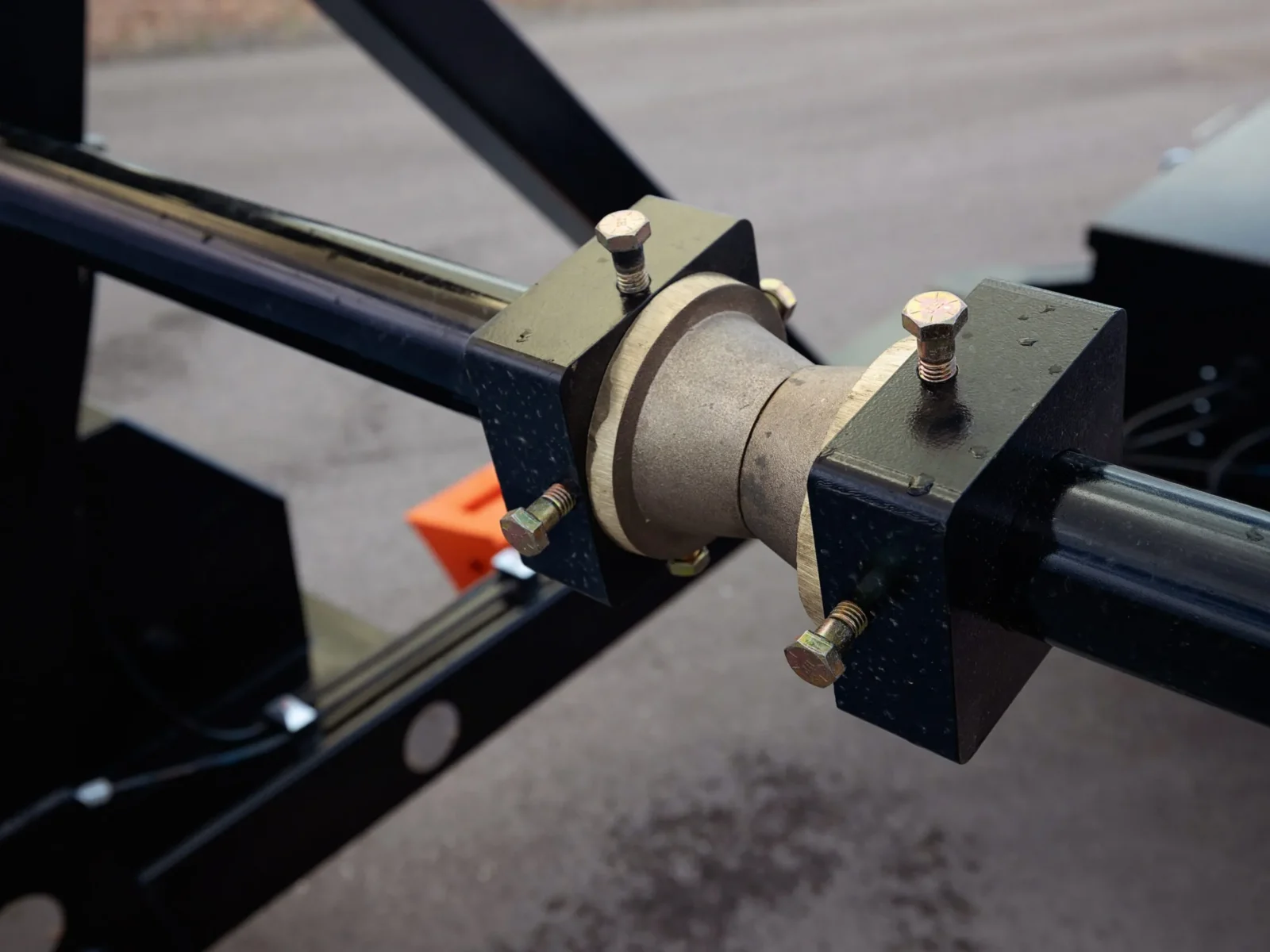

Roller Bar: 2 5/8″

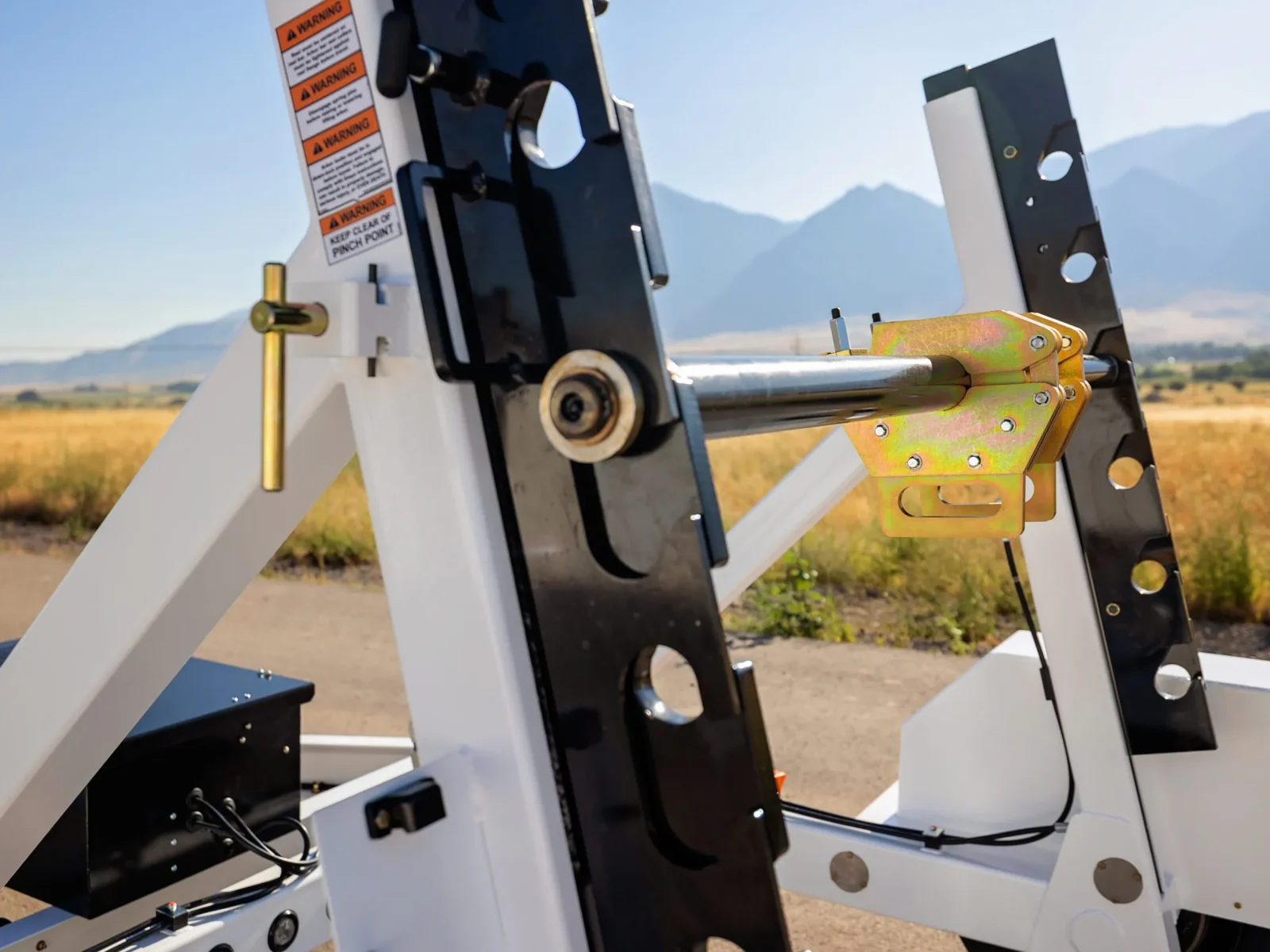

Locking Collars: (2)
Centering Cones: (2)

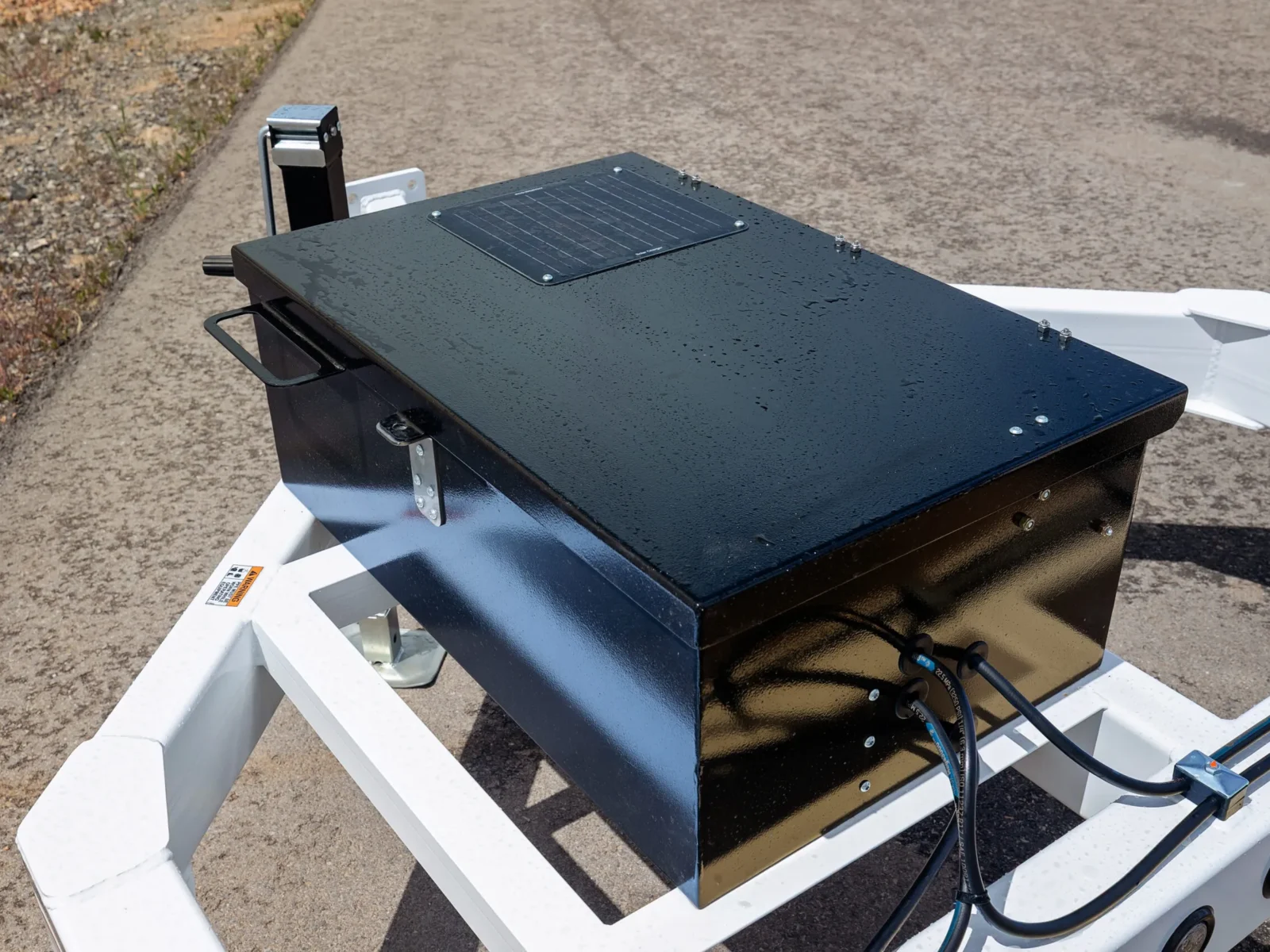

Toolbox: Included
Lifting Capacity: 8,000 lbs
Pinless Locking System

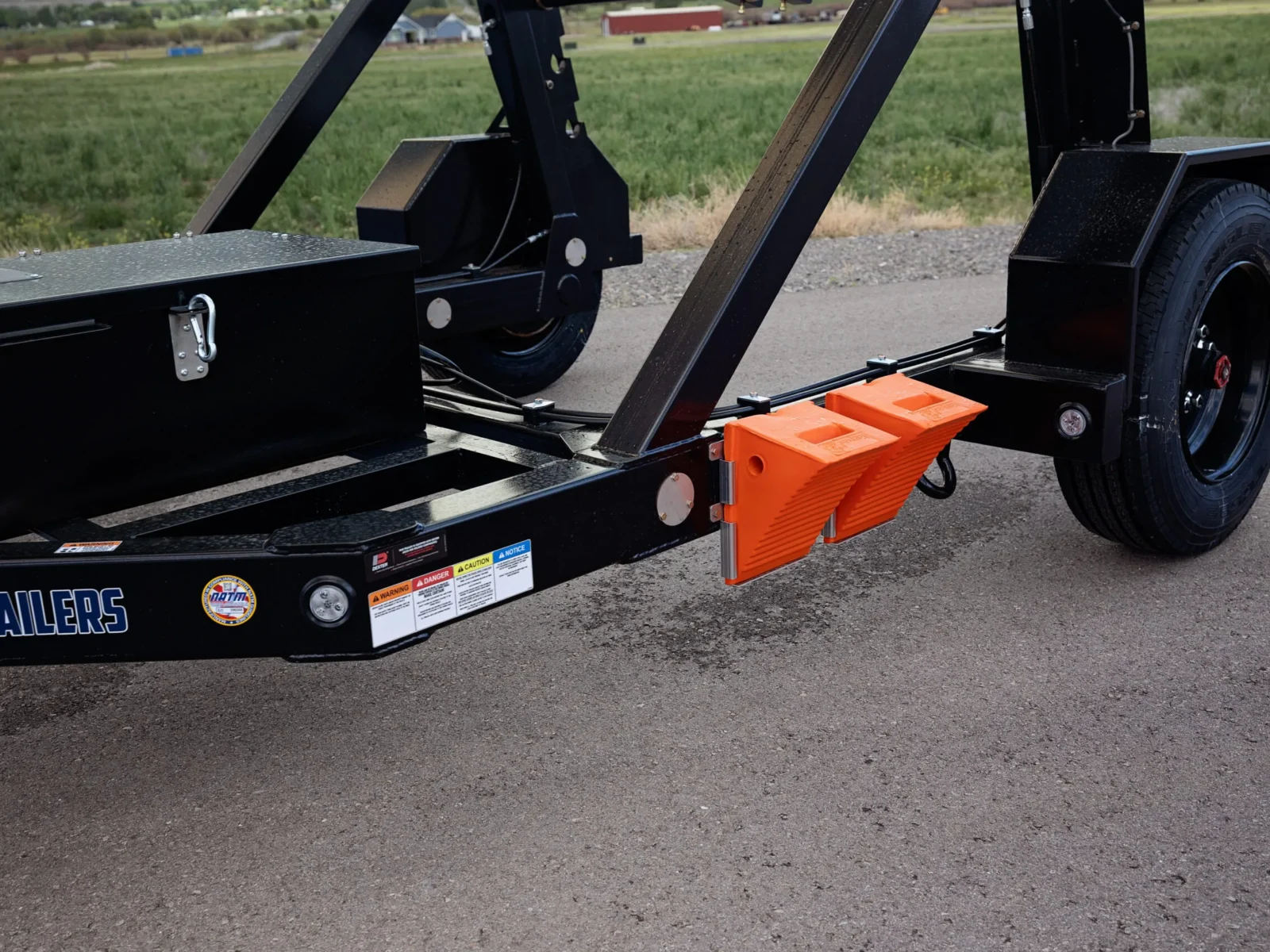

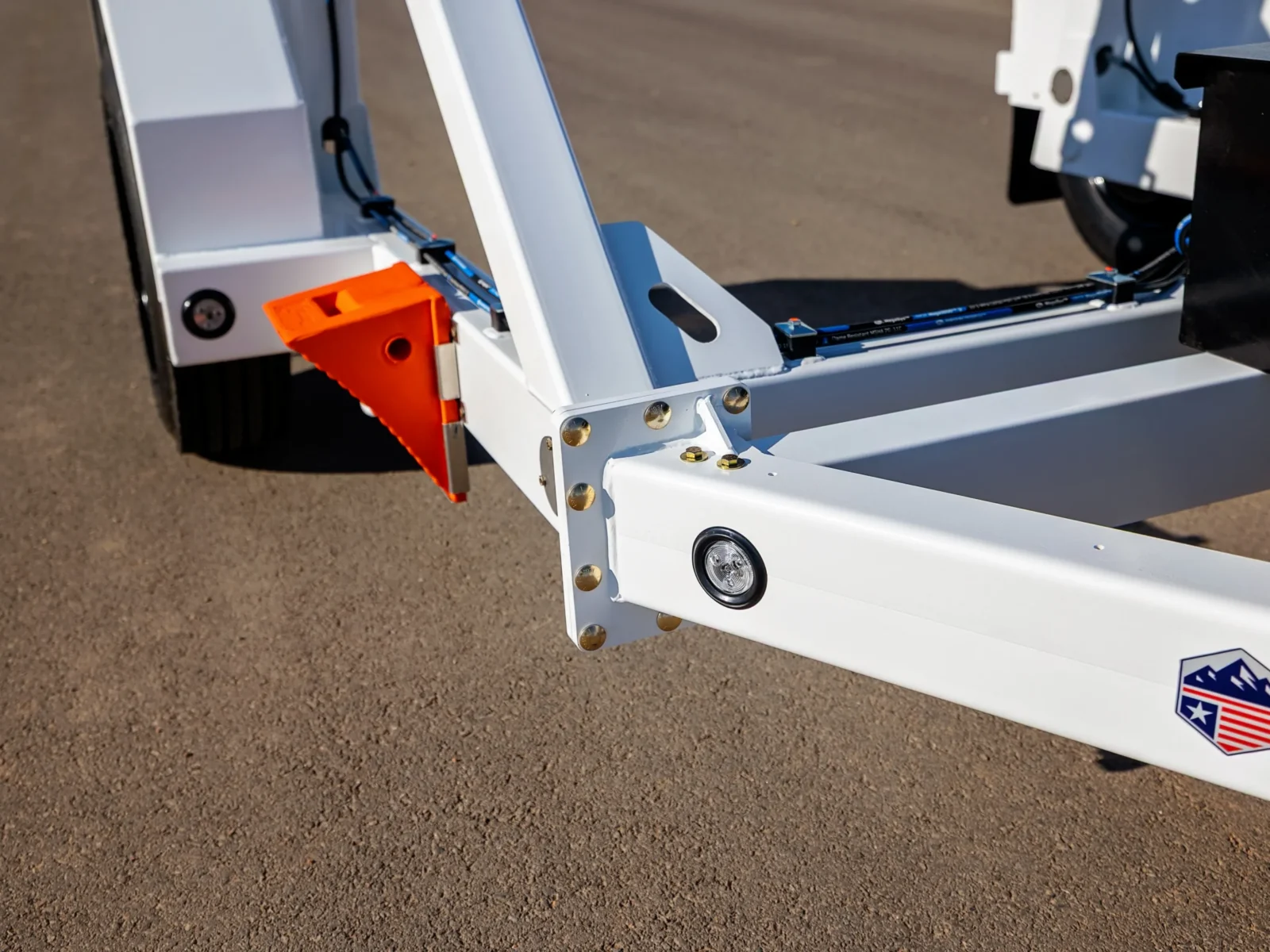

Tire Chocks: (2) with aluminum holders
LED Lights
Electric Brakes

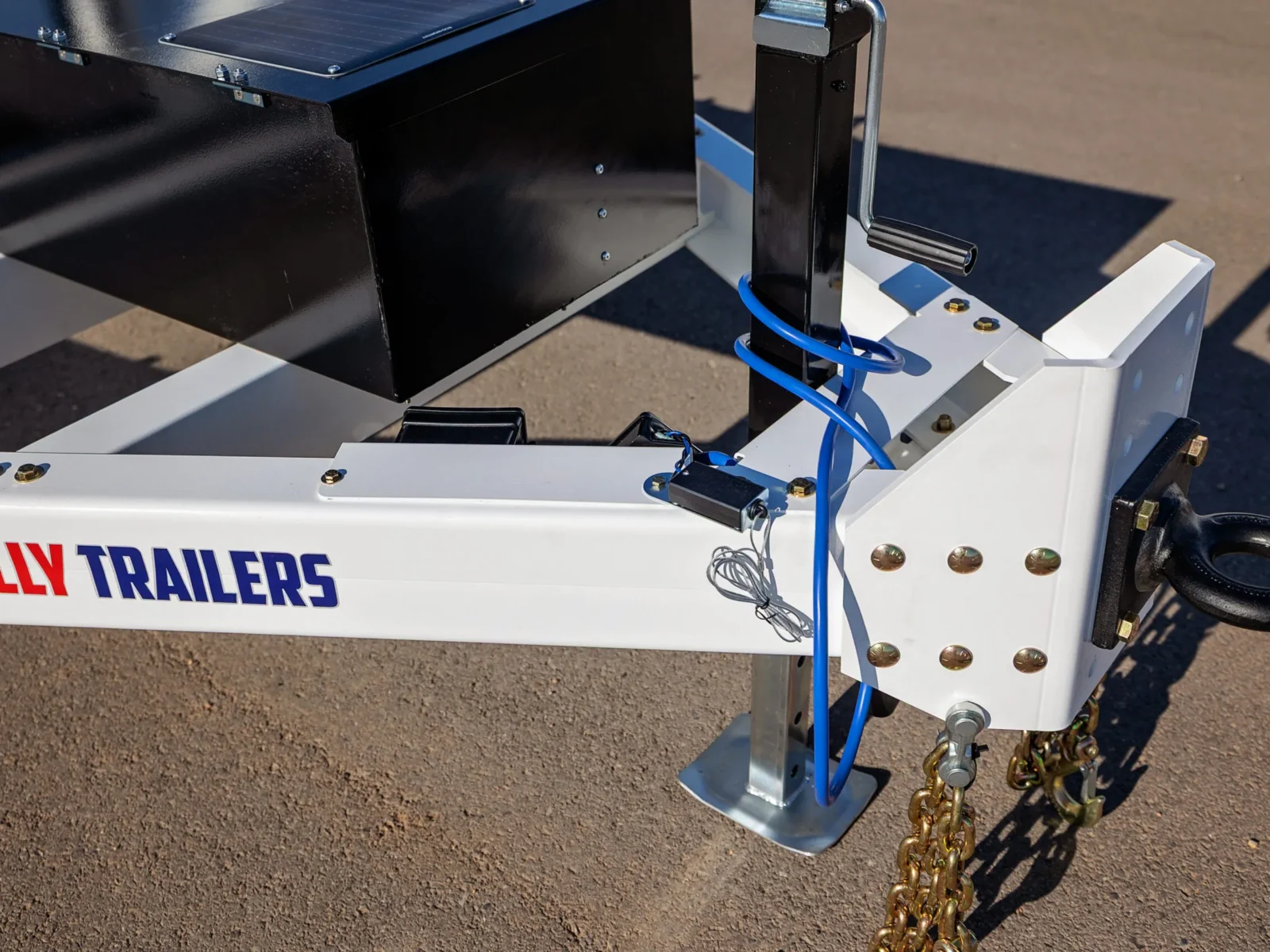

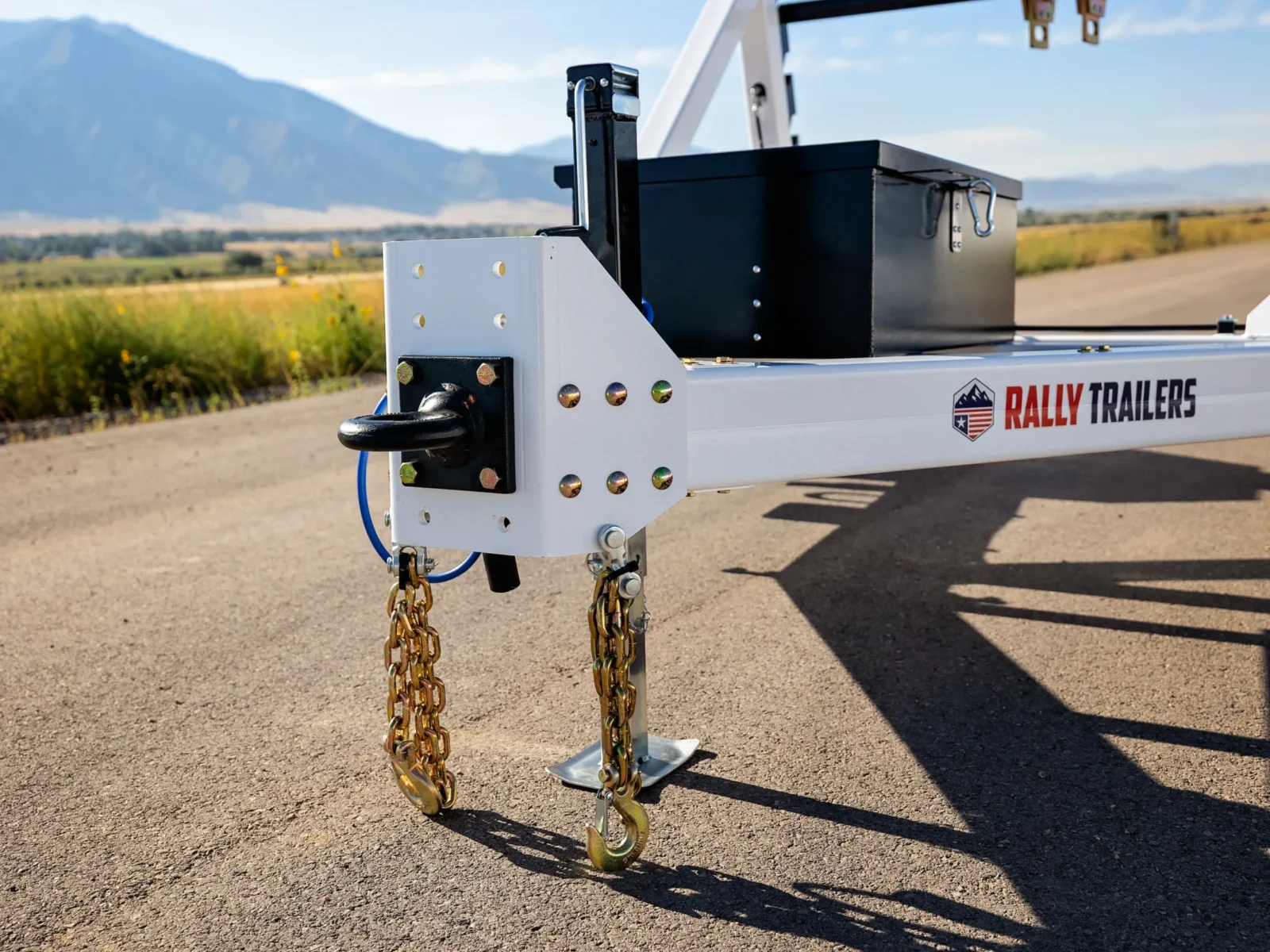

Pintle Hitch

Customize

Features & Options

Included

LED Lights
Electric Brakes
Pintle Hitch
Tire Chocks
Locking Collars
Centering Cones
Toolbox
Pinless Locking System

Available Add-Ons

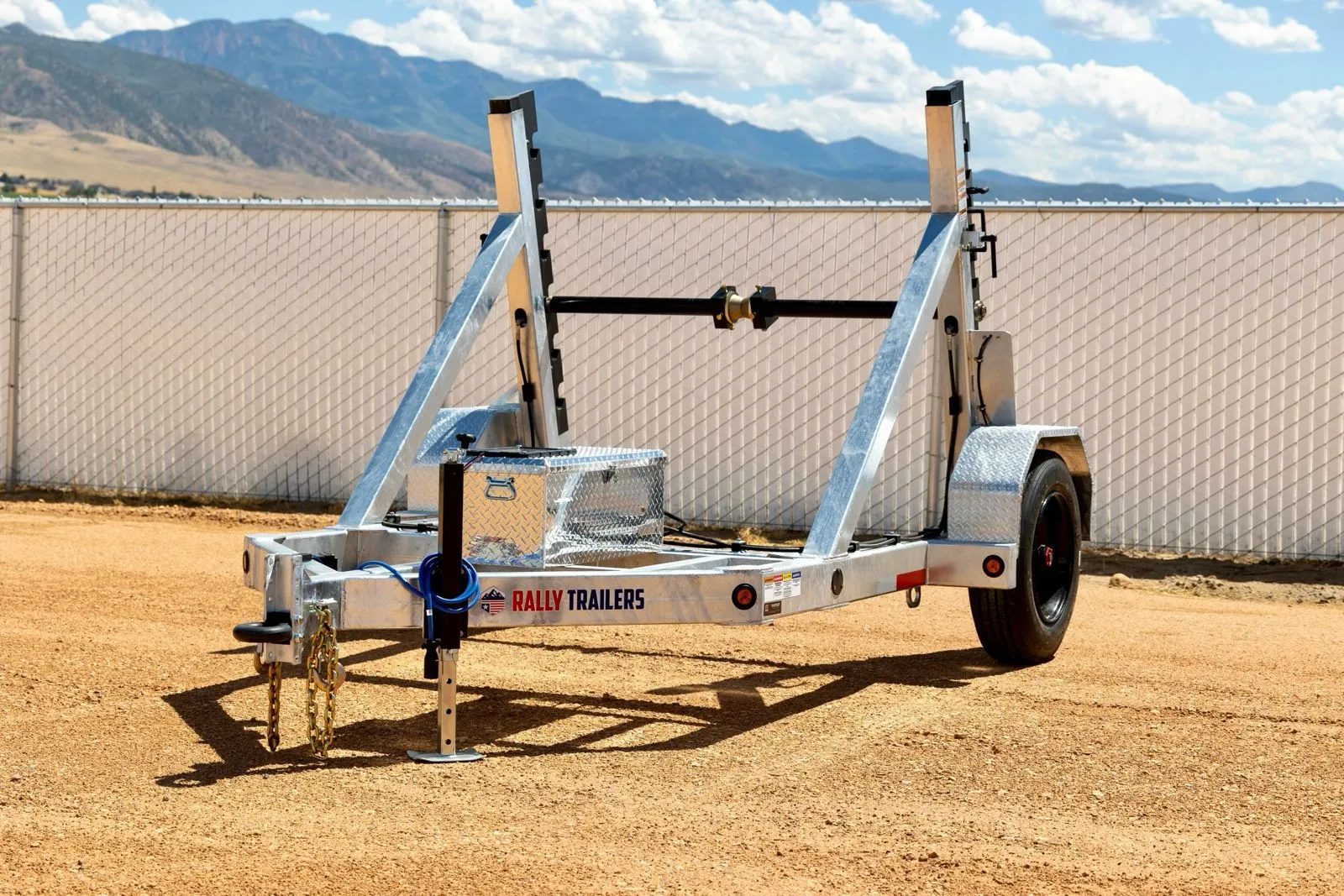

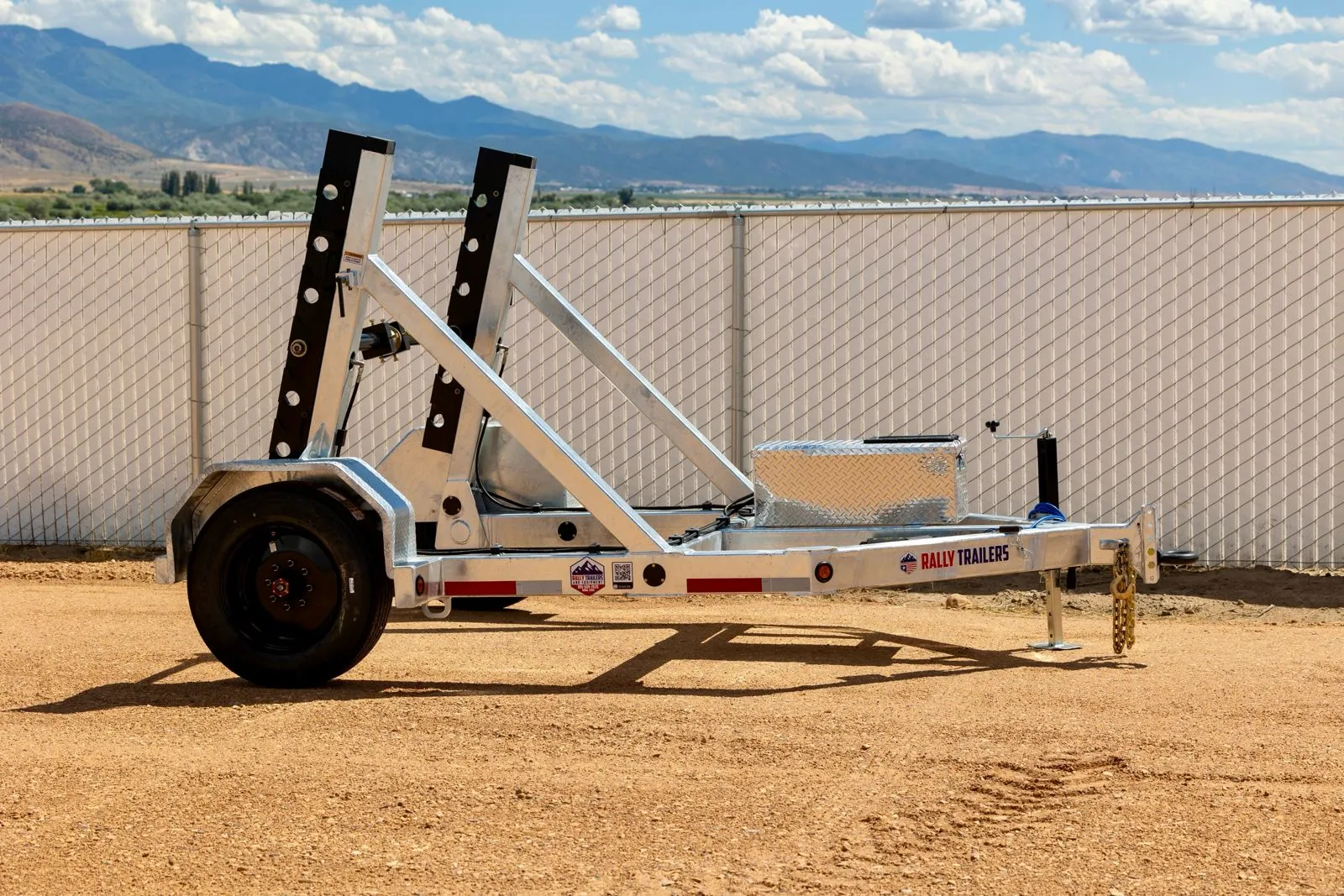

Galvanized Finish

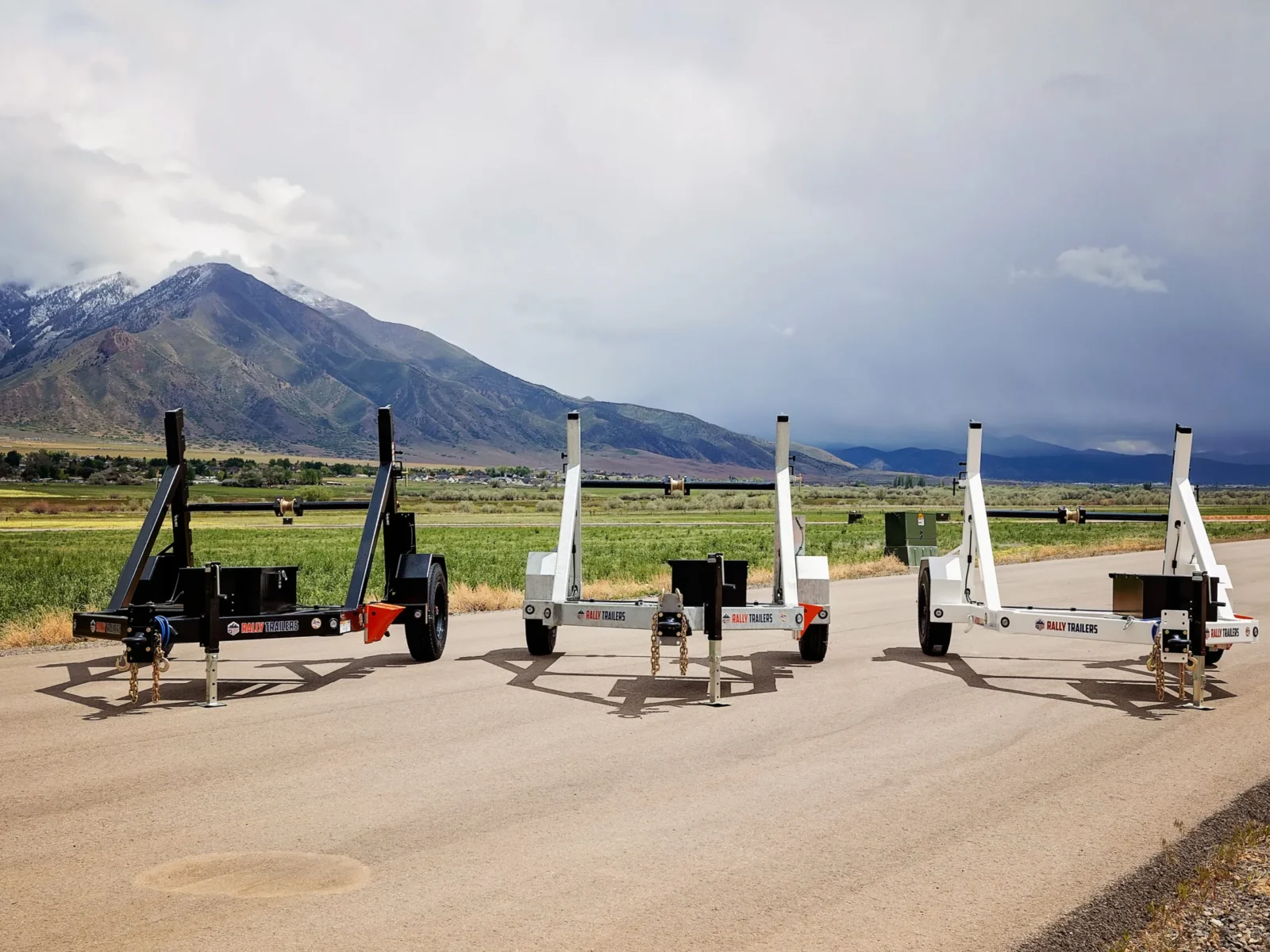

Color Options
Hydraulic Jack
Increased Payload

Hydraulic Jack

Makes hooking up your trailer quick and easy. A front-mounted hydraulic jack lets you raise and lower the trailer smoothly without extra effort or strain.
Galvanized Finish

A hot-dip galvanized coating protects your trailer from rust and wear. It covers the frame inside and out to help your trailer last longer in tough conditions.
Increased Payload

Upgrade your axle and tires to safely haul heavier reels. Built for strength and stability, this upgrade helps your trailer handle bigger jobs with confidence.
Custom Colors

Match your trailer to your brand with custom color options. Stand out on the job site with a clean, professional look built to represent your company.
