GAS HYDRAULIC WITH PAYOFF WHEEL

GHRB-6P

GVWR: 10,225 lbs.
Payload: 8,000 lbs.
Reel Width: 60"
Reel Diameter: 120"

Overview

About the GAS HYDRAULIC WITH PAYOFF WHEEL

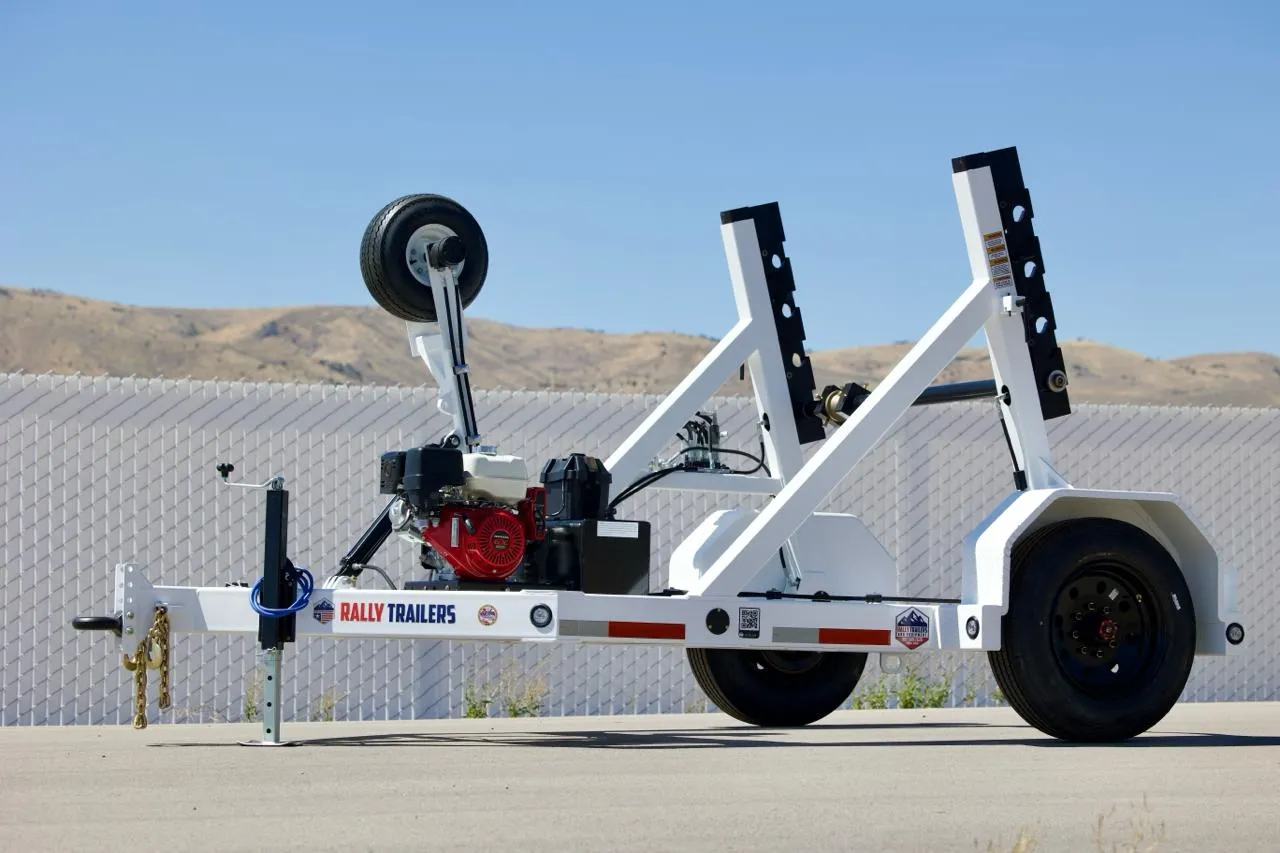

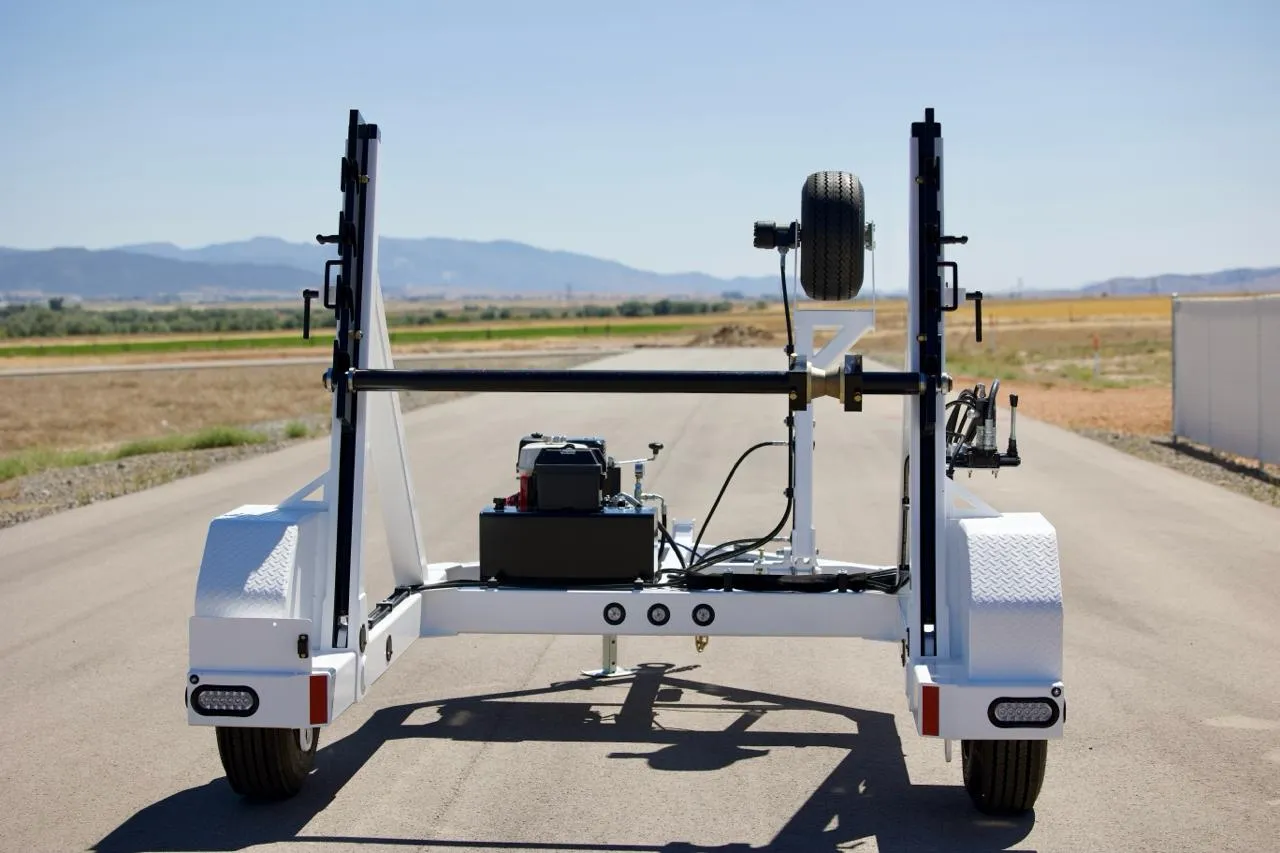

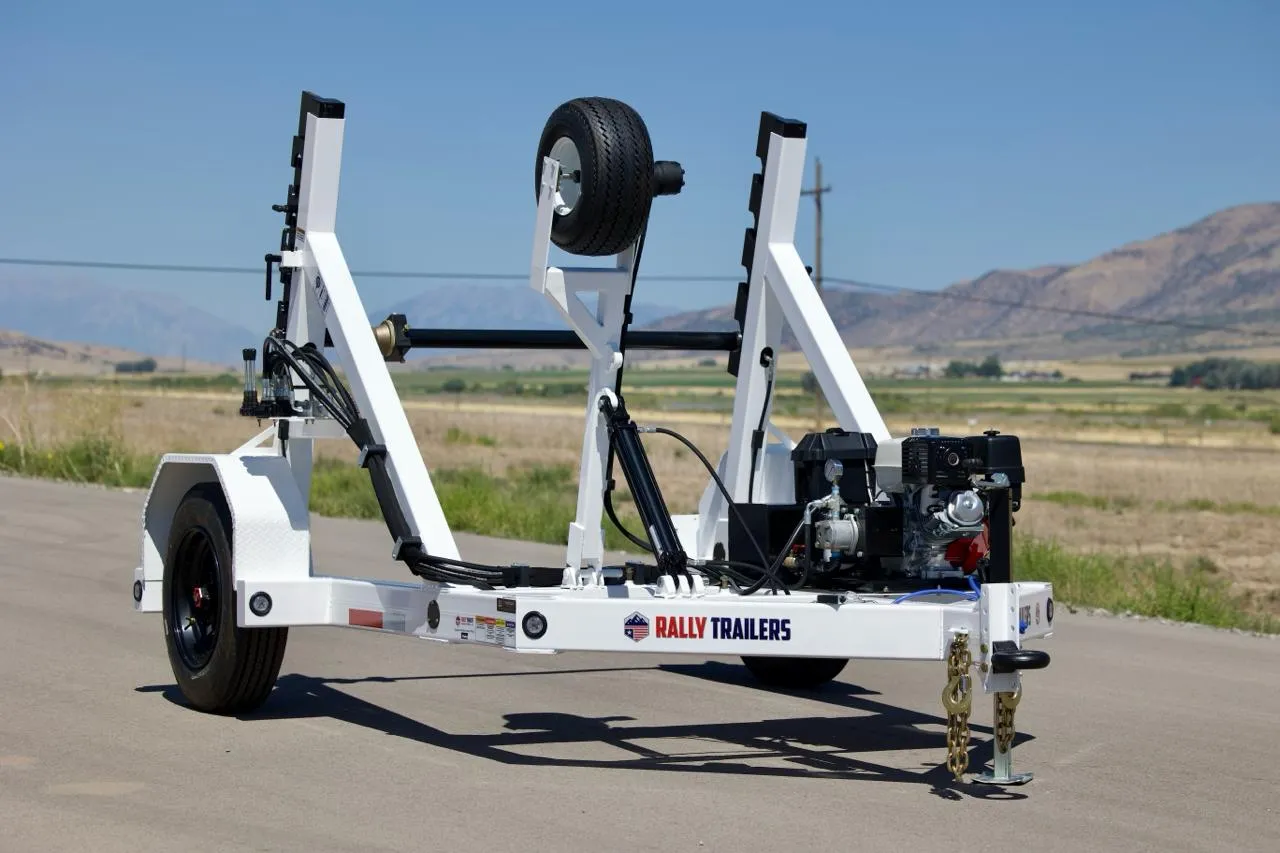

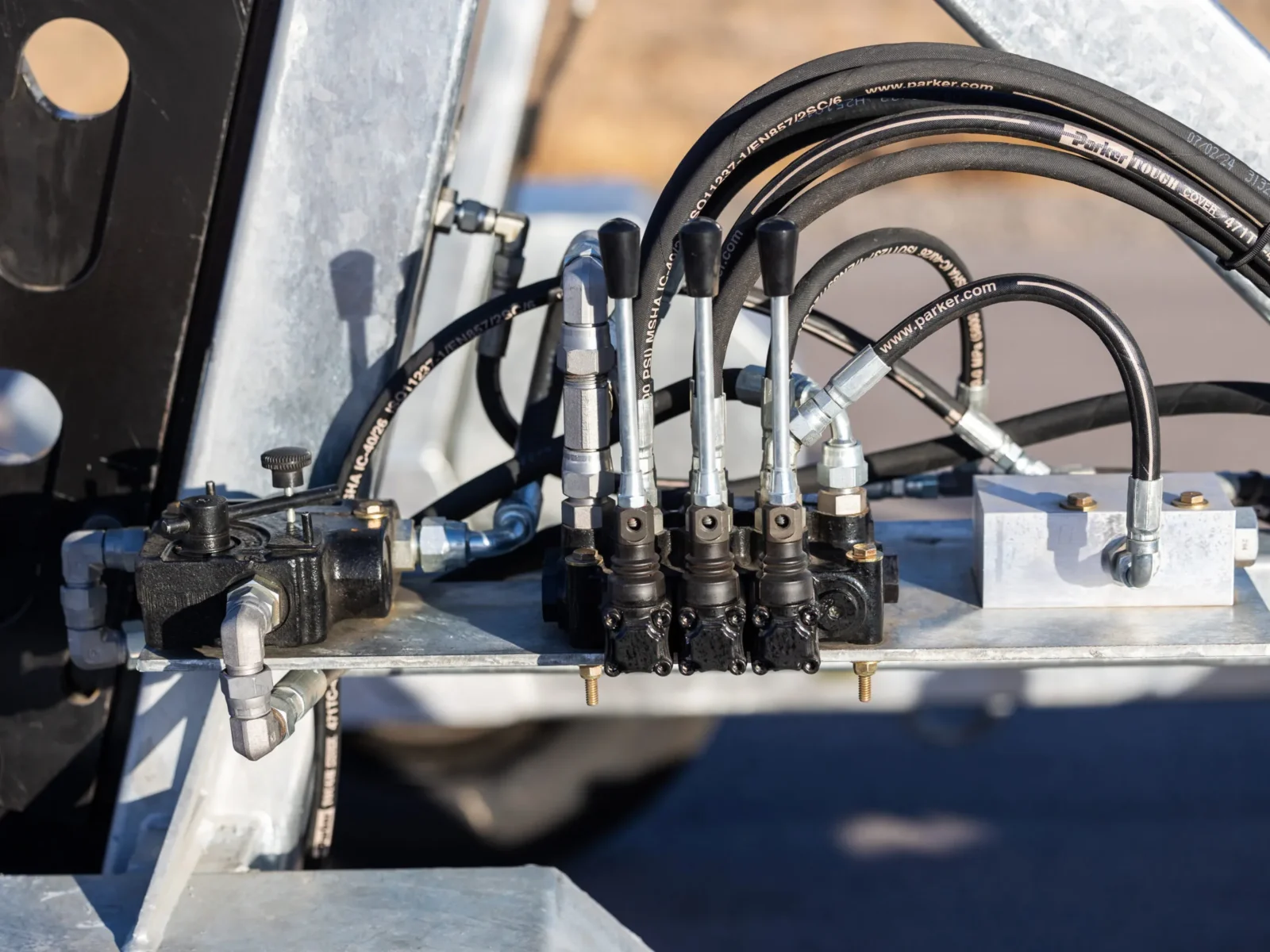

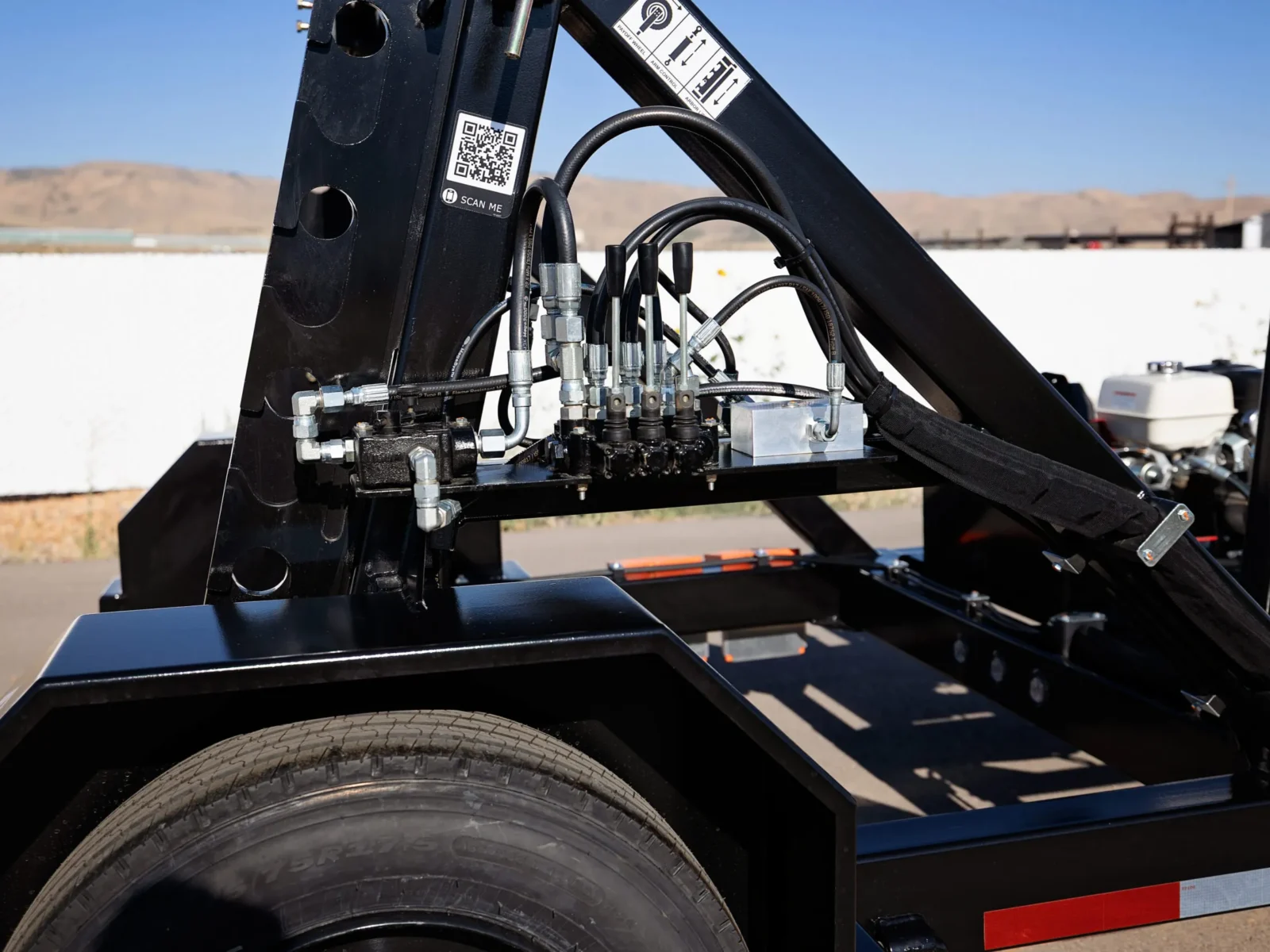

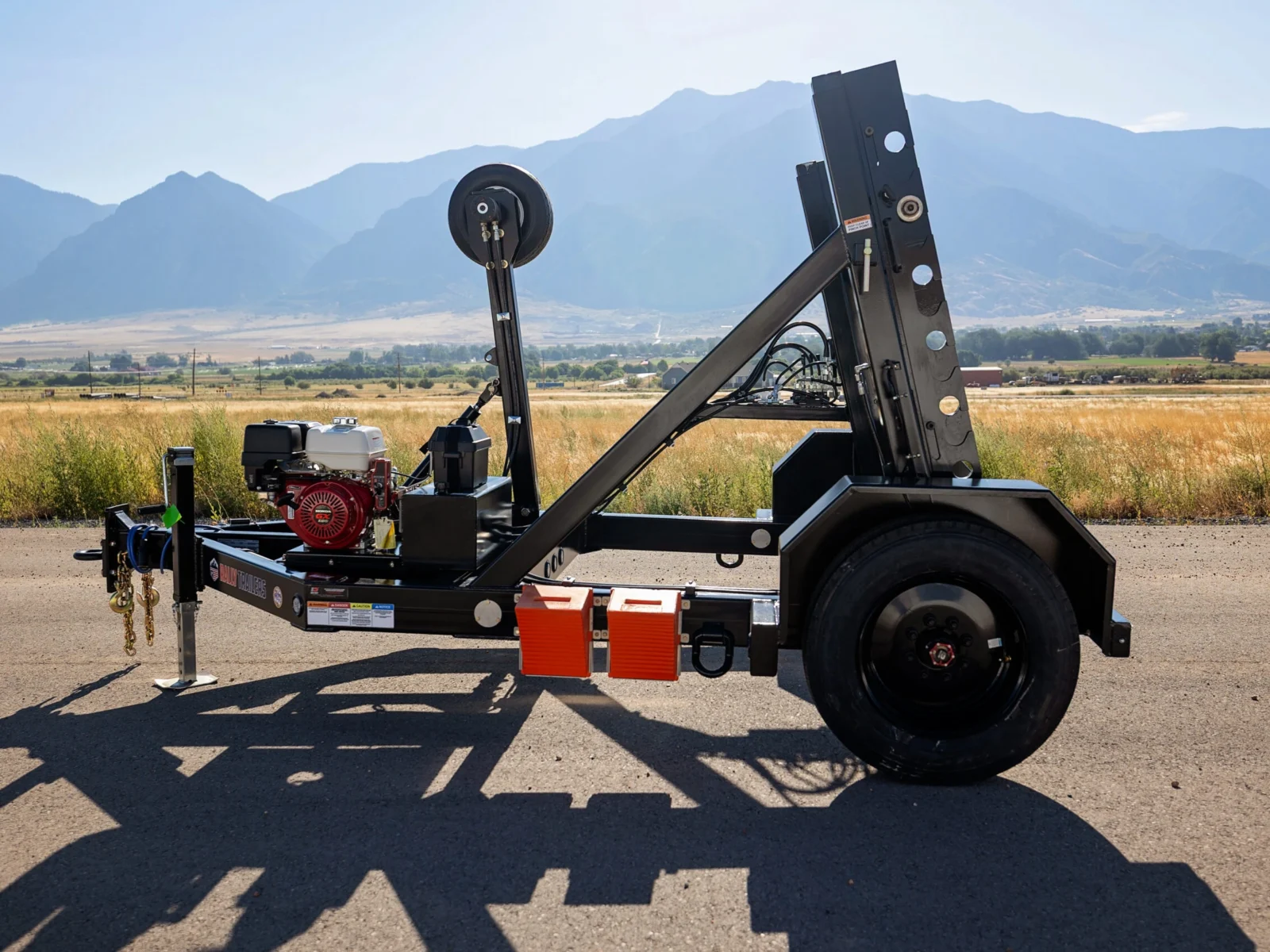

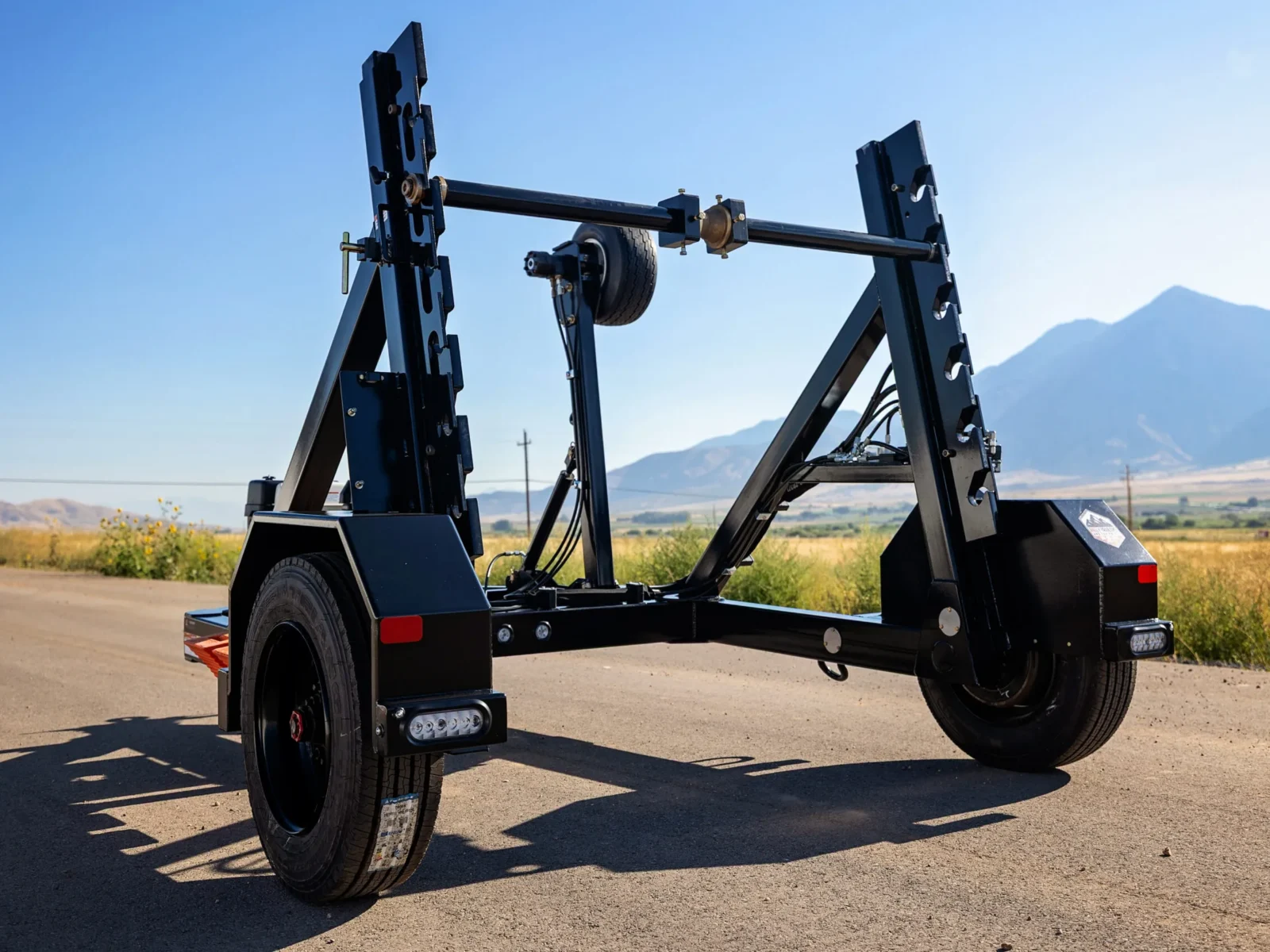

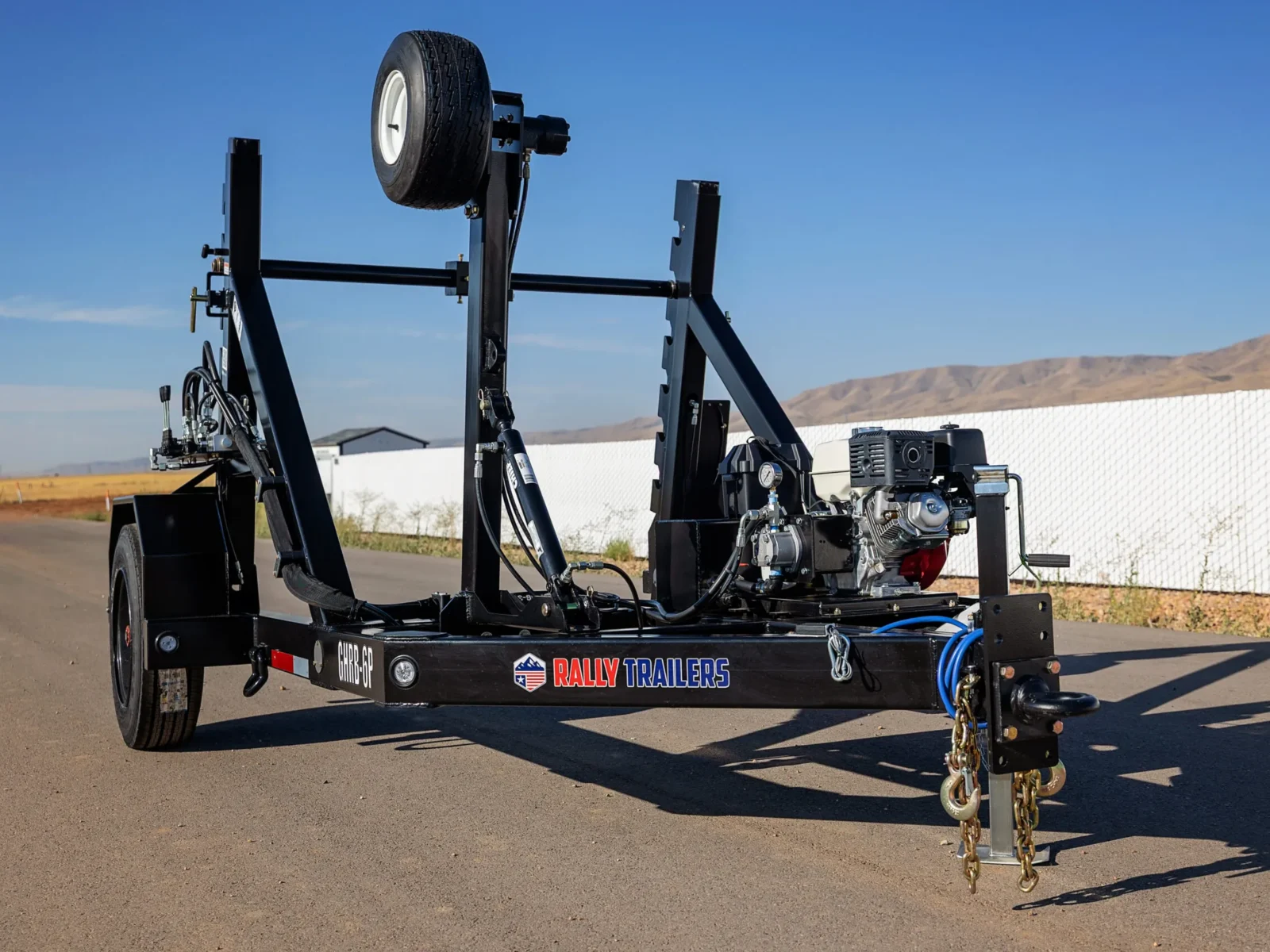

The Gas Hydraulic Reel Trailer is engineered for efficient unspooling and respooling of cable or conduit on utility and infrastructure job sites. Accommodating reels with diameters from 10” to 120”, this trailer is powered by a 14 HP electric-start engine that operates a self-contained hydraulic system. A dedicated hydraulic payoff wheel ensures steady reel payout and minimizes drag during installation, enhancing productivity and protecting cable integrity. The hydraulic system enables precise raising, lowering, and positioning of reels using the payoff wheel, all with controlled, consistent force.
Built for heavy-duty job-site demands, the trailer’s durable construction delivers reliable performance for transporting and deploying cable or conduit reels. Ideal for contractors, it provides dependable hydraulic reel handling without external power.

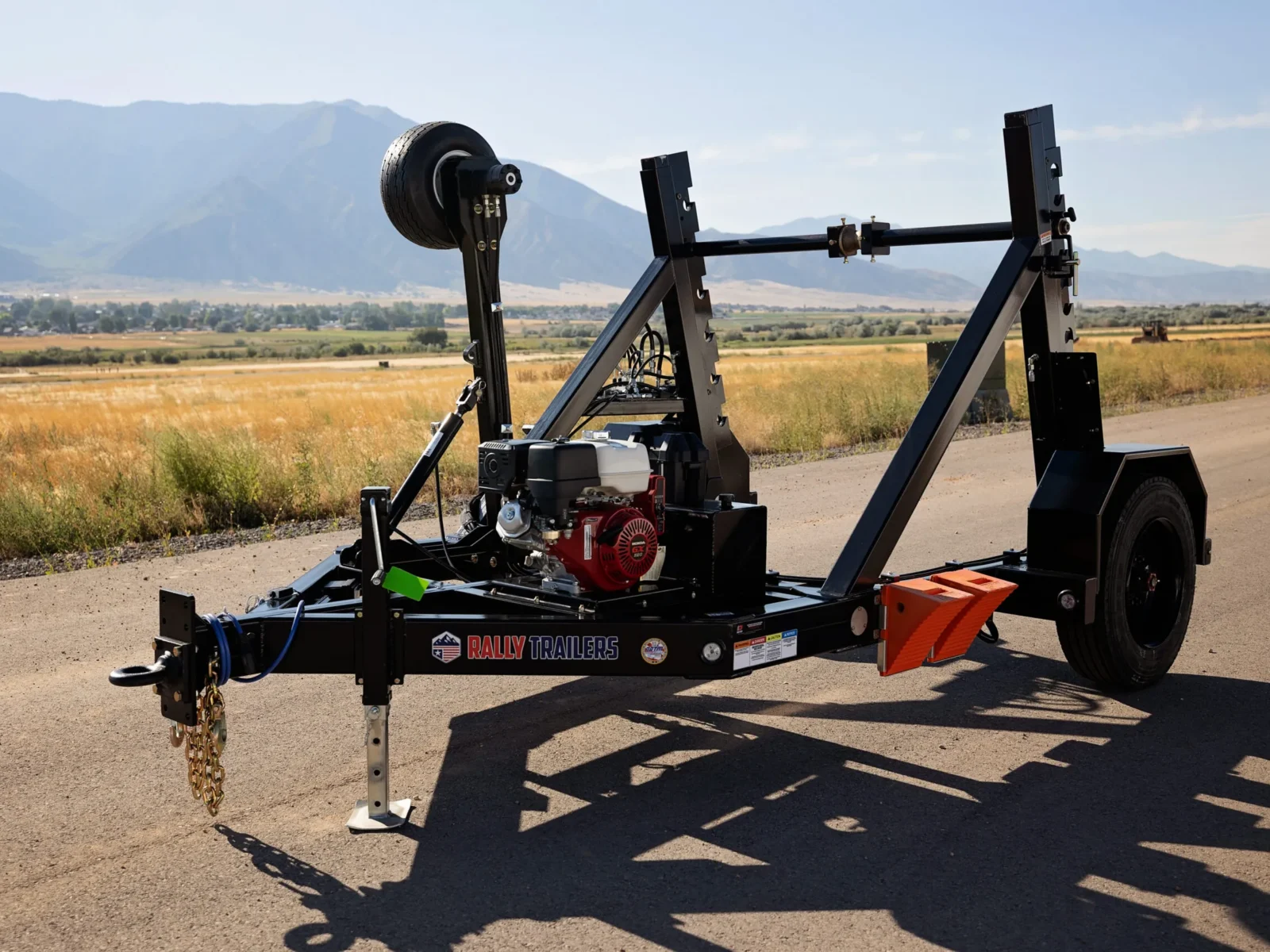

Selected Black

Specs

Specifications

GVWR: 10,225 lbs
Payload Rating: 8,000 lbs
Reel Width: 60″
Reel Diameter: 120″
Trailer Length: 13′
Trailer Width: 96″
Tires: 231/75R 17.5

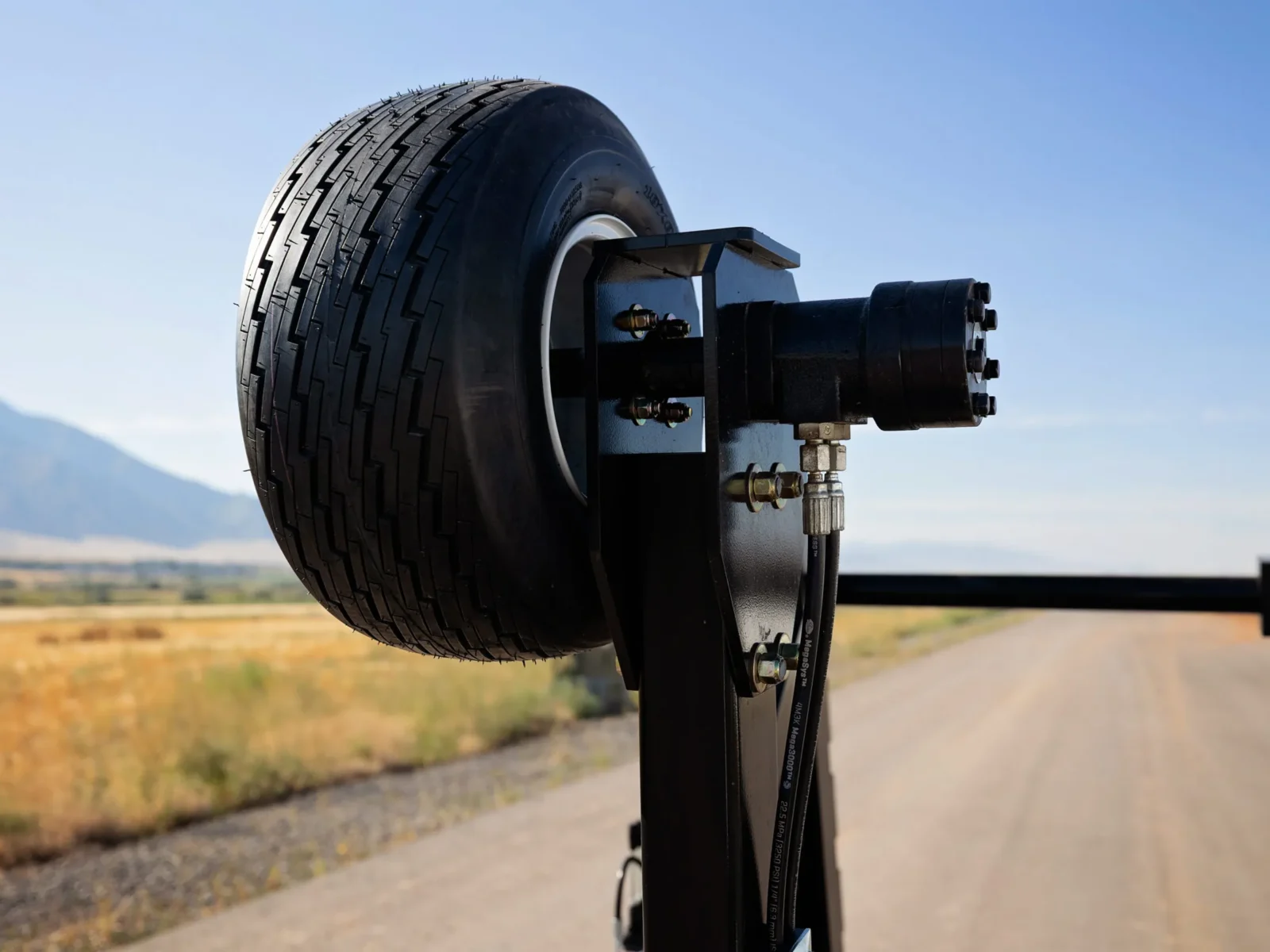

Hydraulic Payoff Wheel

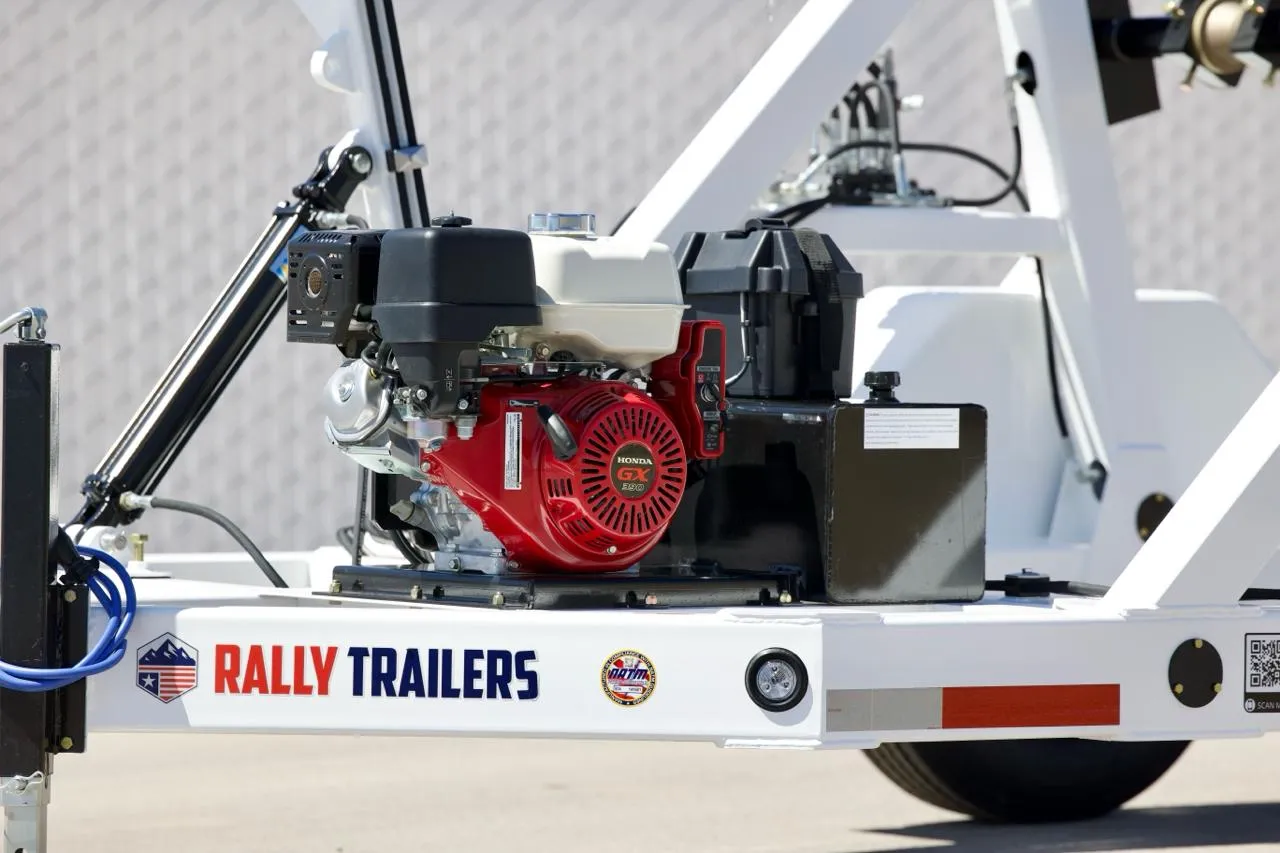

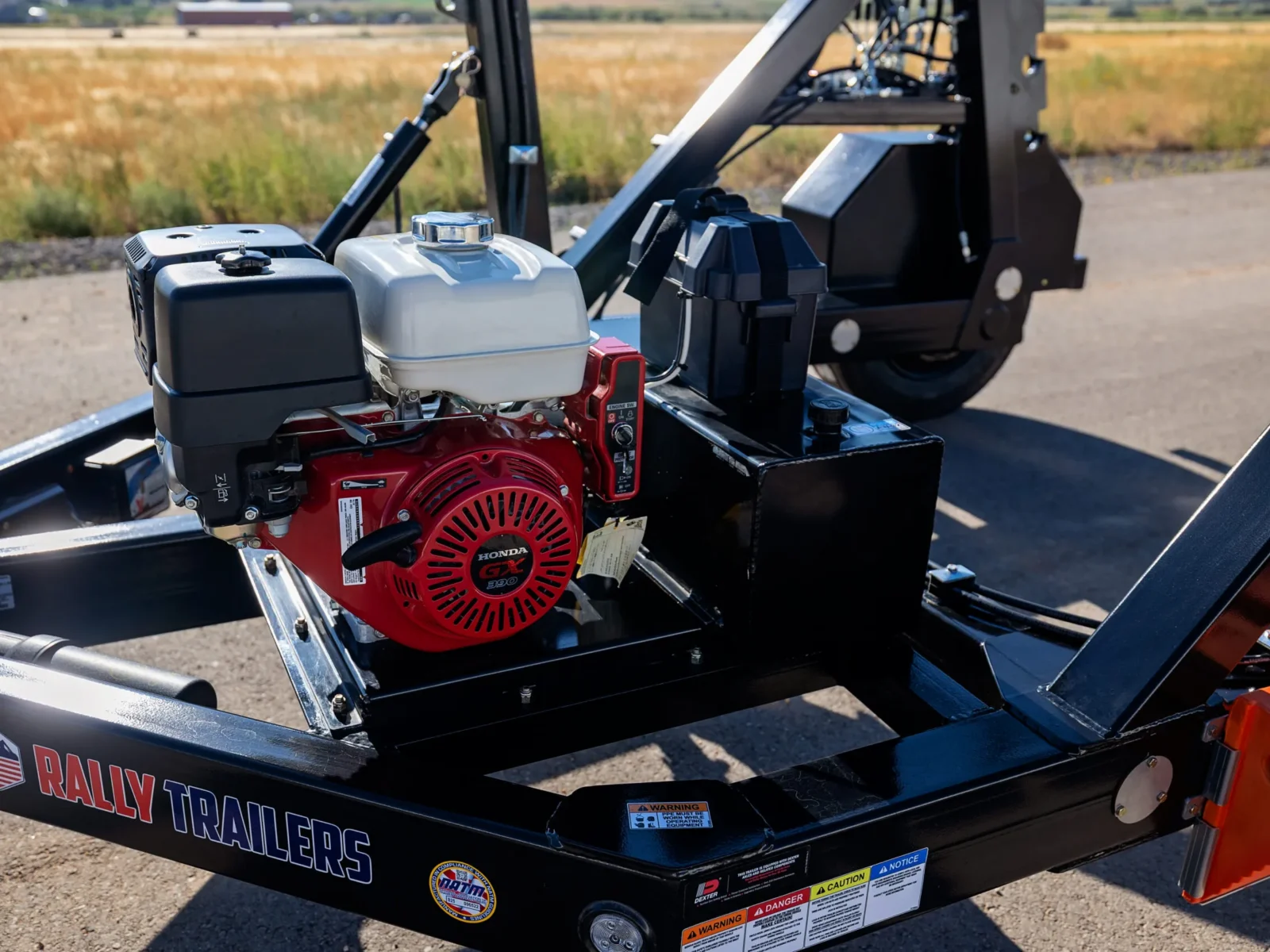

13 HP Electric Start
8K Oil Bath Hubs
10,000 lbs. Lifting Capacity
LED Lights and Electric Brakes
Pintle Hitch
Tire Chocks: (2)
Document Holder

Customize

Features & Options

Included

Document Holder
LED Lights
Electric Brakes
Pintle Hitch
Tire Chocks
13 HP Electric Start
8K Oil Bath Hubs
Hydraulic Payoff Wheel
10,000 lbs. Lifting Capacity

Available Add-Ons

Galvanized Finish
Color Options
Hydraulic Jack

Hydraulic Jack

Makes hooking up your trailer quick and easy. A front-mounted hydraulic jack lets you raise and lower the trailer smoothly without extra effort or strain.

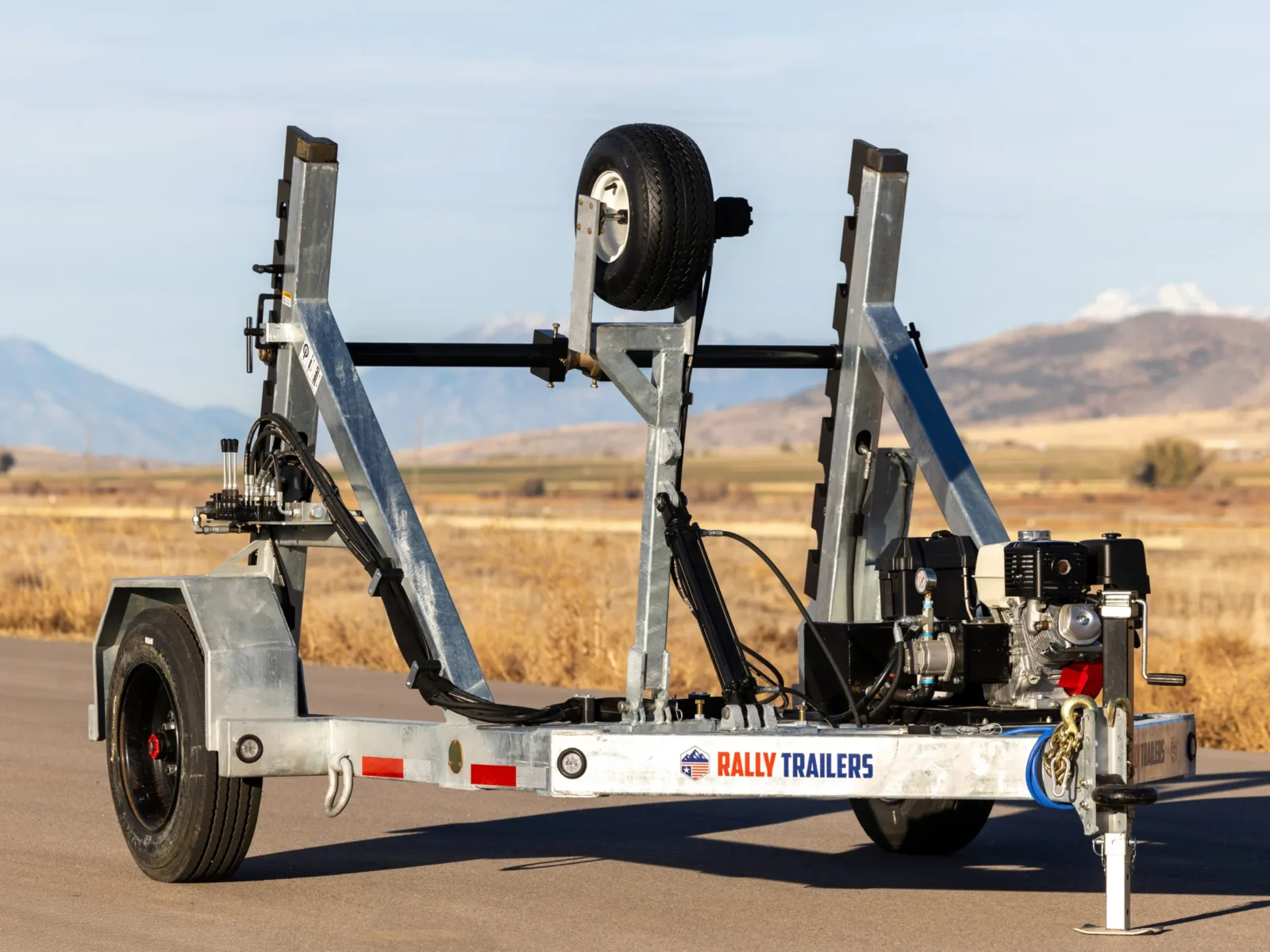

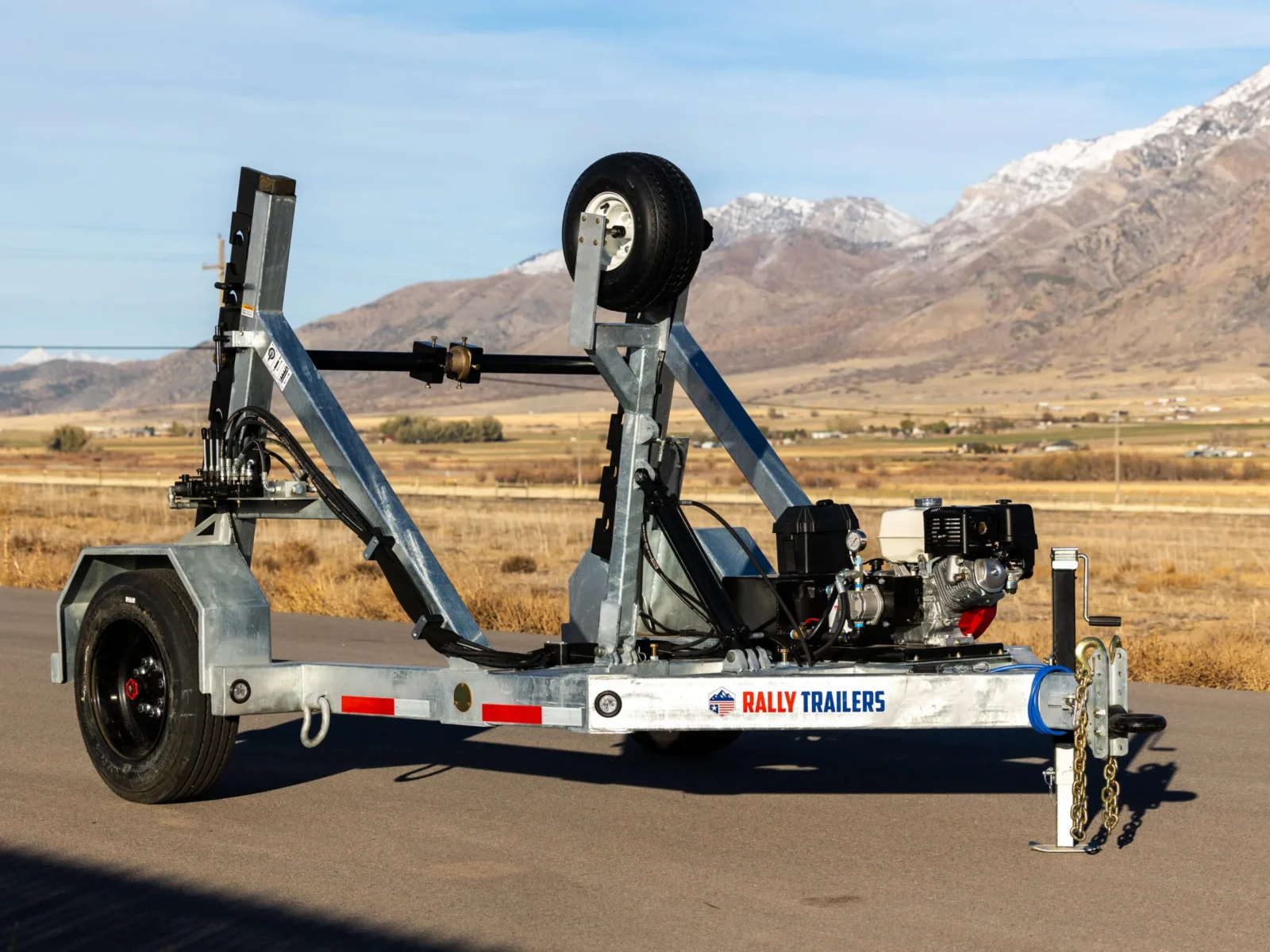

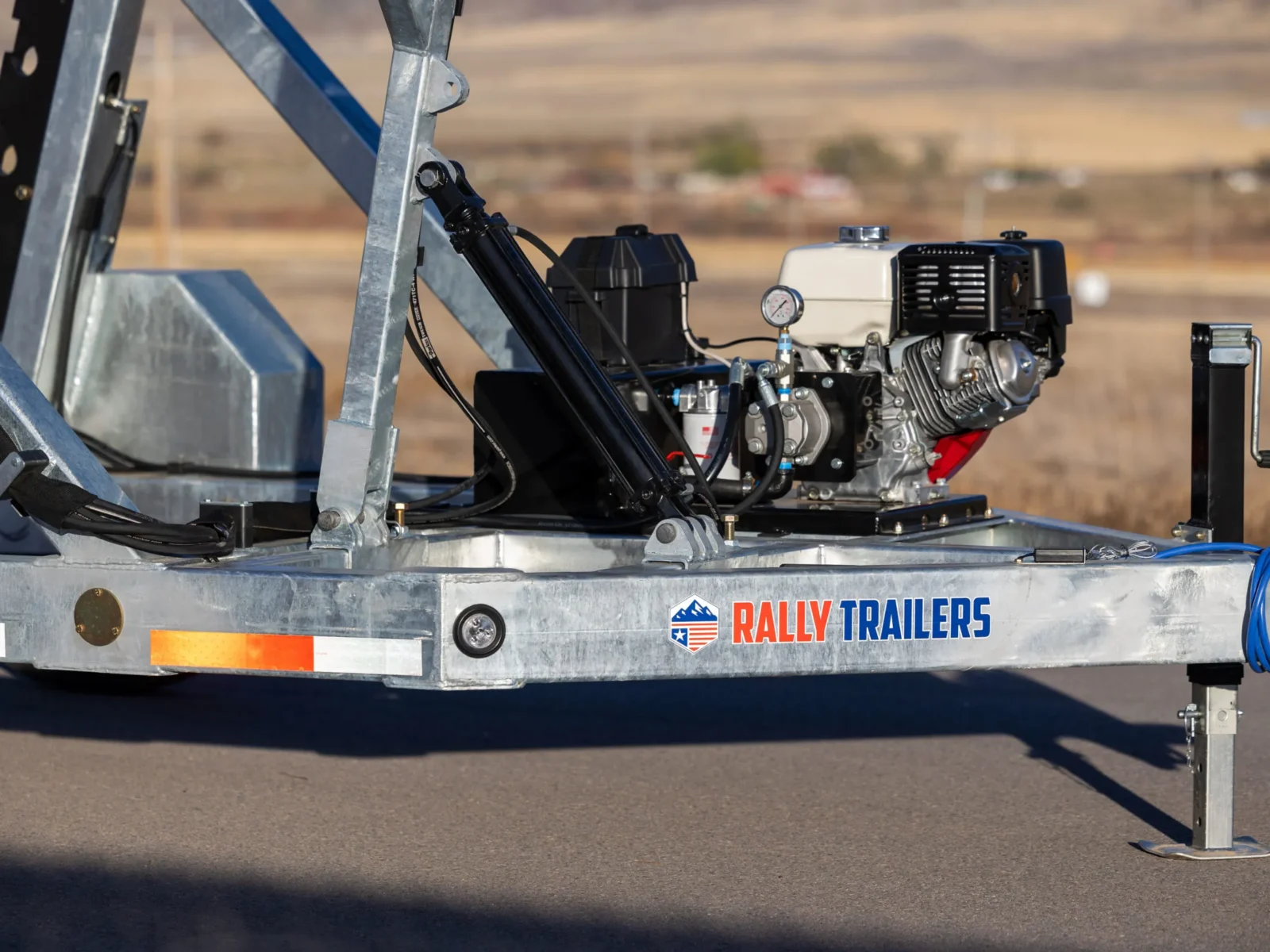

Galvanized Finish

A hot-dip galvanized coating protects your trailer from rust and wear. It covers the frame inside and out to help your trailer last longer in tough conditions.
