HYDRAULIC DUCT RODDER TRAILER

DRT

GVWR: 3,500 lbs.
Payload: 600 lbs.
Trailer Length: 12'
Trailer Width: 78"

Overview

About the HYDRAULIC DUCT RODDER TRAILER

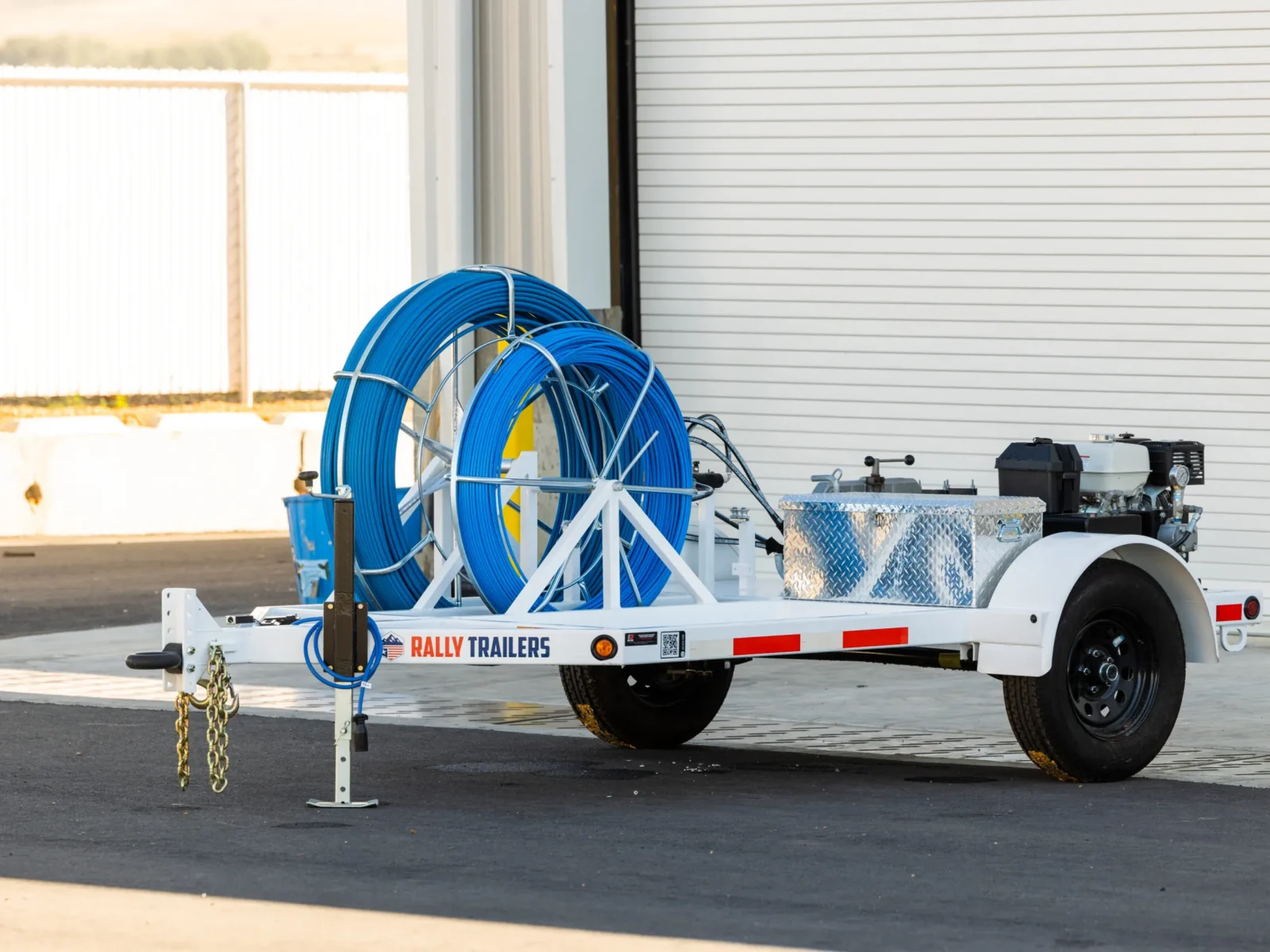

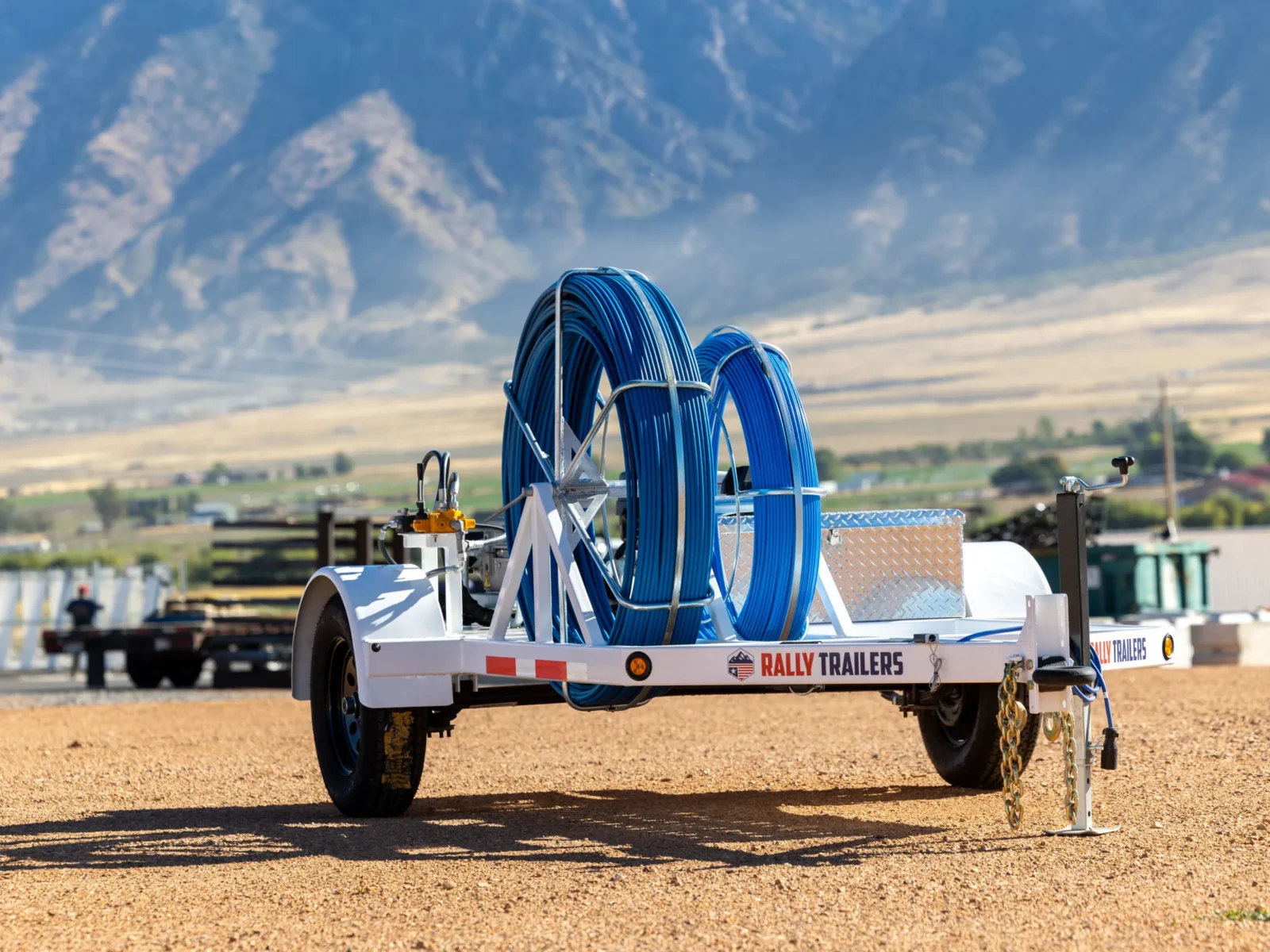

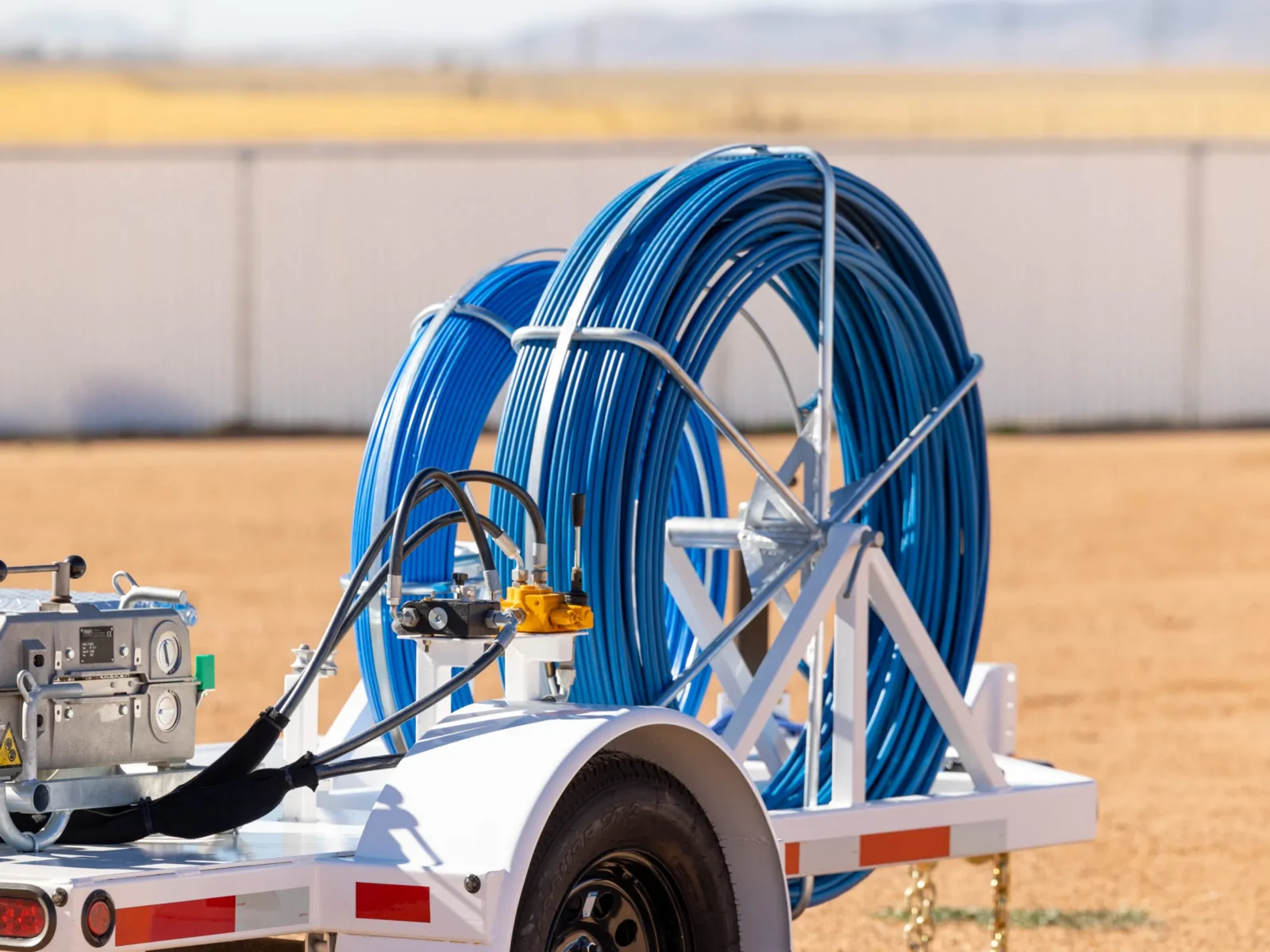

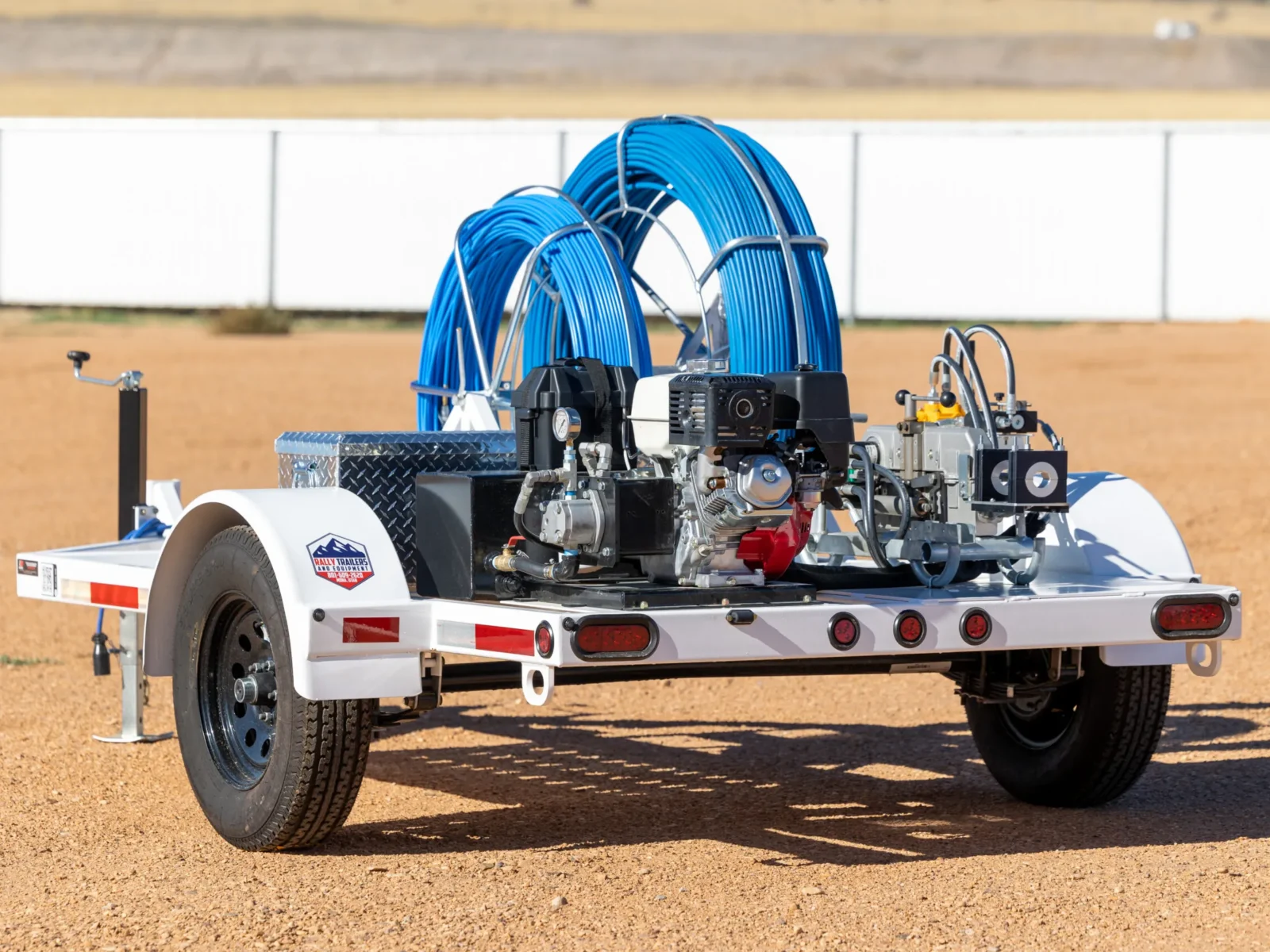

The Hydraulic Duct Rodder Trailer is designed for installing and retrieving fiber glass rod through populated conduit systems. It supports both ⅜” and ½” diameter rods up to 1,000’ and is equipped with a hydraulically driven Plumett DF22 pusher delivering 450 lbs of pushing force at speeds up to 236 feet per minute. Built on a 3,500-lb Frame, this trailer includes electric brakes, a pintle hitch, and an 8,000-lb jack for stable transport and operation. This trailer is fully self-contained with an integrated toolbox, tool tray, and document holder, and is outfitted with LED lighting and tire chocks with aluminum holders, providing a practical, job-site-ready solution for fiber installation and conduit preparation.

Specs

Specifications

GVWR: 3,500 lbs.
Rodder Dimensions: 1/2″ x 1000′
Rodder Dimensions: 3/8″ x 1000′
Payload: 600 lbs.
Trailer Length: 12′
Trailer Width: 78″
Tires: 225/70R 15
DF22 Pusher: Plumett
Pushing Force: 450 lbs.
Max Speed: 236 ft/min
Drive Unit: Hydraulic
Toolbox
Tool Tray
LED Lights
Electric Brakes
Document Holder
8,000 lbs. Jack
Pintle Hitch
(2) Tire Chocks with Aluminum Holders

Customize

Features & Options

Included

Document Holder
LED Lights
Pintle Hitch
Tire Chocks
Toolbox
Tool Tray
8,000 lbs. Jack

Available Add-Ons

Galvanized Finish

Galvanized Finish

A hot-dip galvanized coating protects your trailer from rust and wear. It covers the frame inside and out to help your trailer last longer in tough conditions.
