Compressor Turret Trailer

CTT

GVWR
7,185 lbs.
Payload
4,000 lbs.
Reel Width
68"
Reel Diameter
84"

Overview

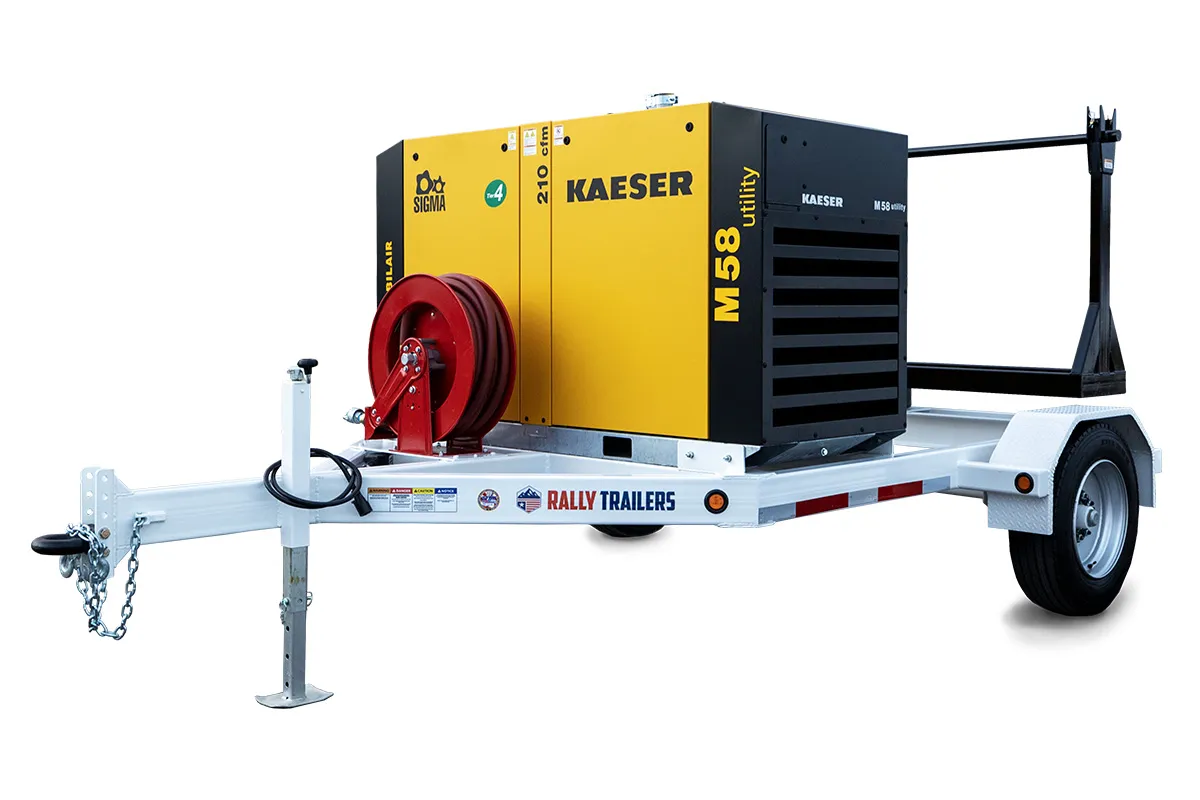

About the COMPRESSOR TURRET TRAILER

The Compressor Turret Trailer is designed to be an all-in-one solution for jetting. This trailer supports 84″ diameter x 60” wide reels (custom reel sizes available). Reels are loaded onto a 2 5/8” Rally roller bar, equipped with centering cones, locking collars, and lifting eyes for secure transport. This trailer has a manual turret rated for 4,500 lbs, equipped with a self-locking turret that provides full 360° rotation for precise positioning. This trailer is suitable for applications including open trench work, horizontal drilling, and jetting. This trailer comes with a variety of compressor options suited to the customer.

COMPRESSOR TURRET TRAILER

Specs

Specifications

  • GVWR: 7,185 lbs.
  • Payload Rating: 4,000 lbs.
  • Reel Width: 68″
  • Reel Diameter: 84″
  • Trailer Length: 16′
  • Trailer Width: 106″
  • Tires: 215/75R 17.5
  • 2″ Steel Bar with Locking Collars
  • (1) Manual Turret with 4,500 lbs. Capacity
  • Self-Lock Turrets with 360° Rotation
  • LED Lights
  • Electric Brakes
  • Document Holder

Customize

Features & Options

Included

  • Document Holder
  • LED Lights
  • Electric Brakes
  • Locking Collars
  • Self-Lock Turret with 360° Rotation

Available Add-Ons

  • Hydraulic Turret Drive Controls
  • 2.5″ Steel Bar

Make It Yours

Upgrade Your Trailer

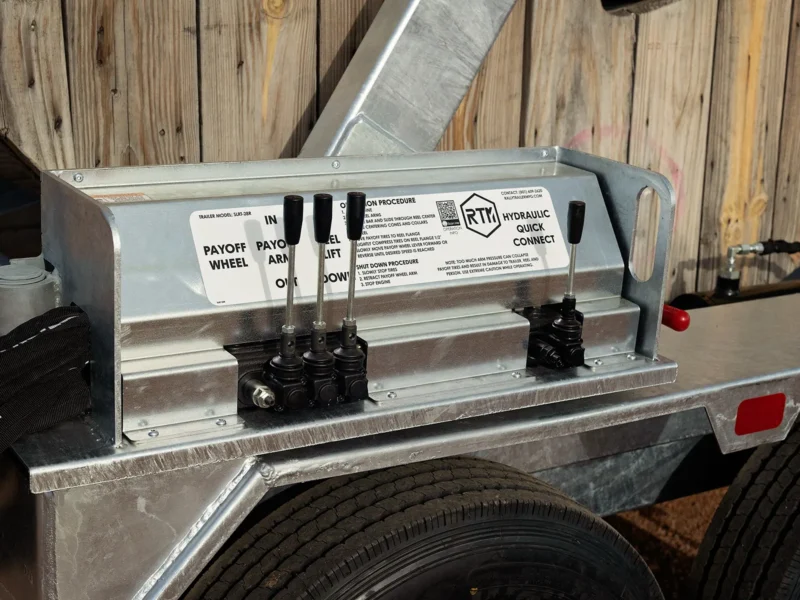

  • SLRT 28R Close up on Controls

    Hydraulic Turret Drive Controls

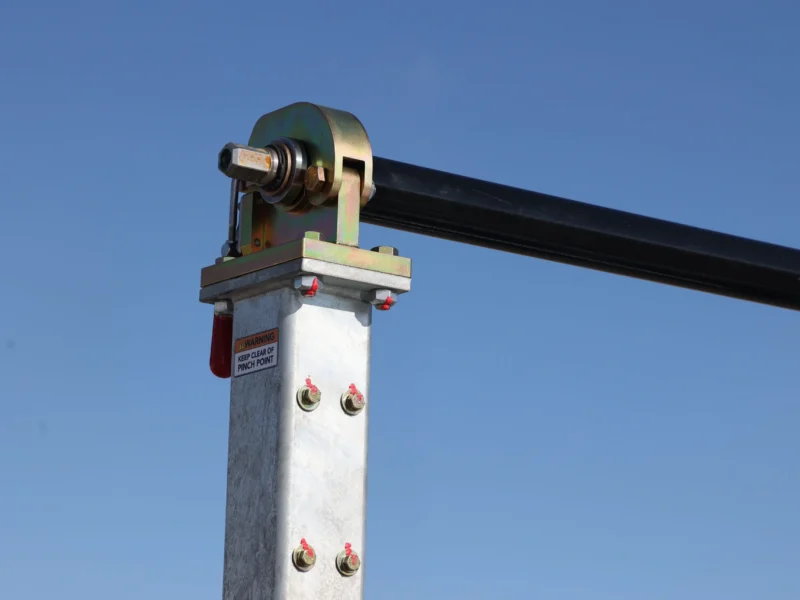

  • Single Turret Trailer Bar Left SIde

    2.5" Steel Bar
