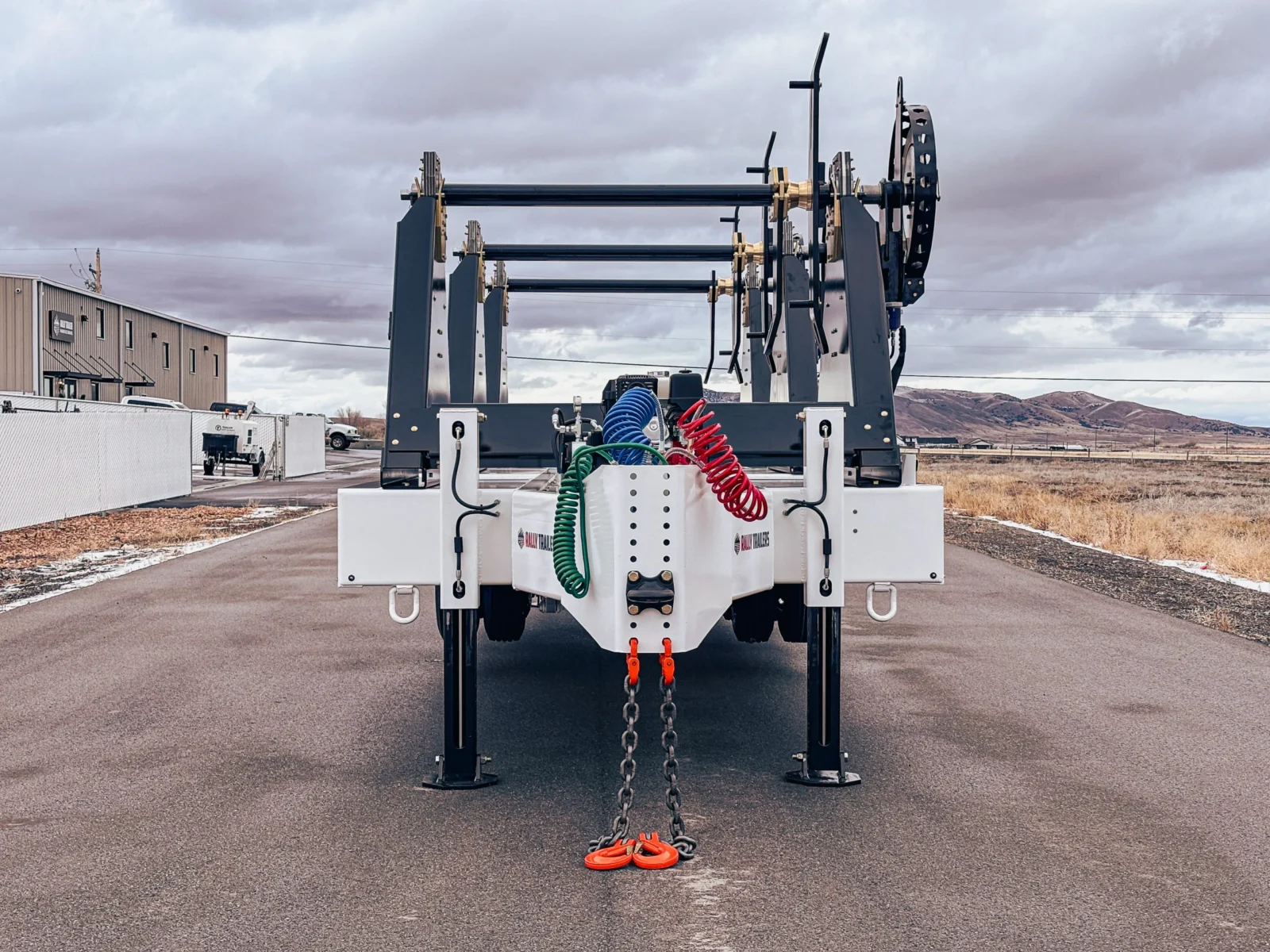

Triple Reel Trailer Front

TRT-315

GVWR
60,000 lbs.
Payload
15,000 lbs.
Reel Width
65"
Reel Diameter
96"

Overview

About the TRIPLE REEL TRAILER

The TRT-315 is the ultimate trailer for overhead transmission line work, designed to meet the highest standards of performance and reliability. With the capacity to haul three 15k reels, it is equipped with 24″ aluminum disc brakes, coated in bronze for added durability. Additionally, the trailer includes a 4″ bar with centering cones and three removable reel stands, providing versatility for different hauling needs.
The TRT-315 is powered by a 13 HP hydraulic power unit, ensuring efficient operation, while four hydraulic stabilizer jacks offer enhanced stability during use. For easy access and convenience, side steps are integrated into the trailer design. The trailer also boasts three 22.5k air brake axles with ABS, paired with dual 235/75R17.5 tires, delivering exceptional performance and smooth handling in any working condition. Whether navigating tough terrain or handling complex tasks, the TRT-315 provides a reliable solution for your overhead transmission line projects.

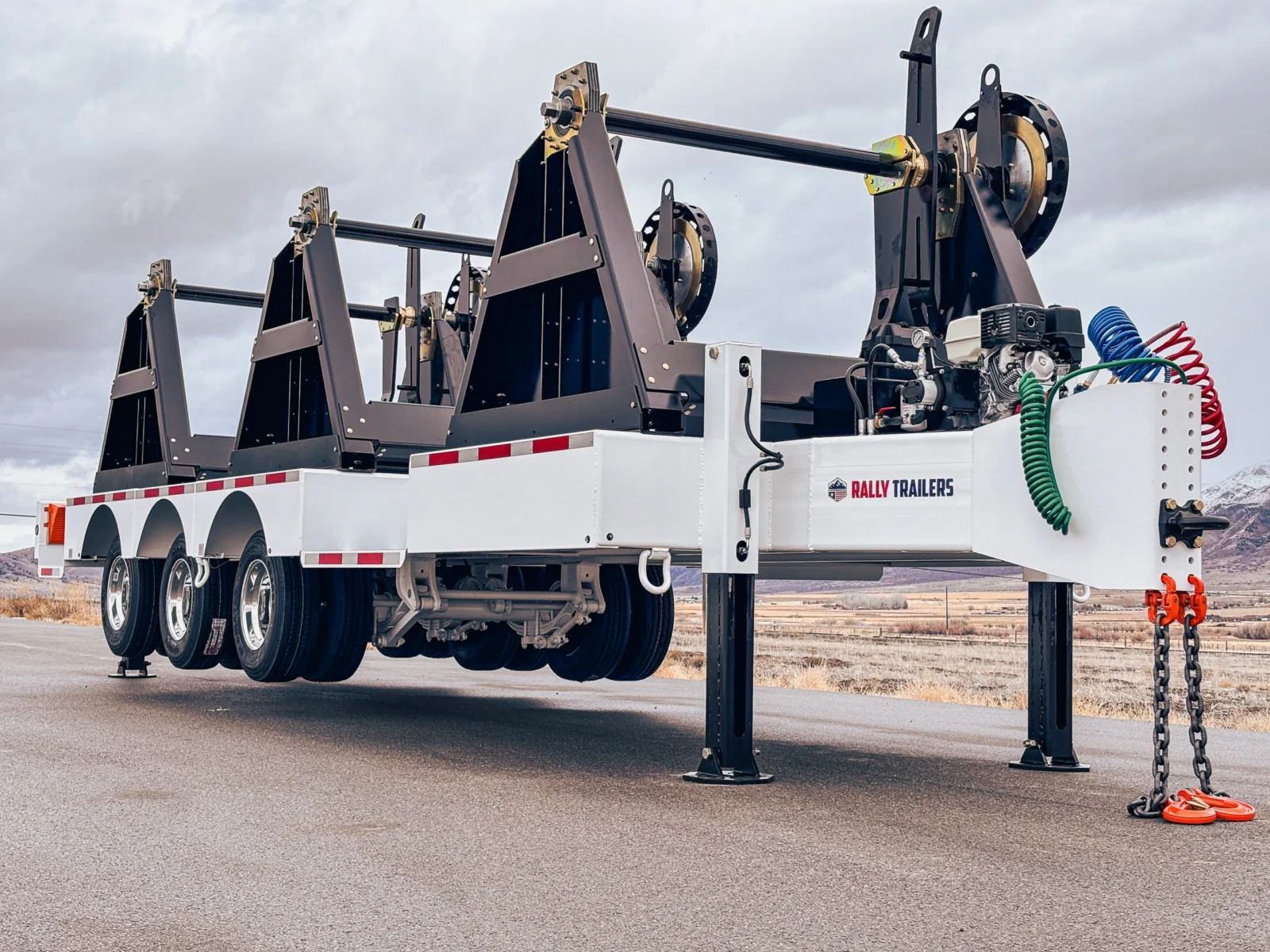

Triple Reel Trailer

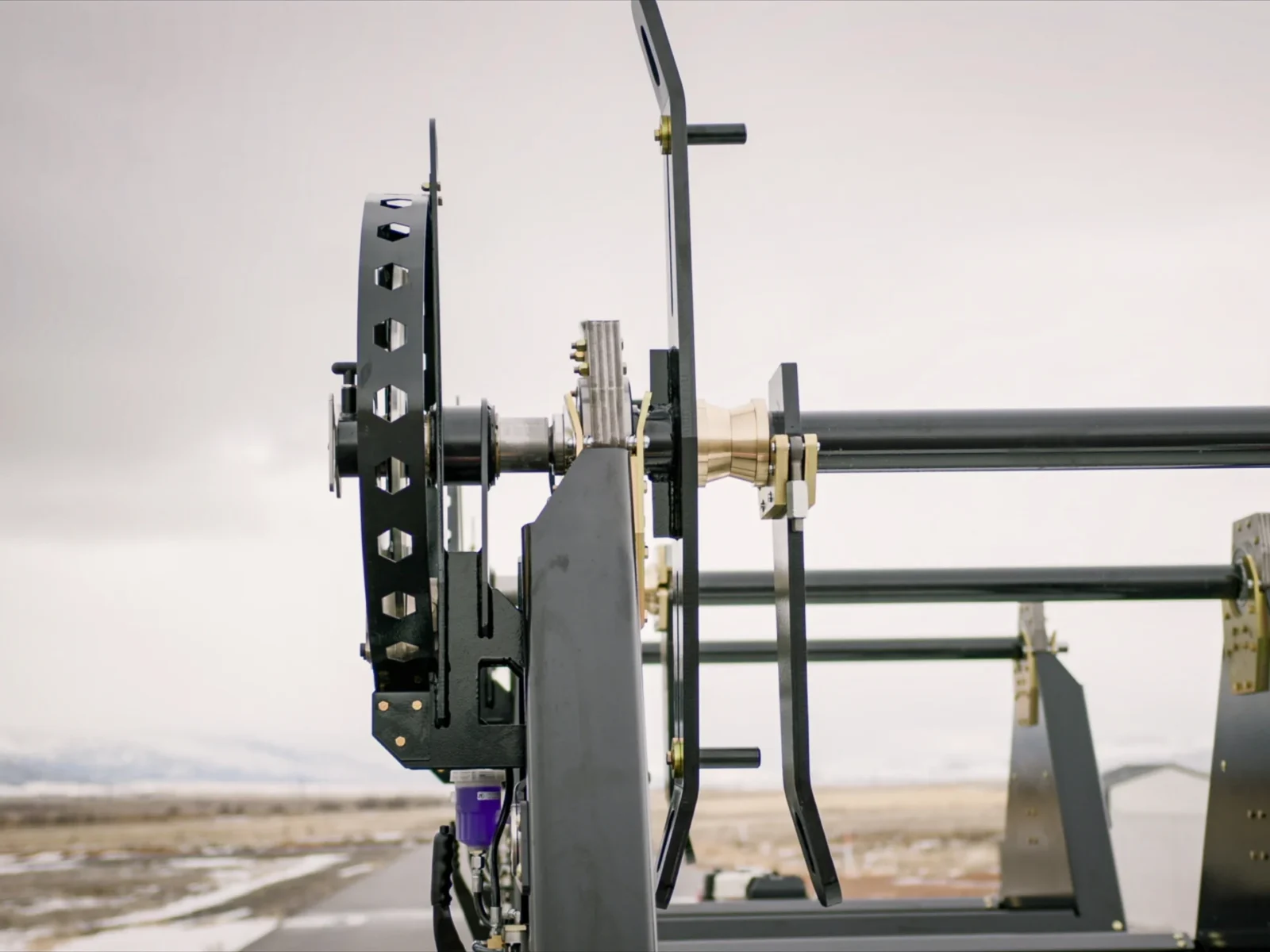

Triple Reel Trailer Side Left

Specs

Specifications

  • GVWR: 60,000 lbs.
  • Payload Rating: 15,000 lbs.
  • Reel Width: 65″
  • Reel Diameter: 96″
  • Trailer Length: 35′
  • Trailer Width: 102″
  • Tires: 235/75R 17.5 Dually
  • 24″ Hydraulic-Operated Bronze Brake
  • 13 HP Hydraulic Power Unit
  • Hydraulic Stabilizer Jacks
  • 22,500 lbs. Air Brake Axles with ABS
  • 4″ Bar with Centering Cones
  • LED Lights
  • Removable Reel Stands
  • Document Holder

Customize

Features & Options

Included

  • Document Holder
  • LED Lights
  • Centering Cones
  • Hydraulic-Operated Bronze Brake
  • 13 HP Hydraulic Power Unit
  • Hydraulic Stabilizer Jacks
  • 22,500 lbs. Air Brake Axles with ABS
  • Removable Reel Stands

Available Add-Ons

  • Galvanized Finish
  • Gear-Driven Rewinder
  • Aluminum Rims

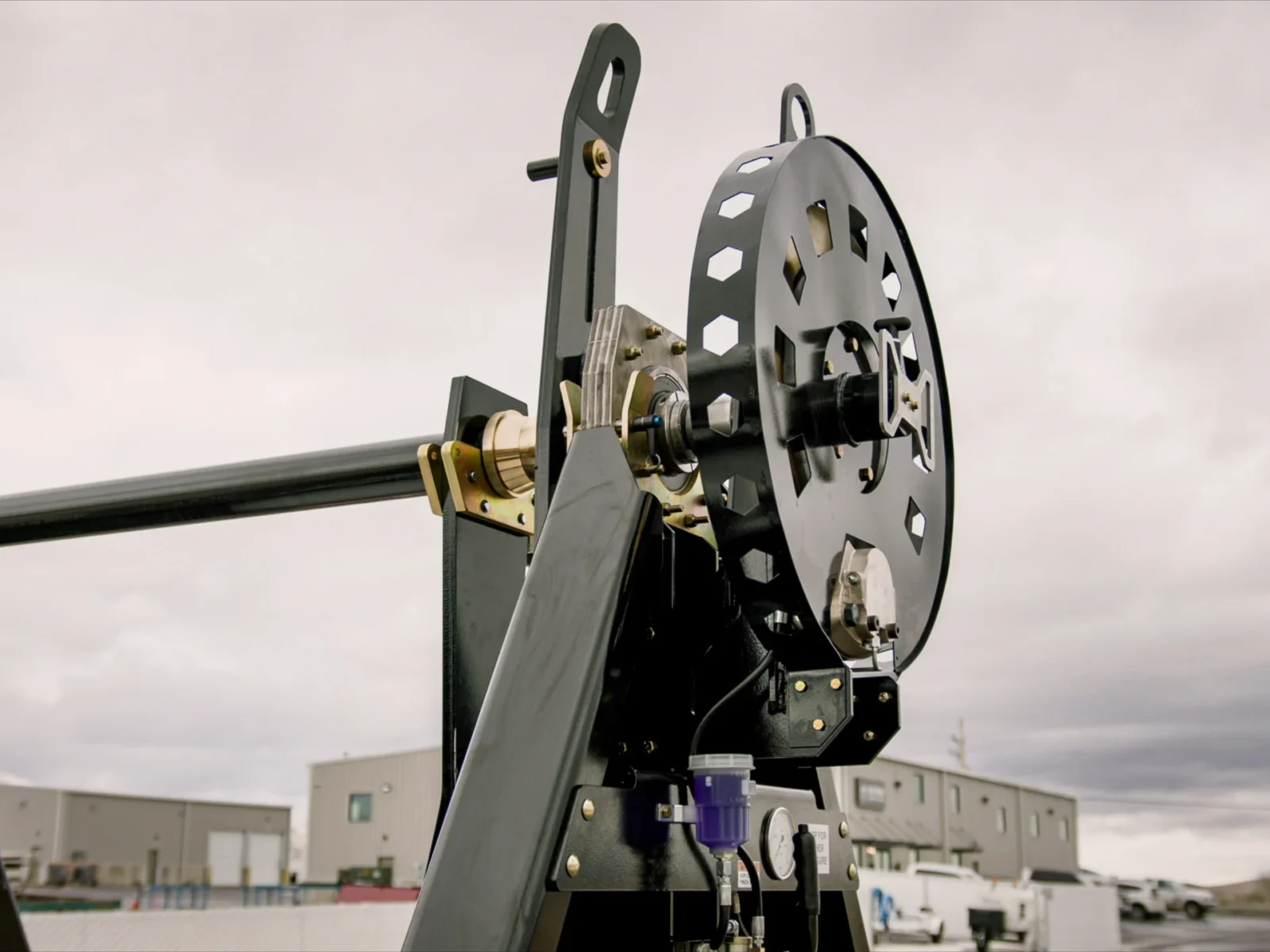

Triple Reel Trailer Side Right

Make It Yours

Upgrade Your Trailer

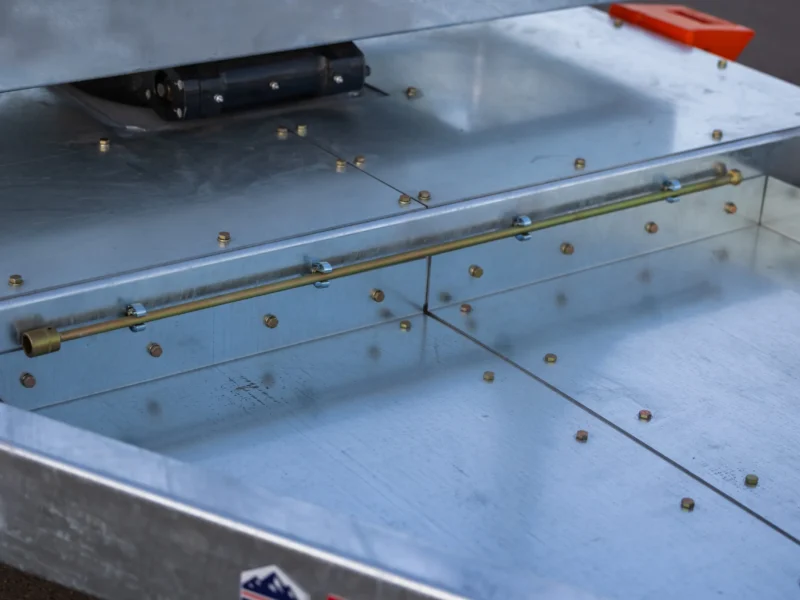

  • Two Place Turret Trailer Galvanized

    Galvanized Finish

    A hot-dip galvanized coating protects your trailer from rust and wear. It covers the frame inside and out to help your trailer last longer in tough conditions.

  • Triple Reel Trailer

    Aluminum Rims

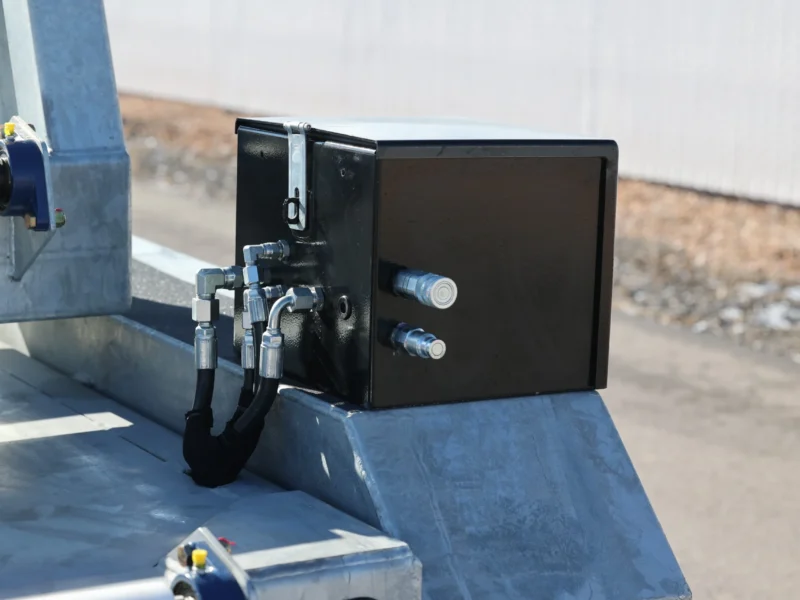

  • Single Turret Trailer Box

    Gear Driven Rewinder

Need Help Choosing?

Not Sure What You Need?

Talk to your local Rally dealer. They'll spec a trailer to match your jobs.
