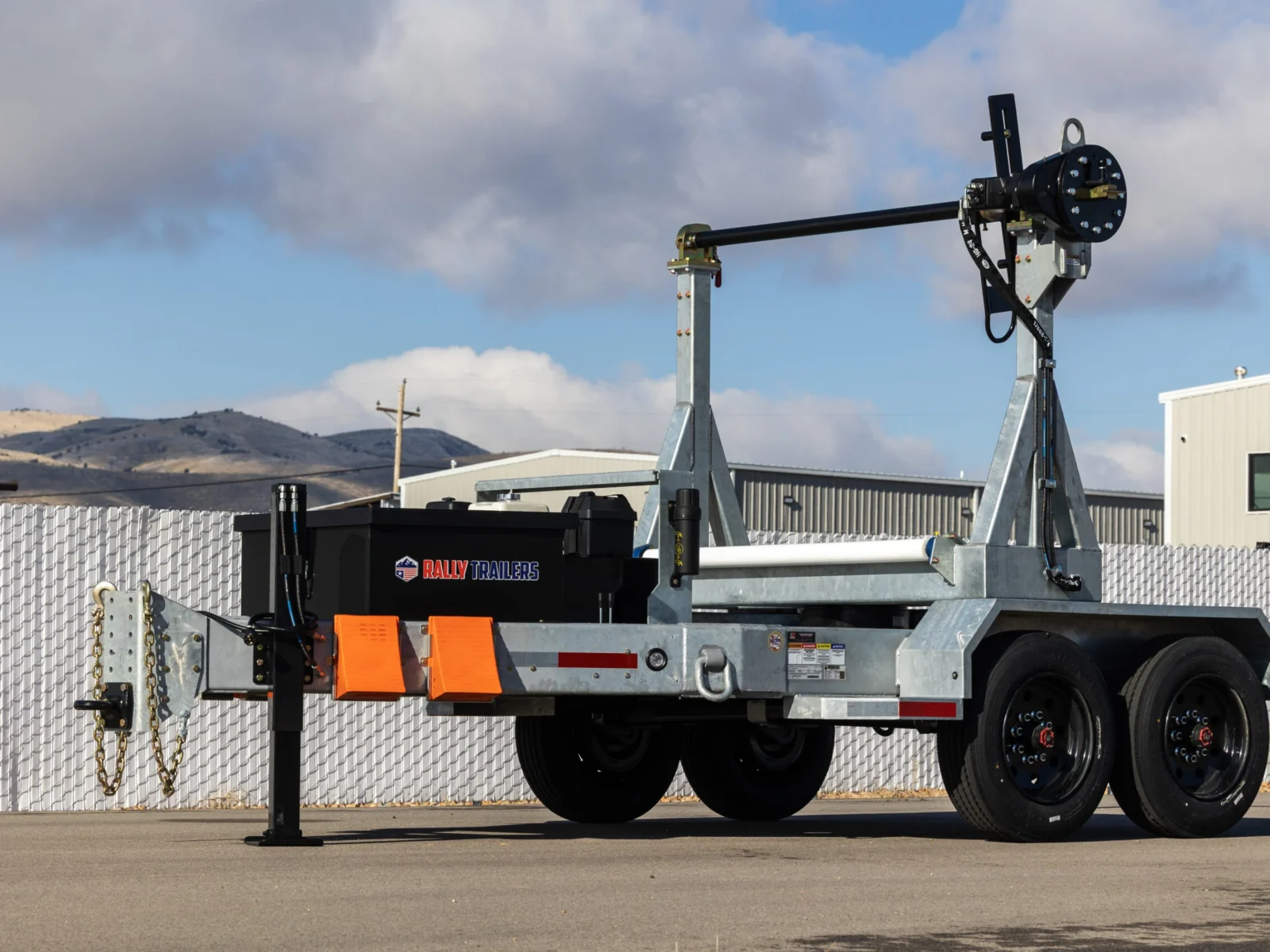

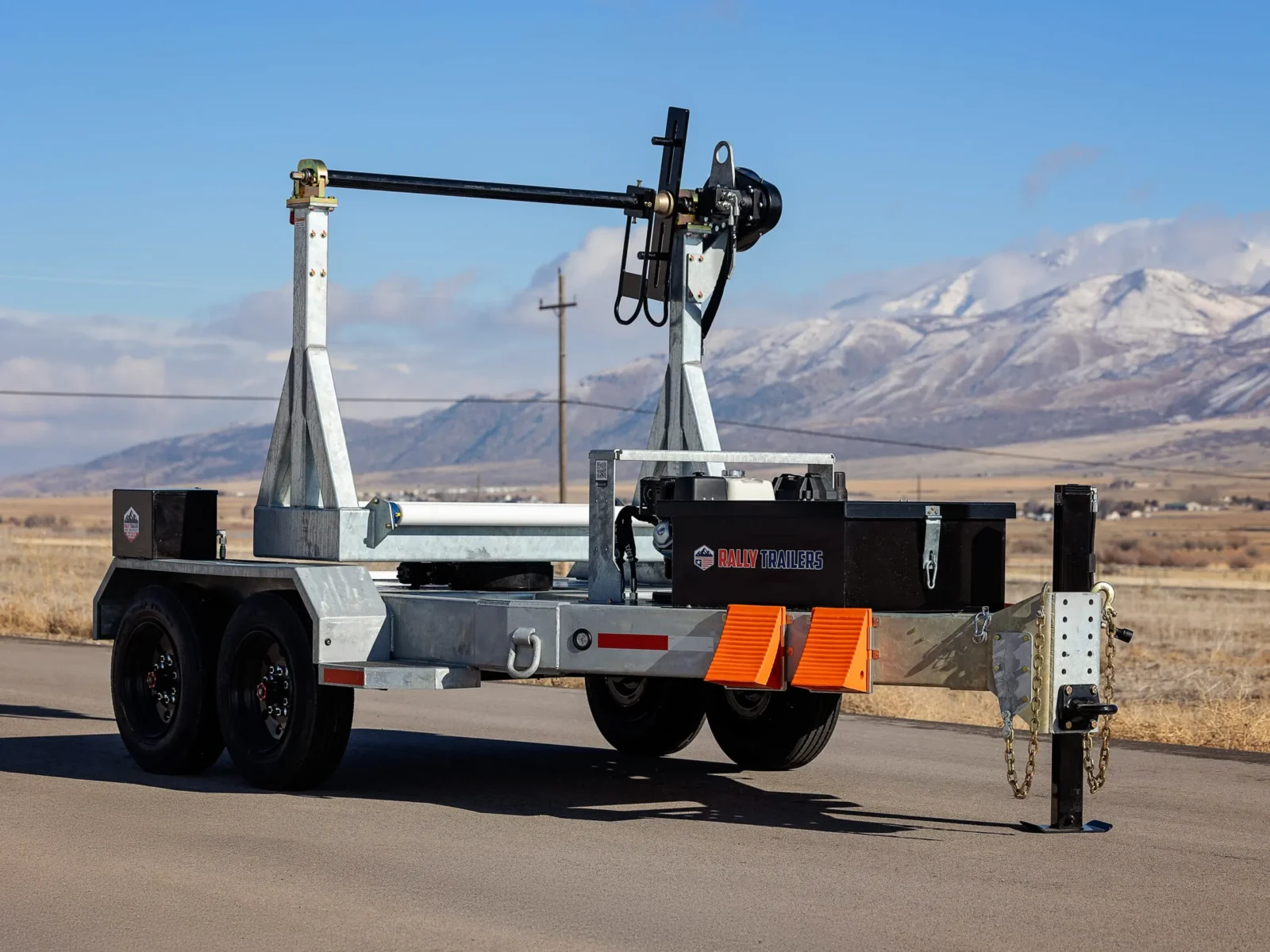

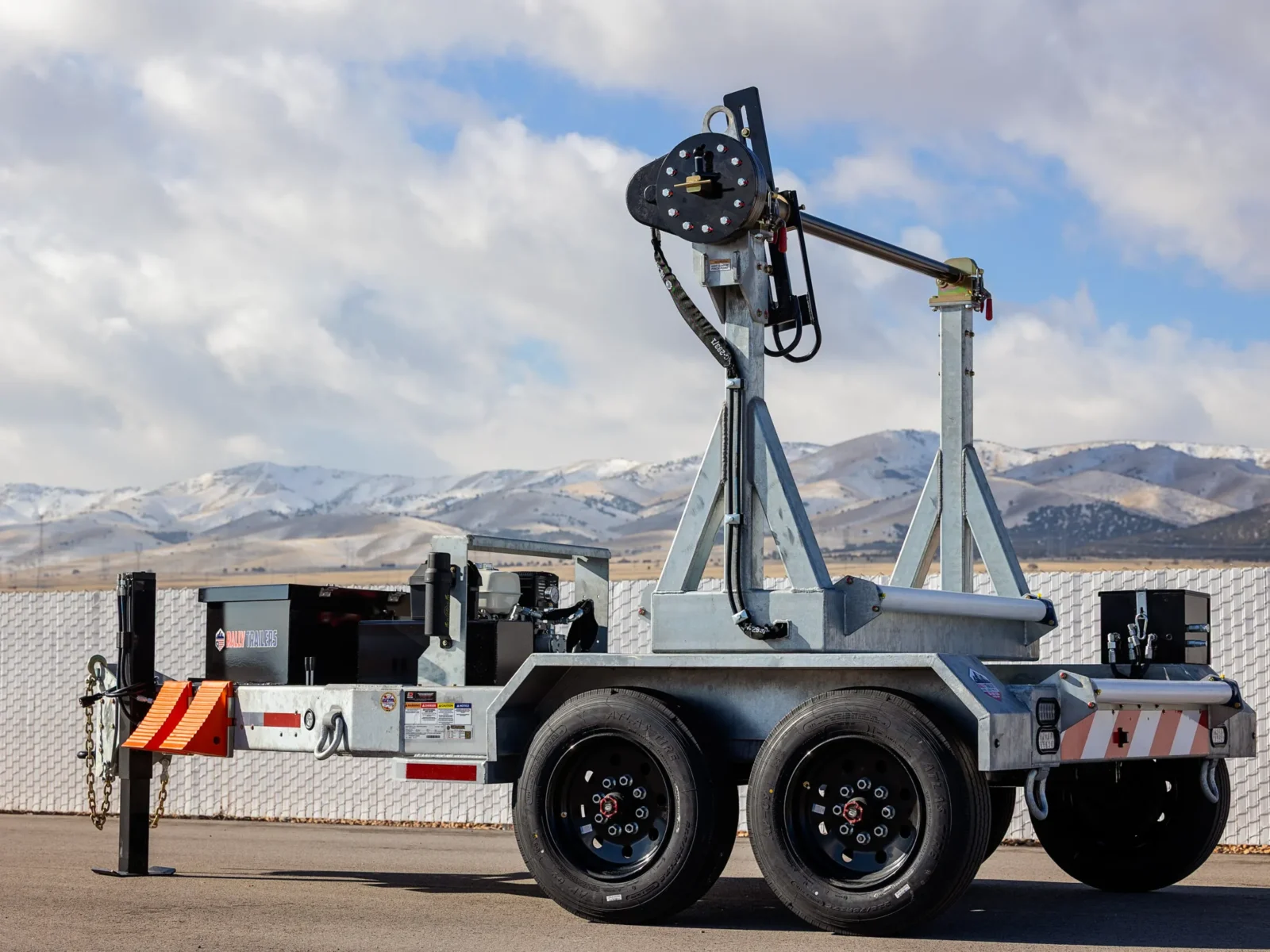

Single Turret Trailer

STRT-110

GVWR
14,800 lbs.
Payload
10,000 lbs.
Reel Width
62"
Reel Diameter
96"

Overview

About the Single Turret Trailer

See It In Action

Videos

Specs

Specifications

  • GVWR: 14,800 lbs
  • Payload Rating: 10,000 lbs
  • Reel Width: 62″
  • Reel Diameter: 96″
  • Trailer Length: 16′
  • Trailer Width: 102″

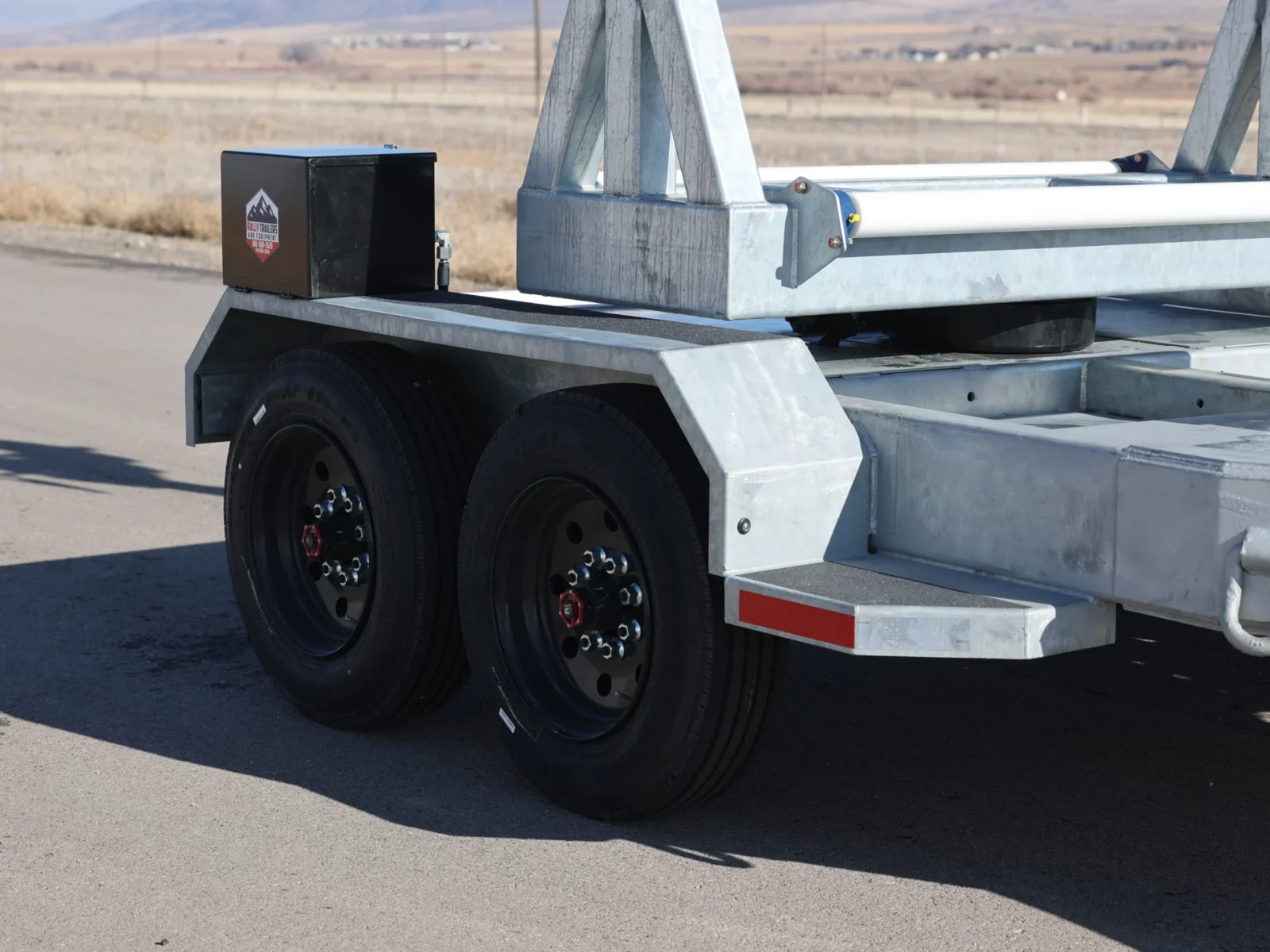

  • Tires: 215/75R 17.5

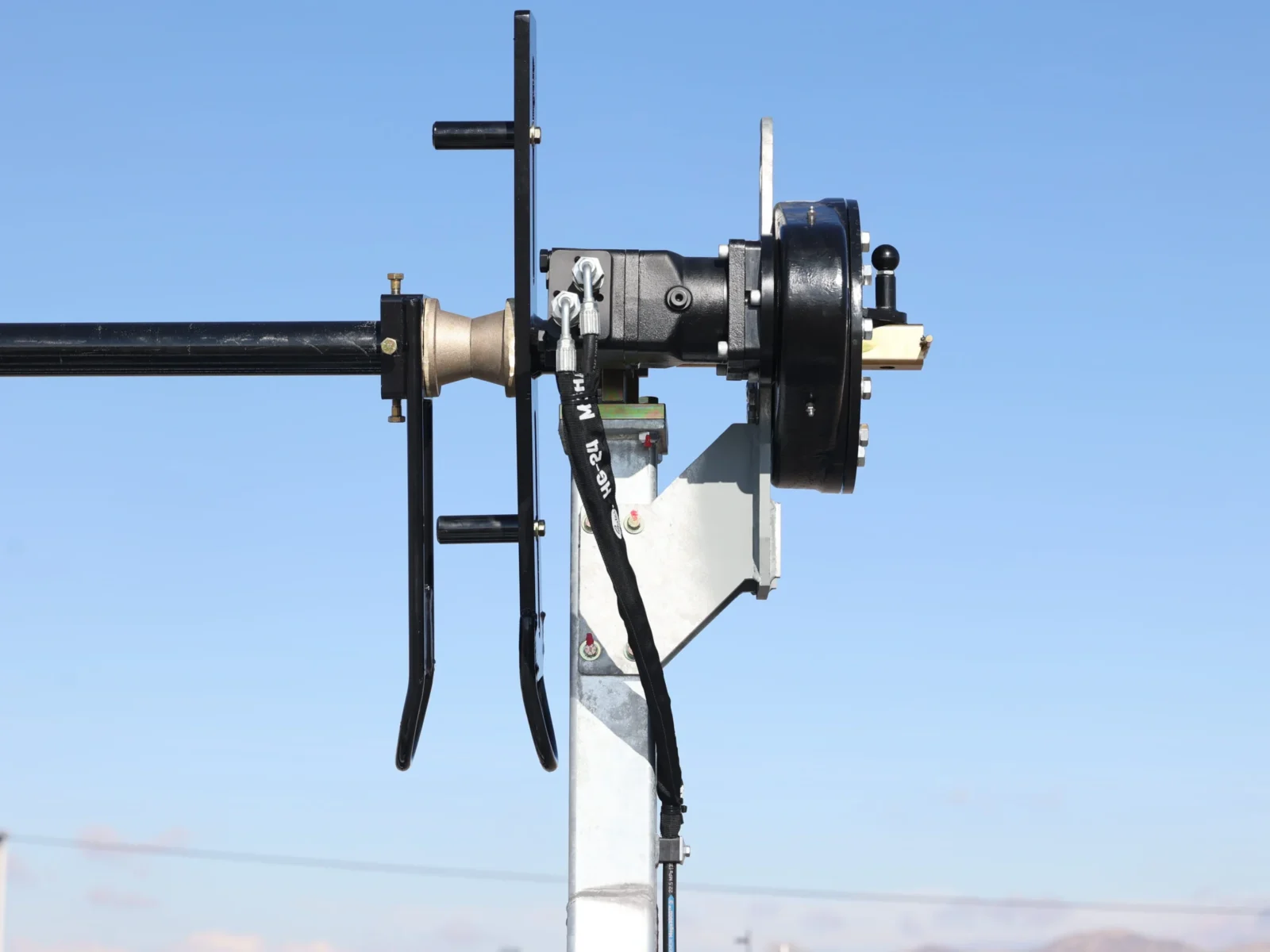

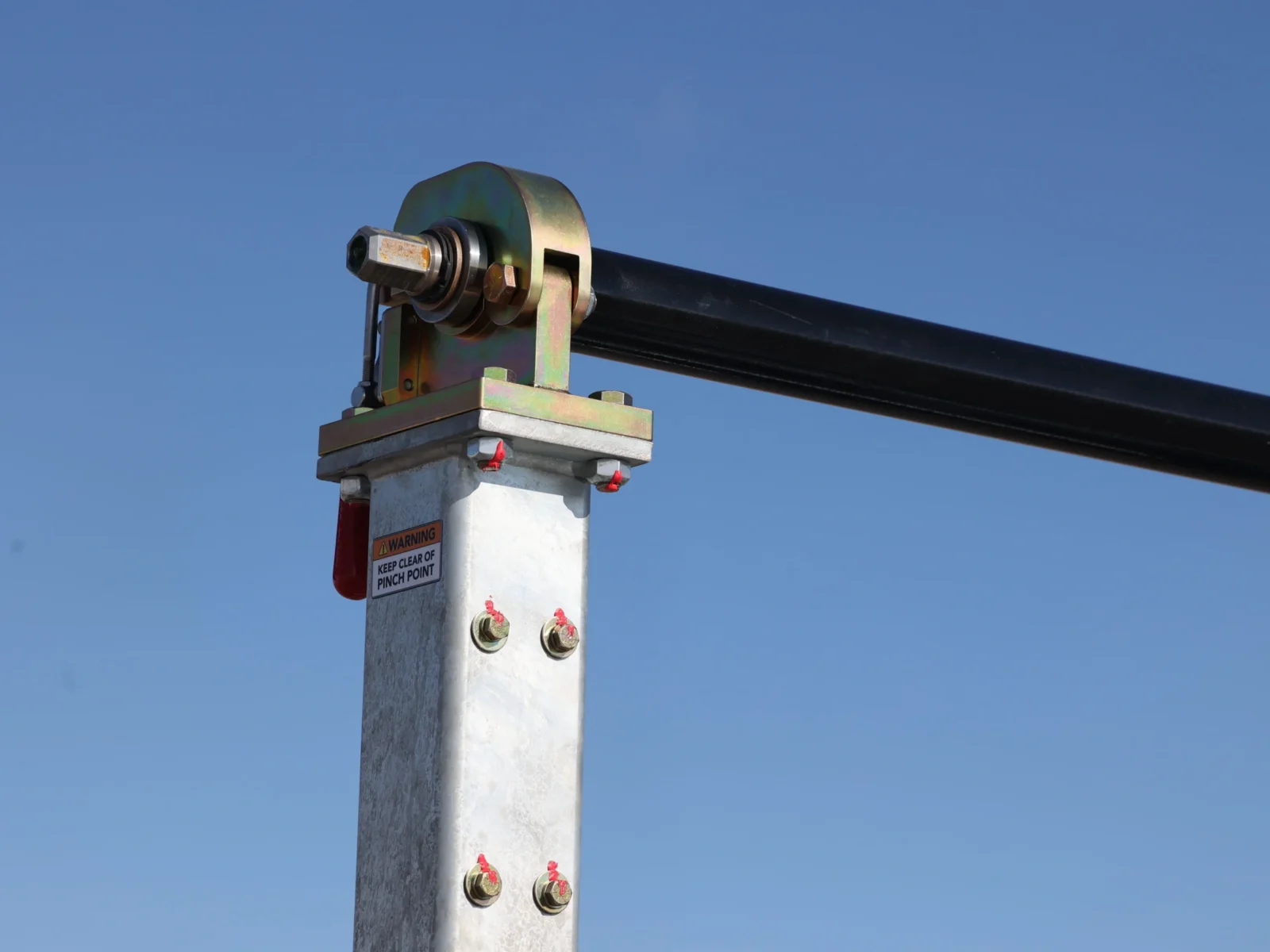

  • Roller Bar: 2 5/8″ with locking collars and centering cones

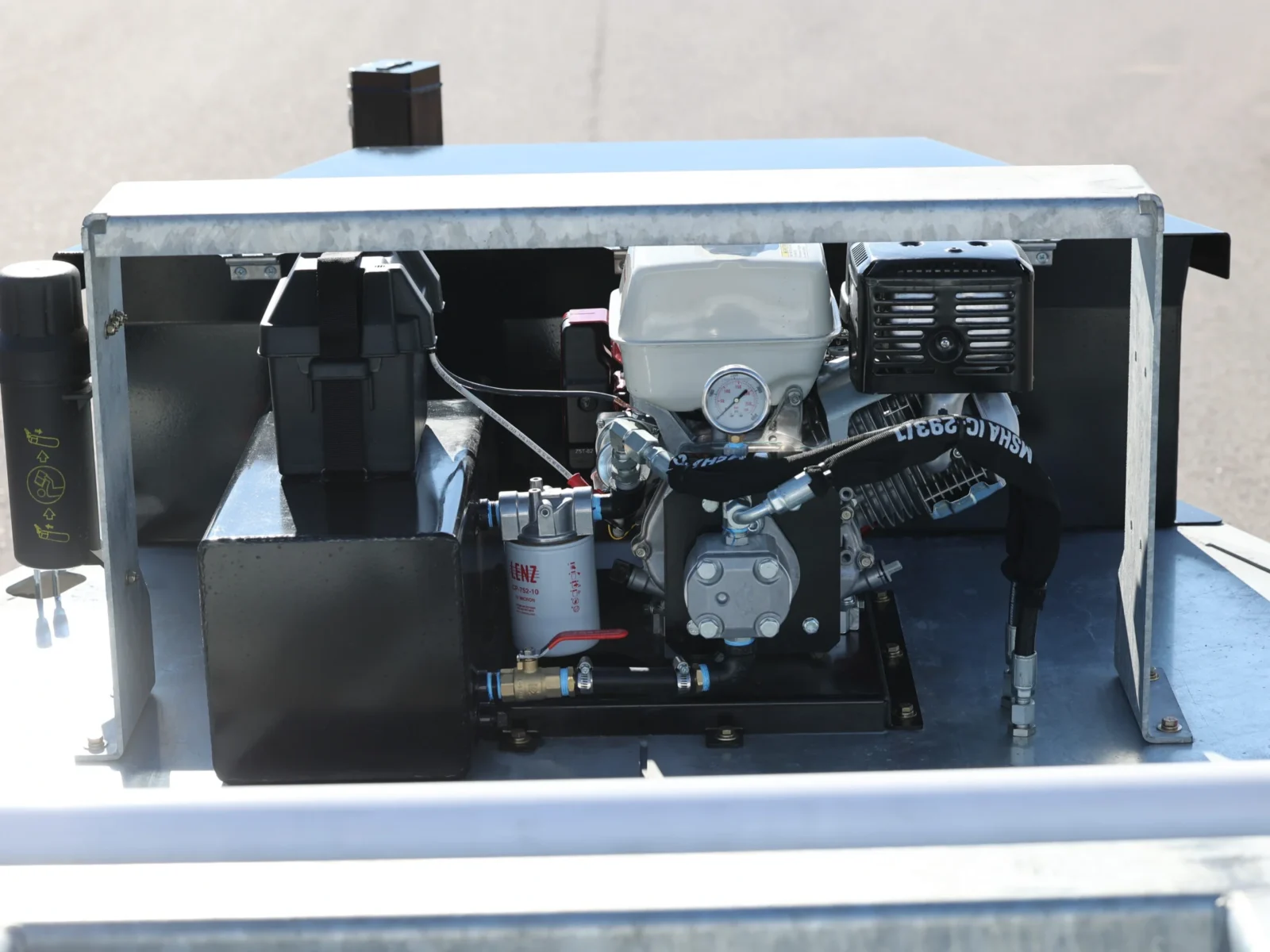

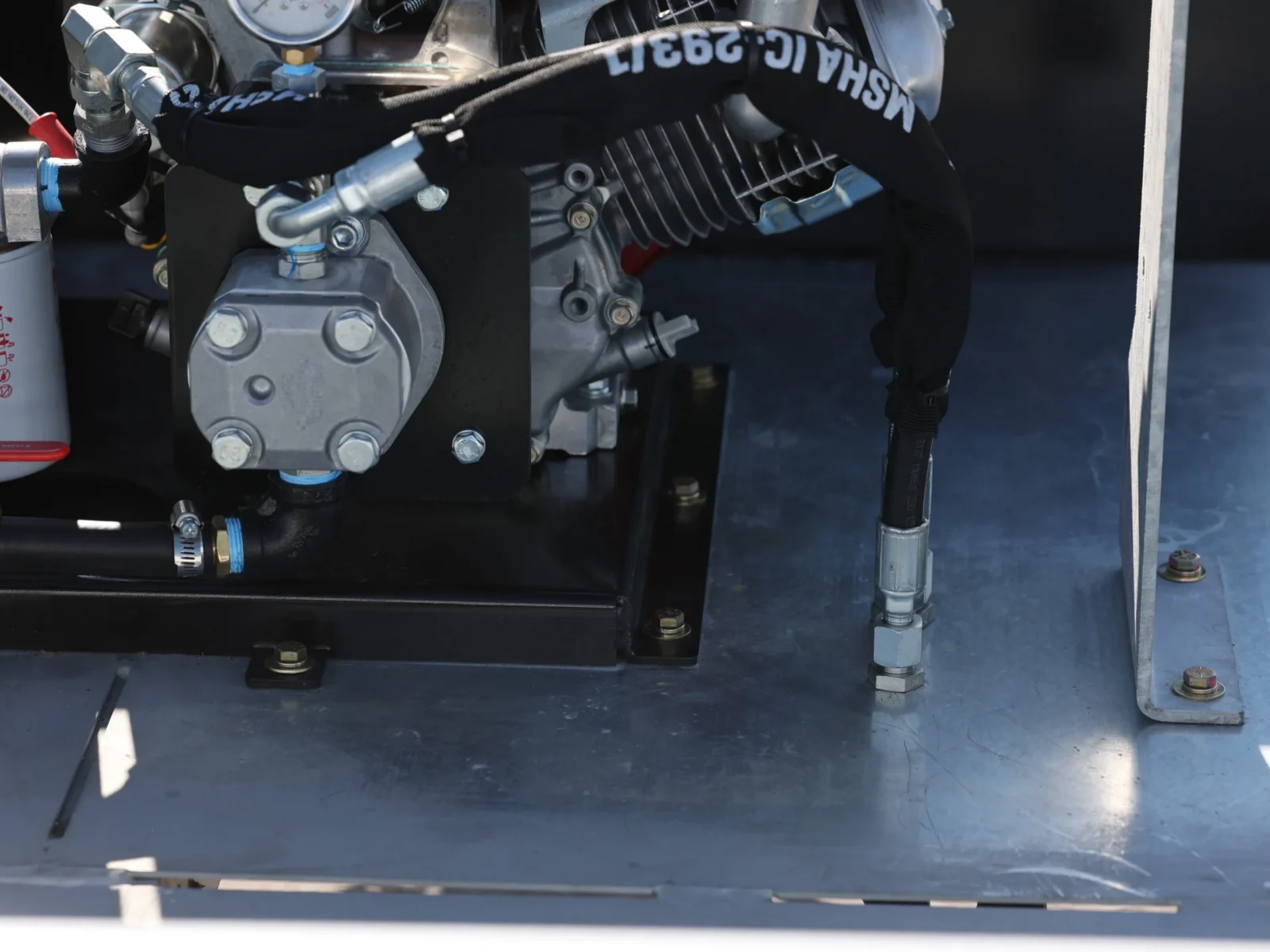

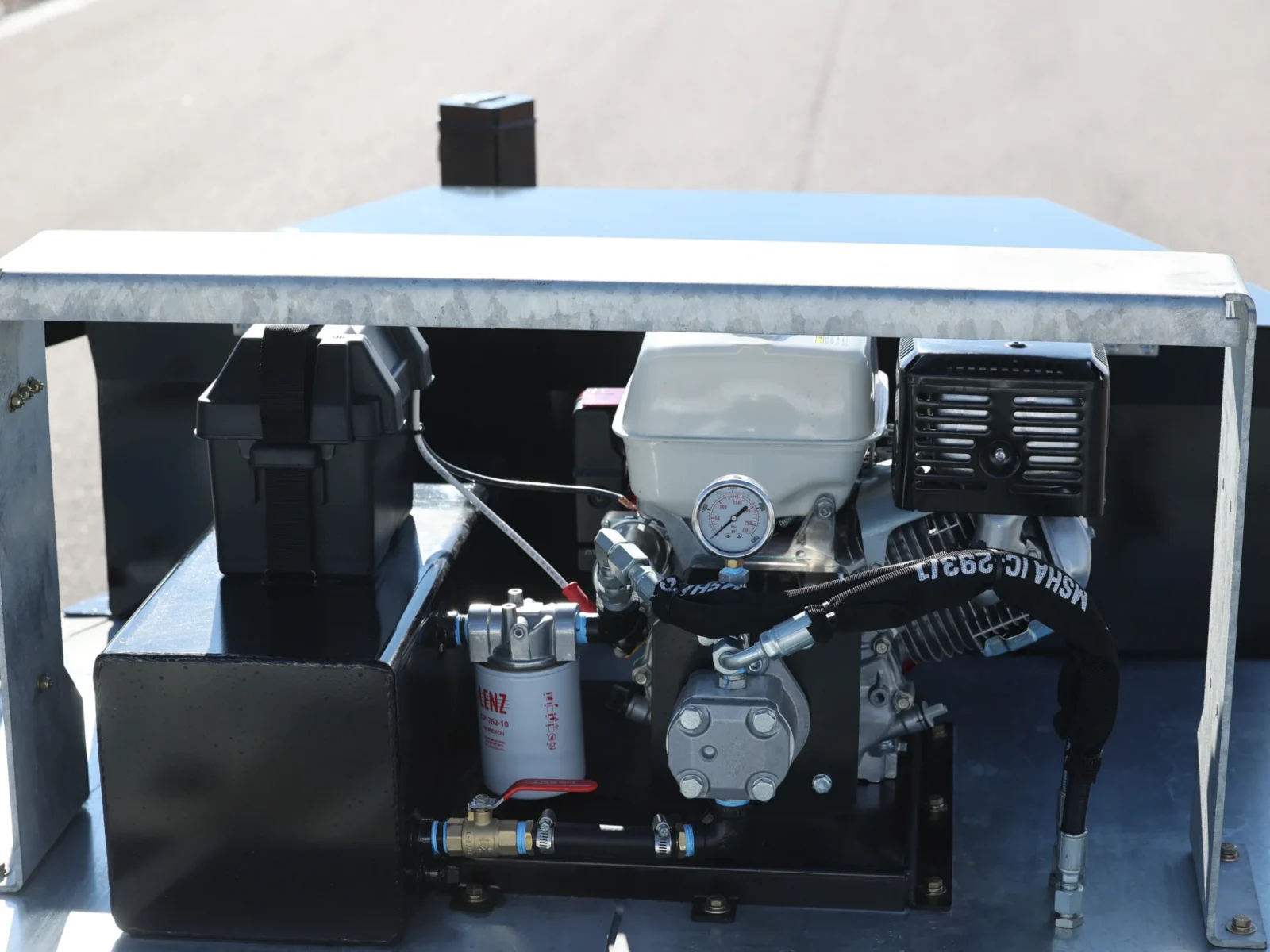

  • Honda Motor: 13 HP electric start

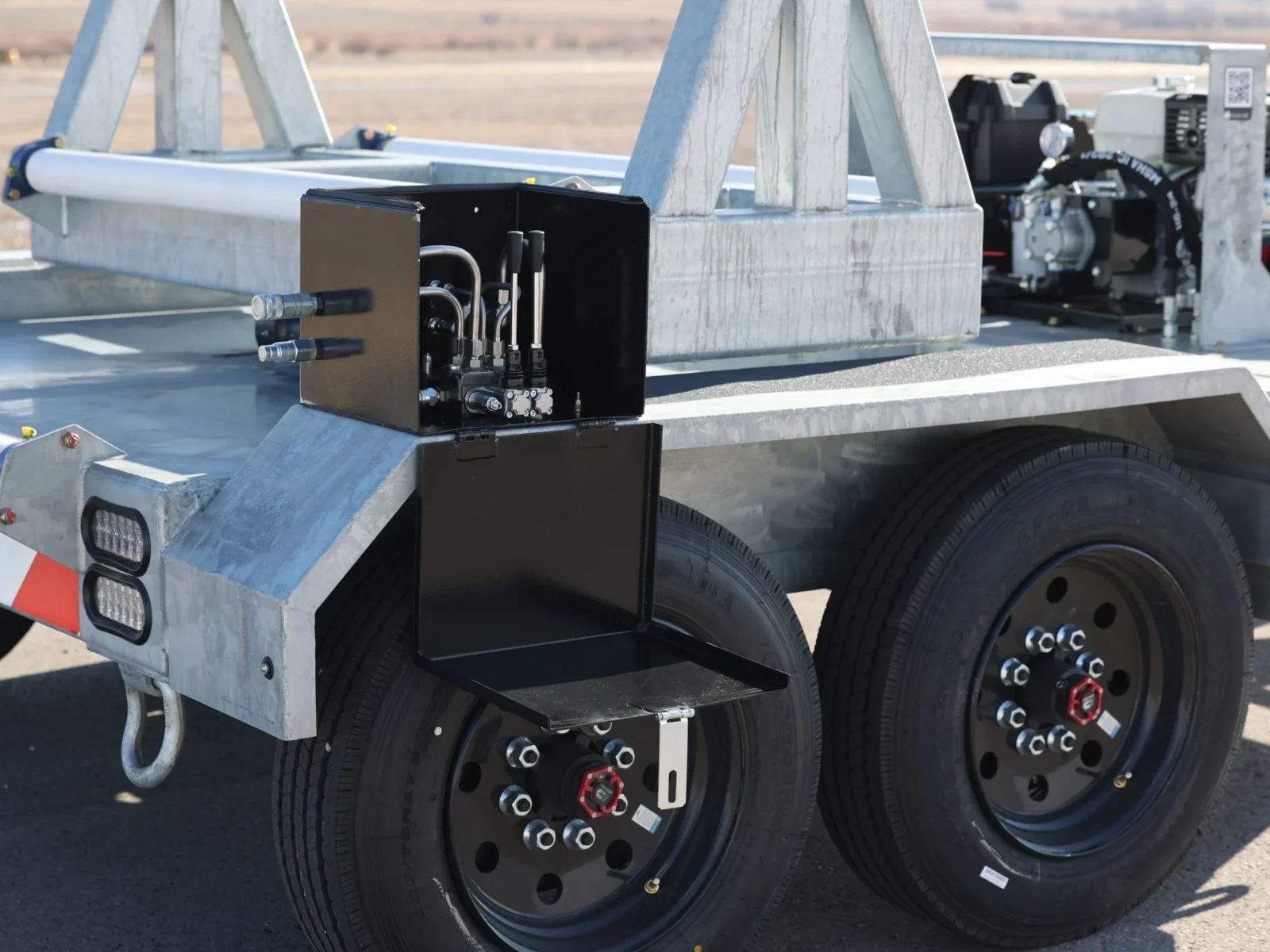

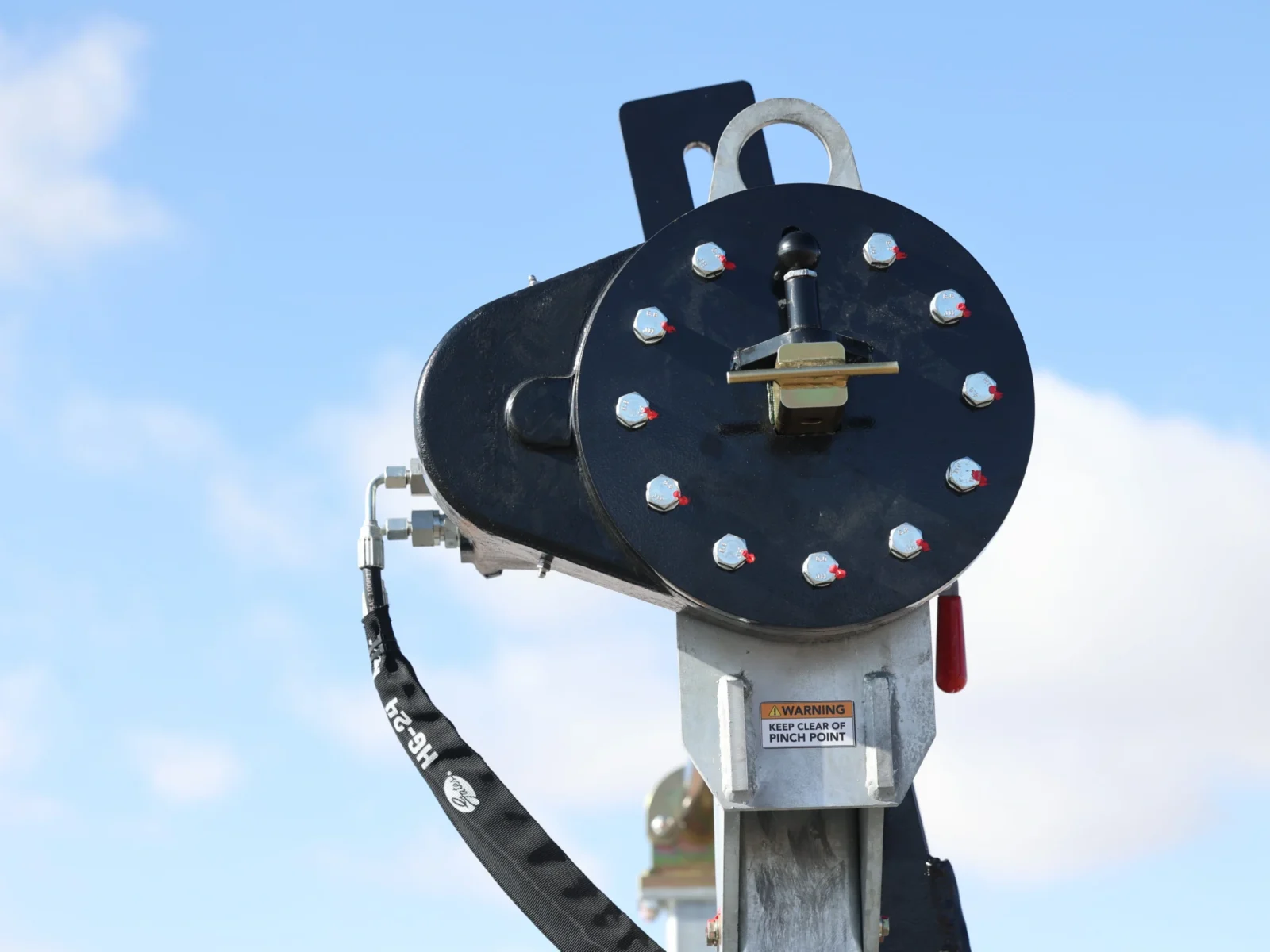

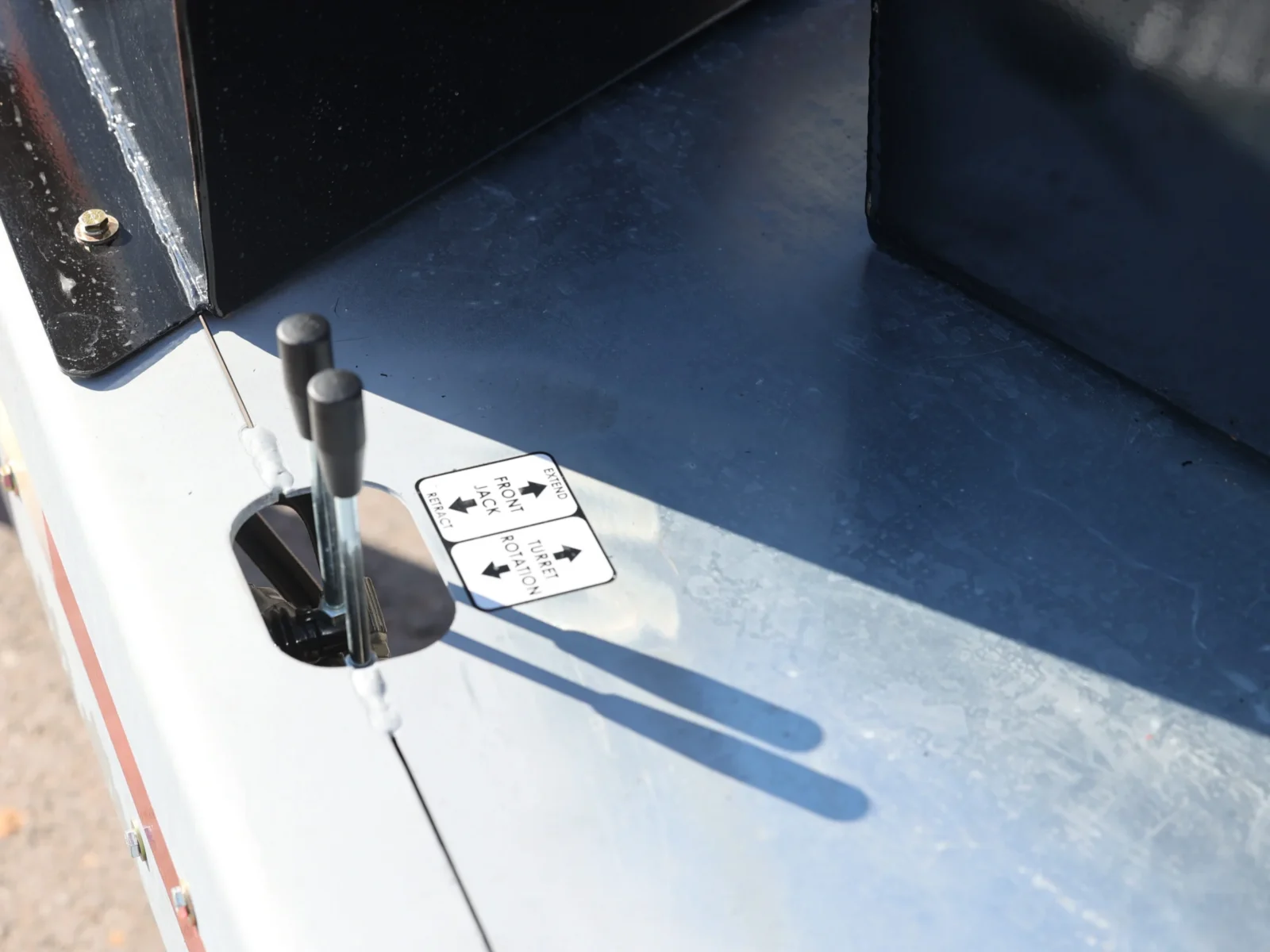

  • Hydraulic Turret Drive Control

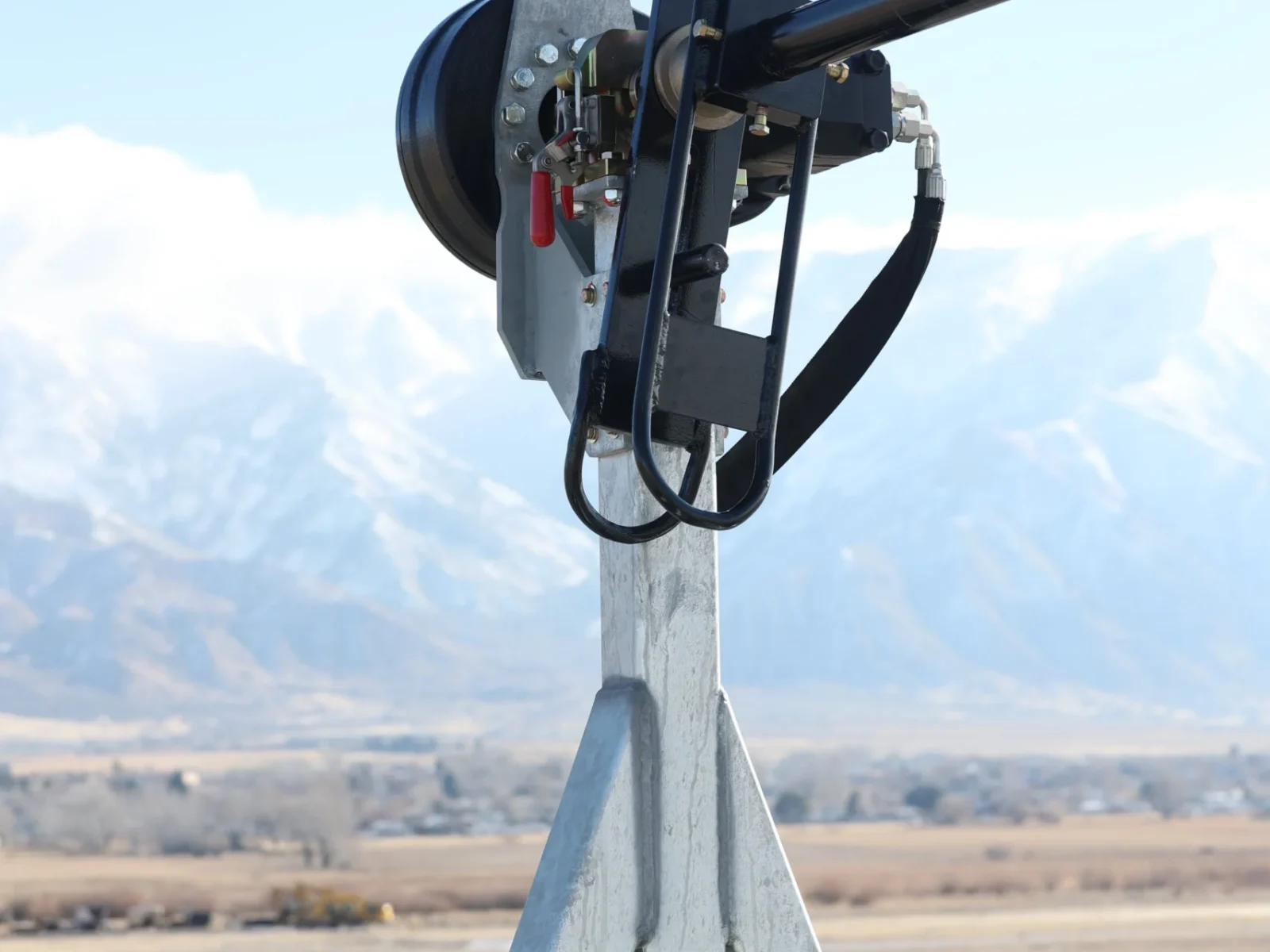

  • Self-Lock Turret: 360° rotation — 10,000 lbs capacity
  • Axles: 8K oil bath electric brake

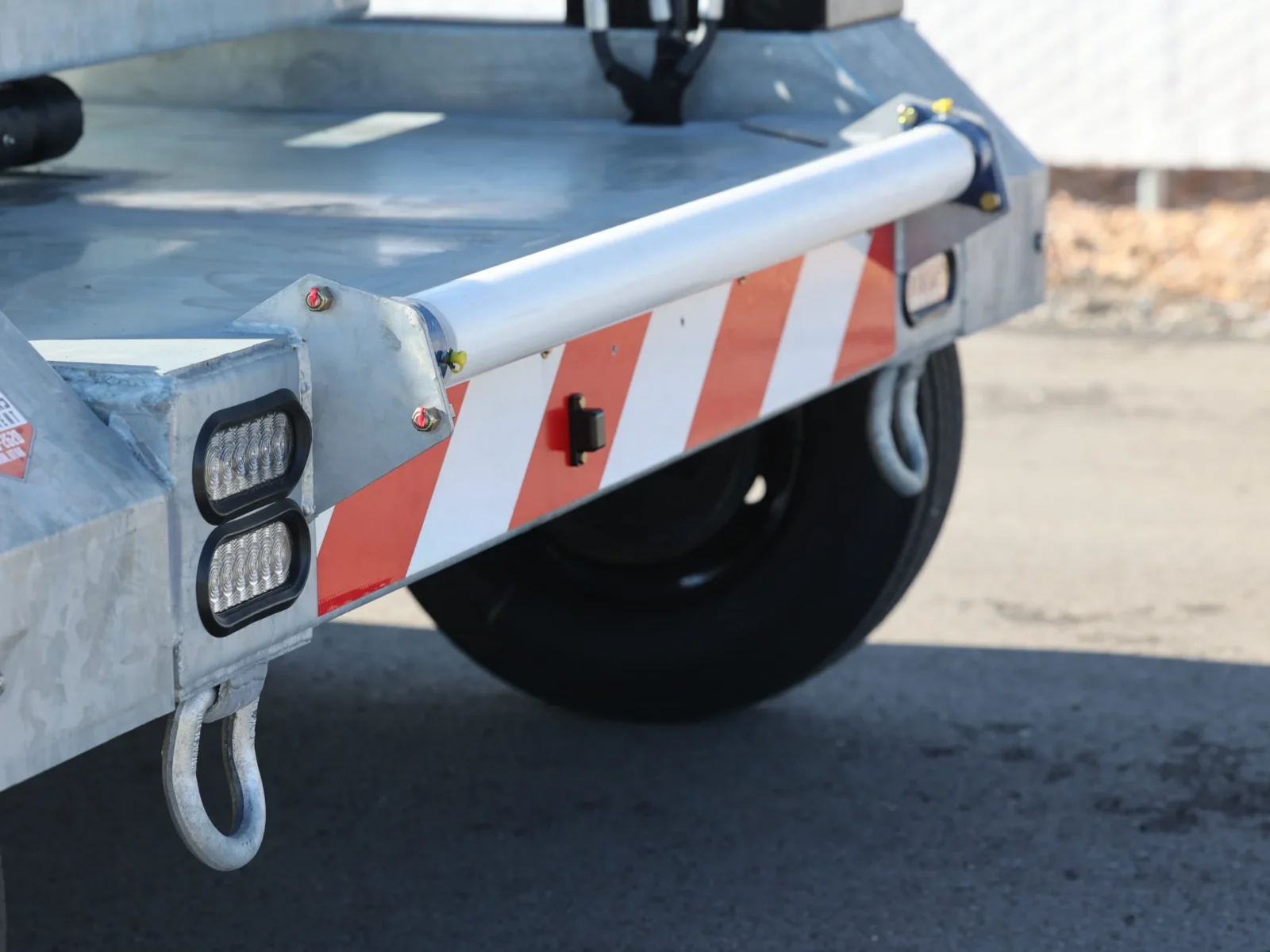

  • LED Lights
  • Electric Brakes

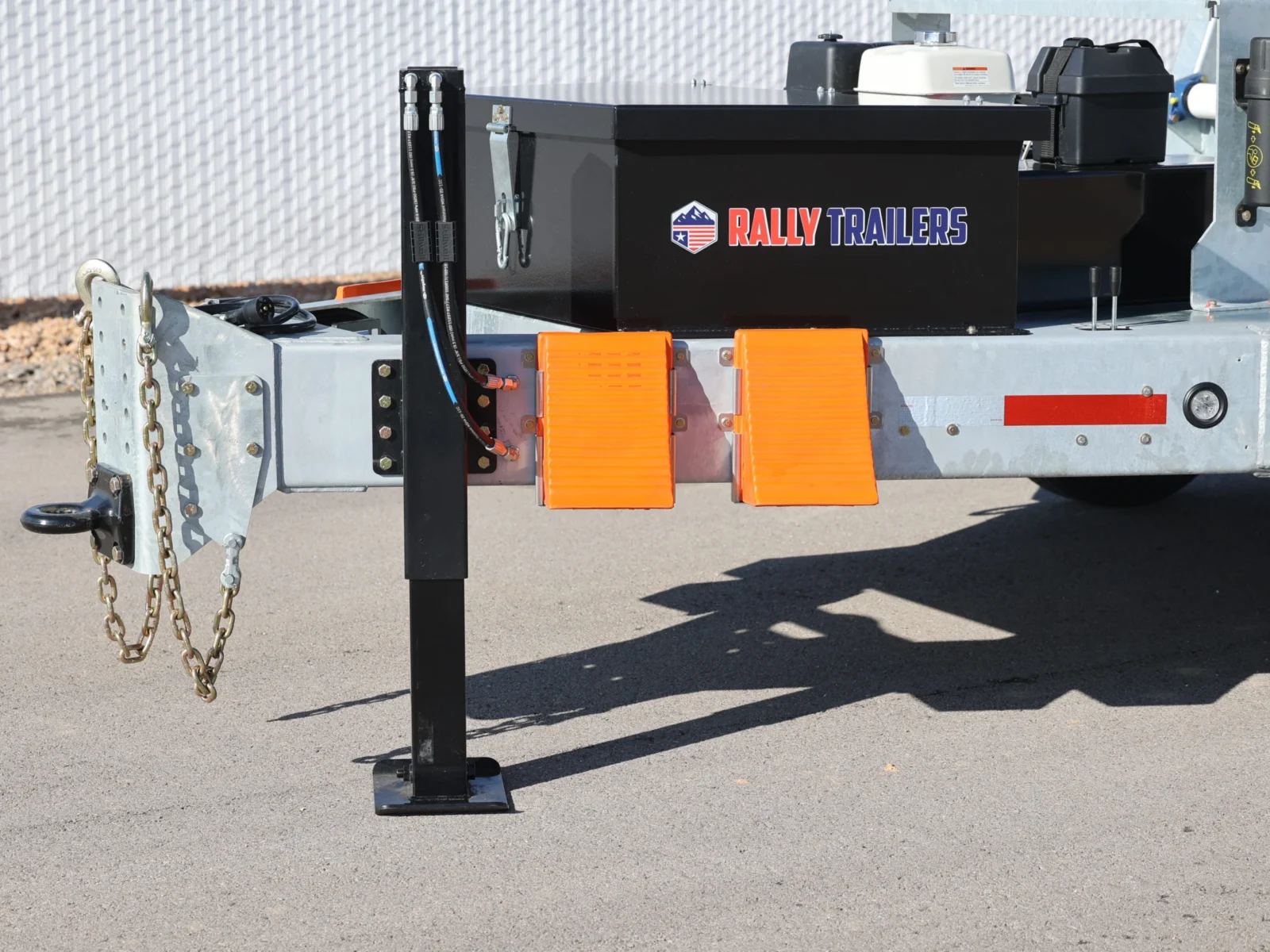

  • Hydraulic Stabilizer Jack: 12,000 lbs

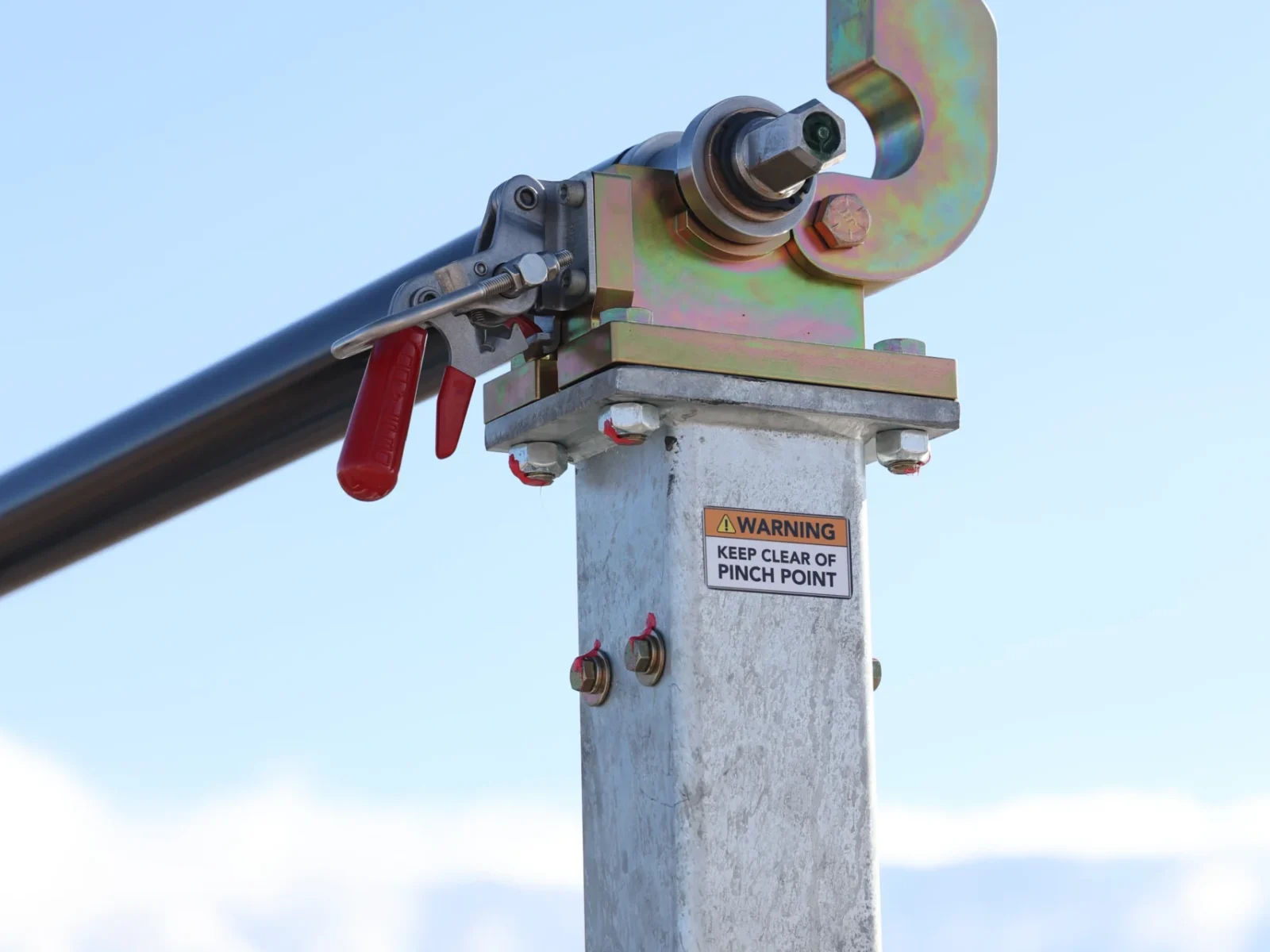

  • Pinless Bar Latch

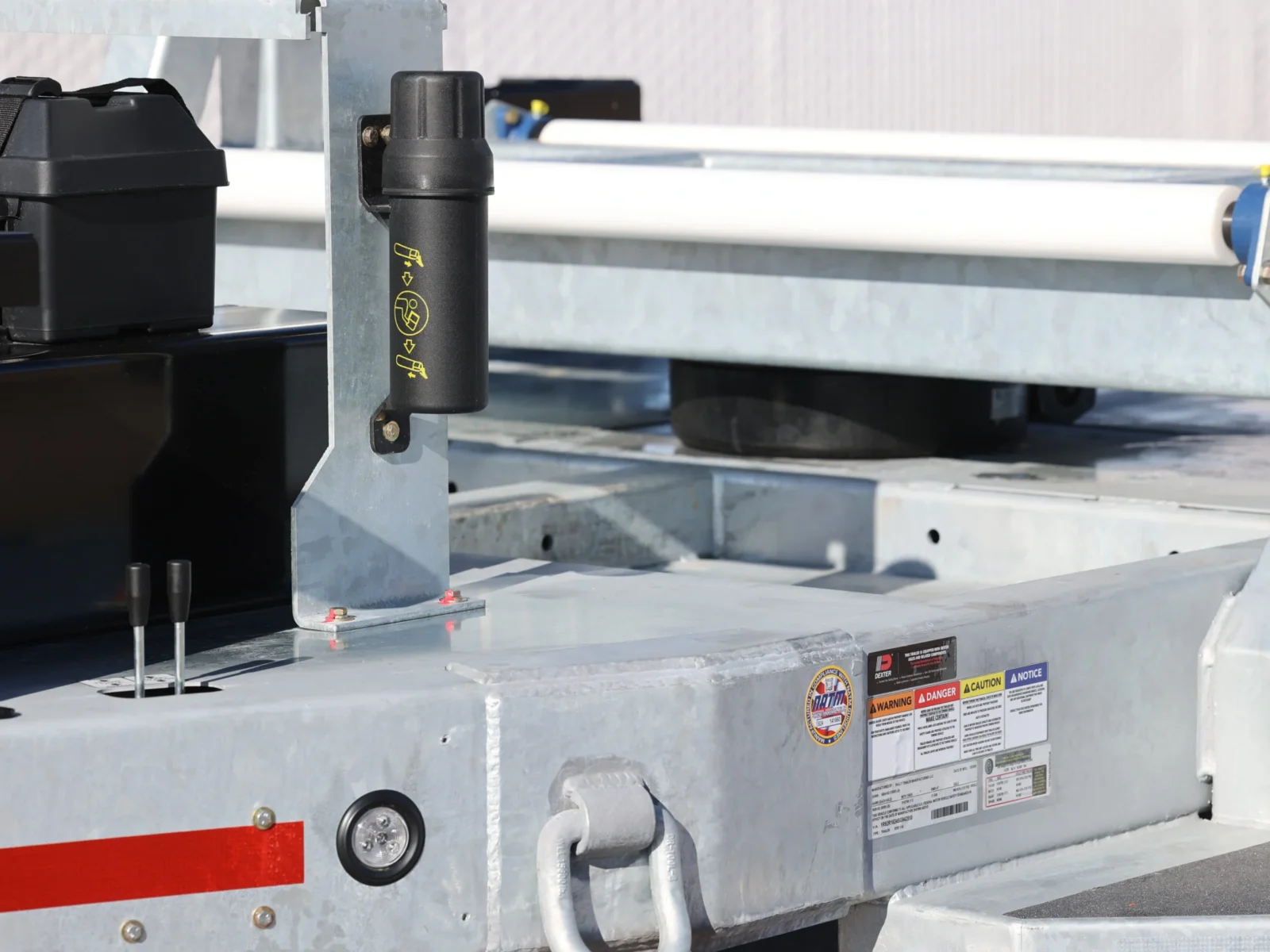

  • Document Holder

Customize

Features & Options

Included

  • Document Holder
  • LED Lights
  • Electric Brakes
  • Roller Bar
  • Self-Lock Turret with 360° Rotation
  • 13 HP Electric Start
  • 8K Oil Bath Axle with Electric Brakes
  • 12,000 lbs. Hydraulic Stabilizer Jacks
  • Pinless Bar Latch
  • Hydraulic Turret Drive Control

Available Add-Ons

  • Galvanized Finish
  • Tension Brake
  • Gear-Driven Rewinder

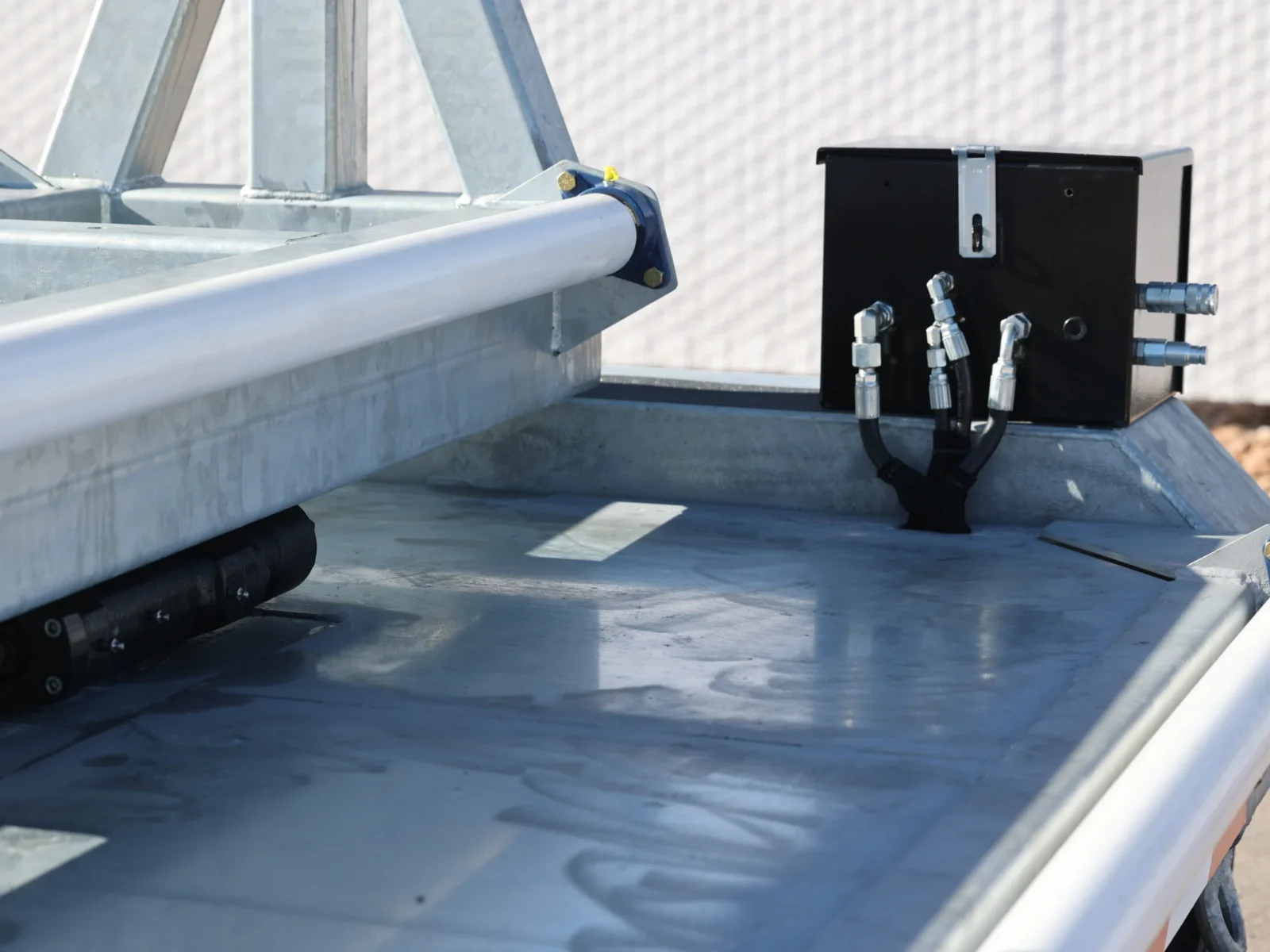

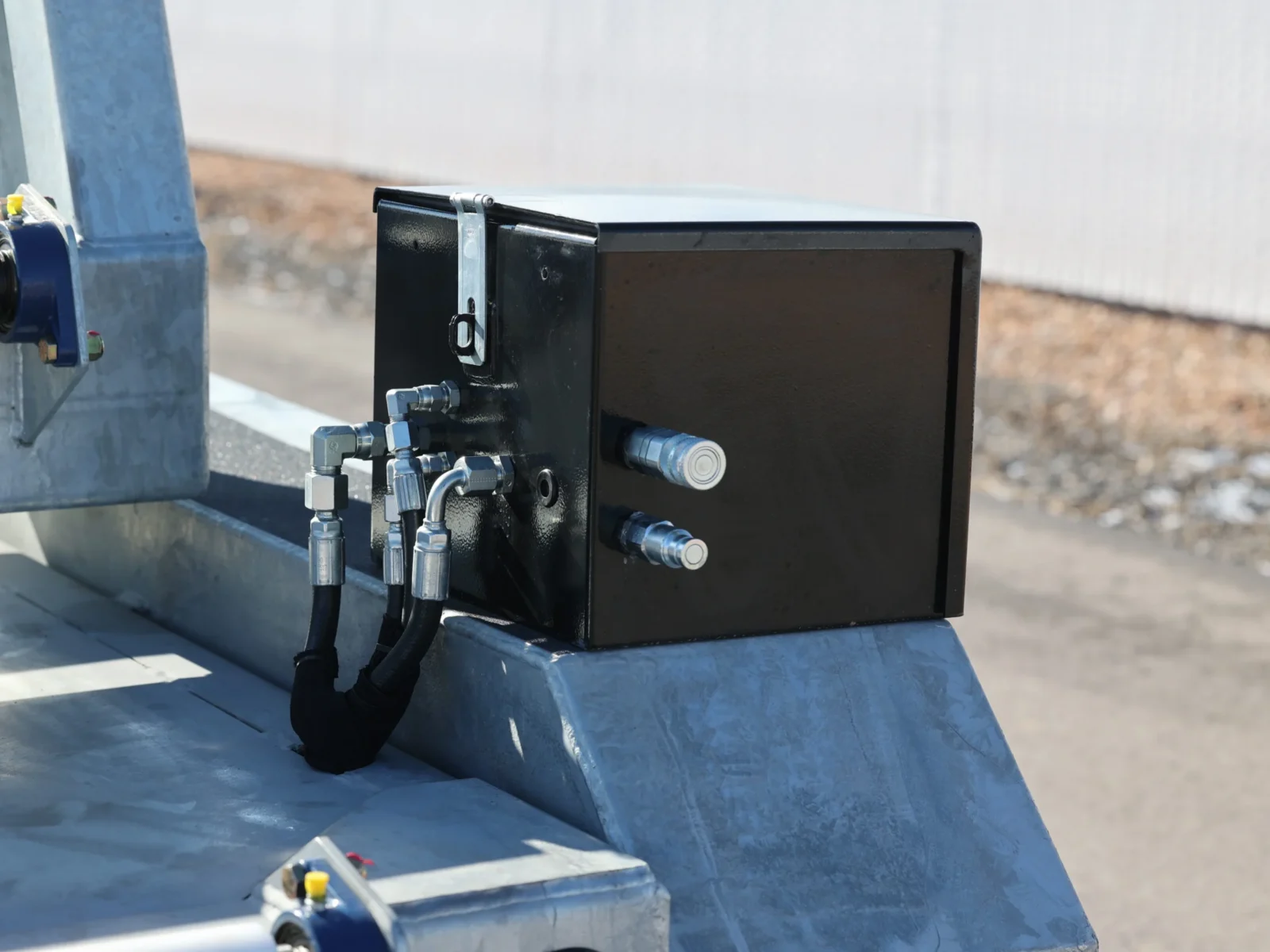

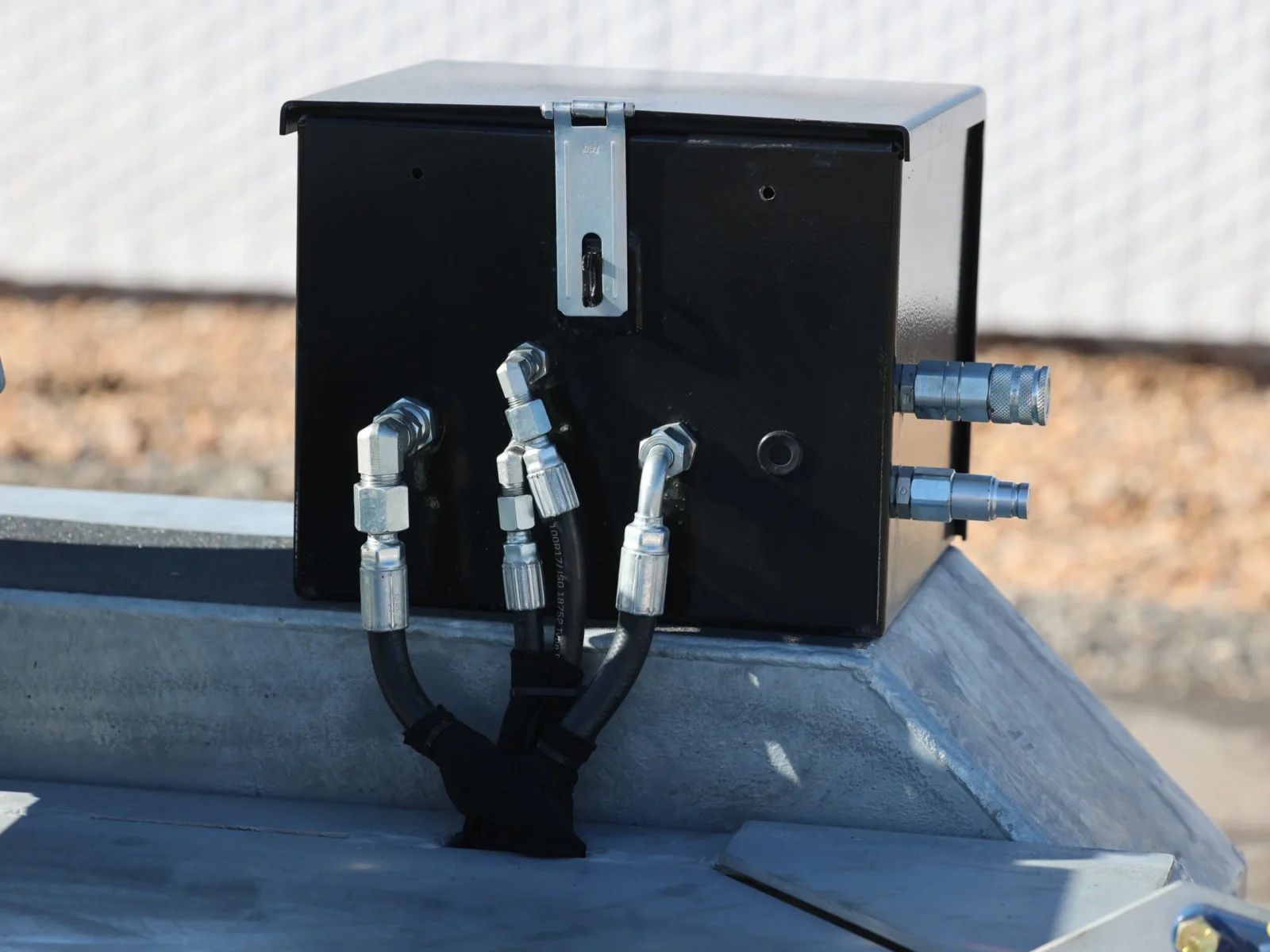

  • Auxiliary Hydraulic Circuit
  • Fair Leads

Make It Yours

Upgrade Your Trailer

  • Tension Brake

  • Gear-Driven Rewinder

  • Fair Leads

  • Auxiliary Hydraulic Circuit

  • Galvanized Finish
