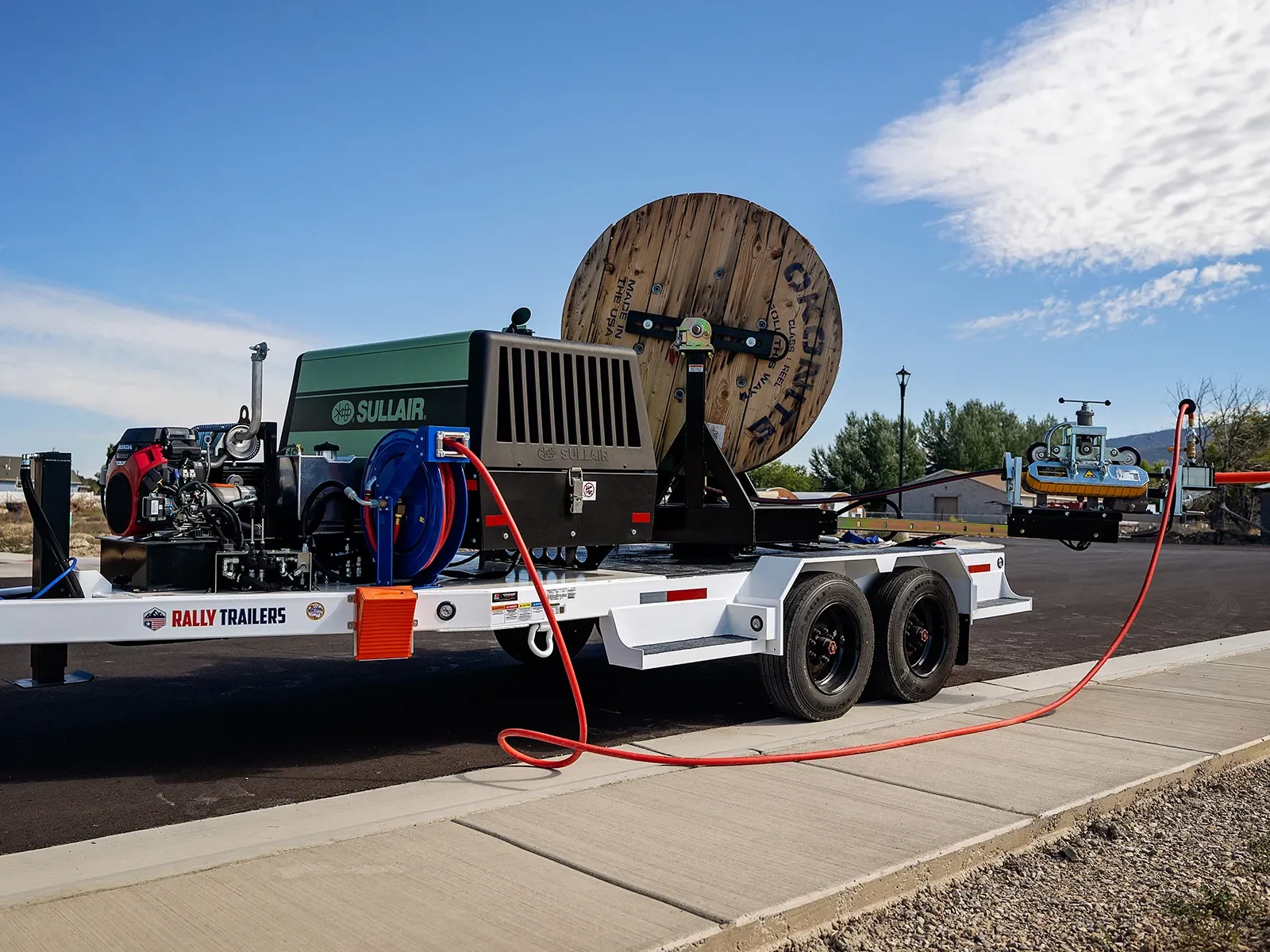

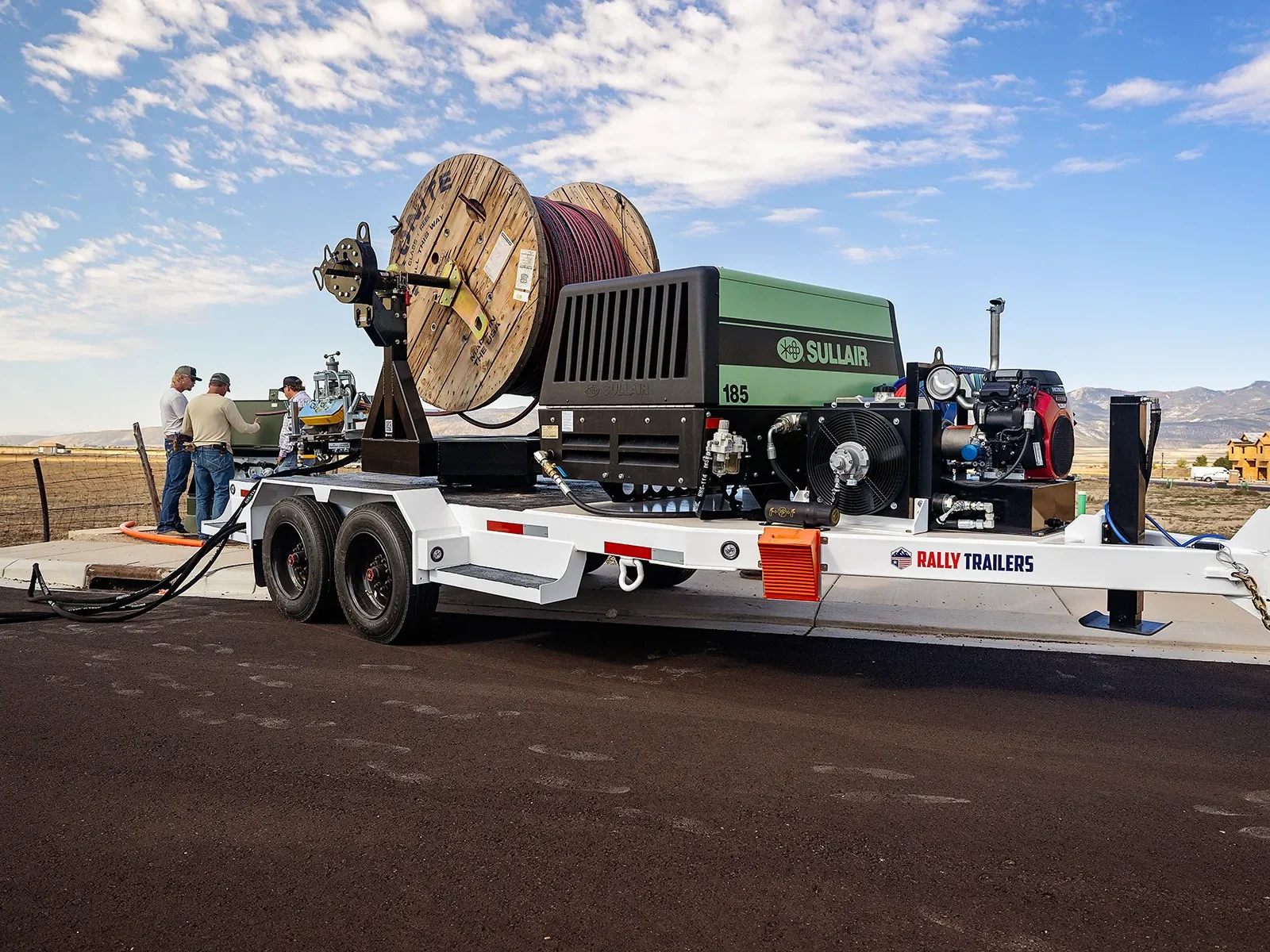

DF6 TRAILER

DF6-TT

GVWR
12,000 lbs.
Payload
8,000 lbs.
Reel Width
48"
Reel Diameter
60"

Overview

About the DF6 TRAILER

See It In Action

Videos

Specs

Specifications

  • GVWR: 12,000 lbs.
  • Payload Rating: 8,000 lbs.
  • Reel Width: 48″
  • Reel Diameter: 60″
  • Trailer Length: 15′
  • Trailer Width: 96″
  • Tires: 235/75R17.5

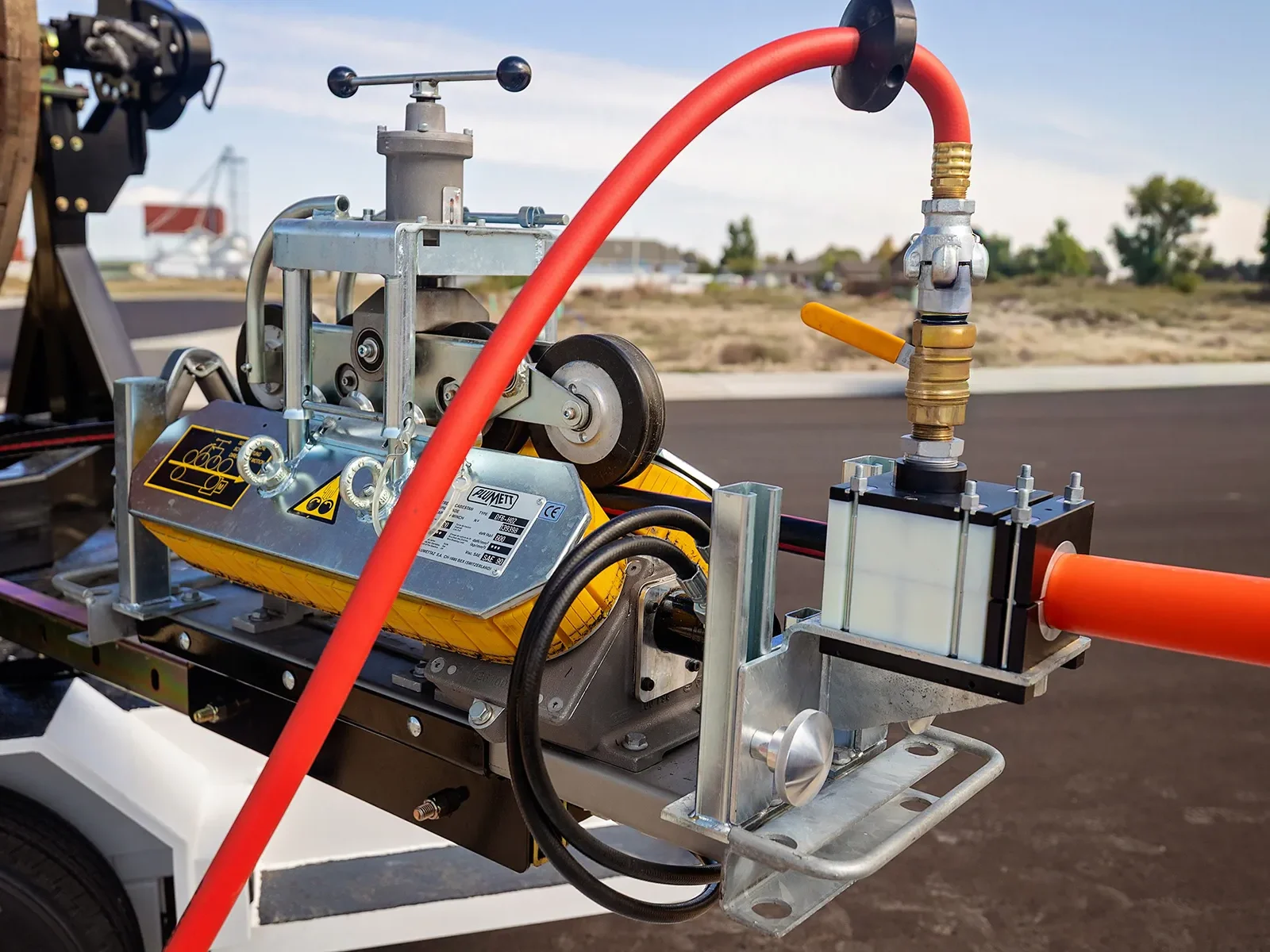

  • Plumettaz DF6 Cable Pusher
  • 185 CFM Sullair Compressor

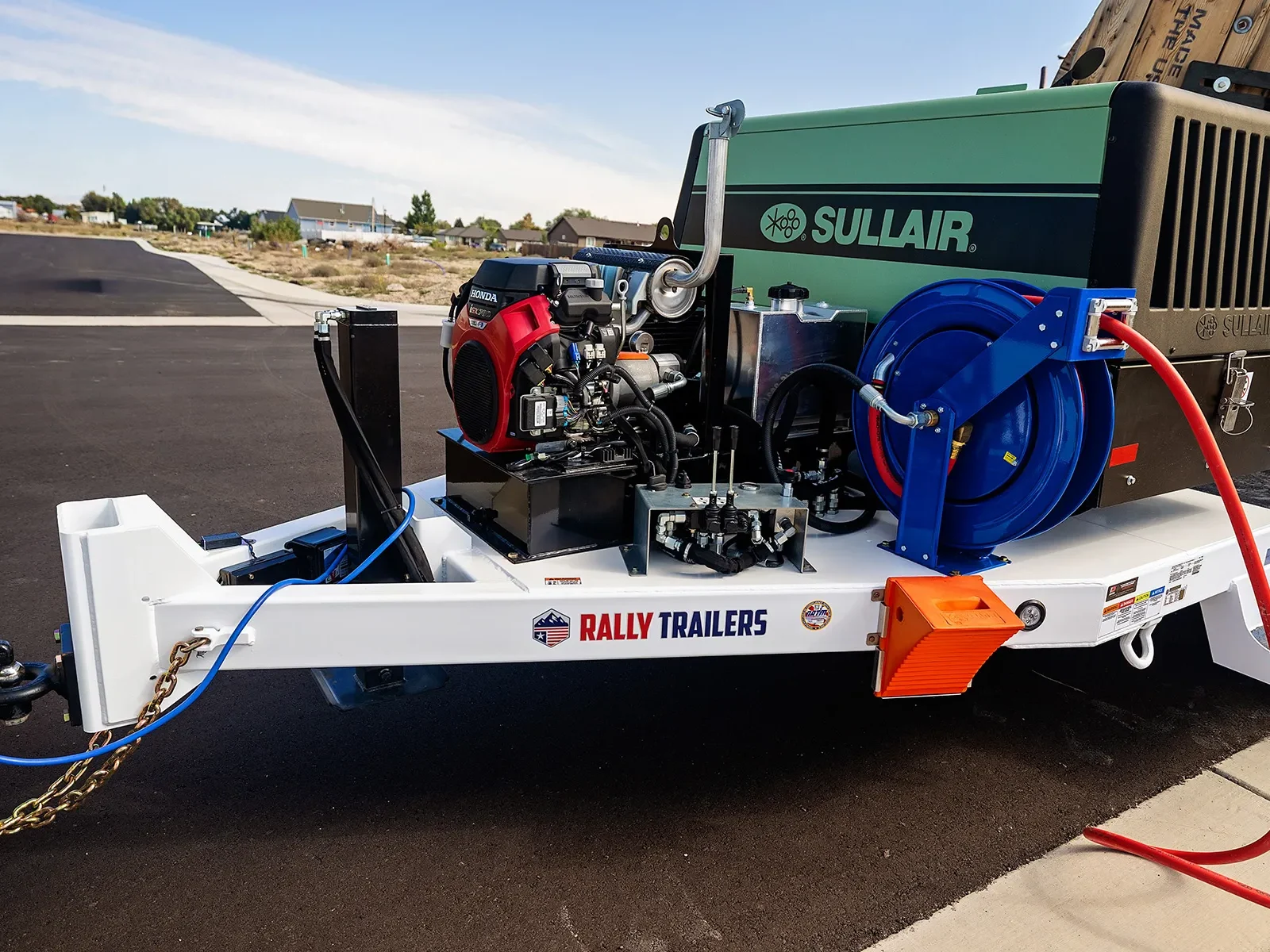

  • 22 HP Motor
  • (1) 2 5/8″ Roller Bar
  • (2) Locking Collars with lifting eyes
  • (2) Centering cones
  • Pinless locking system

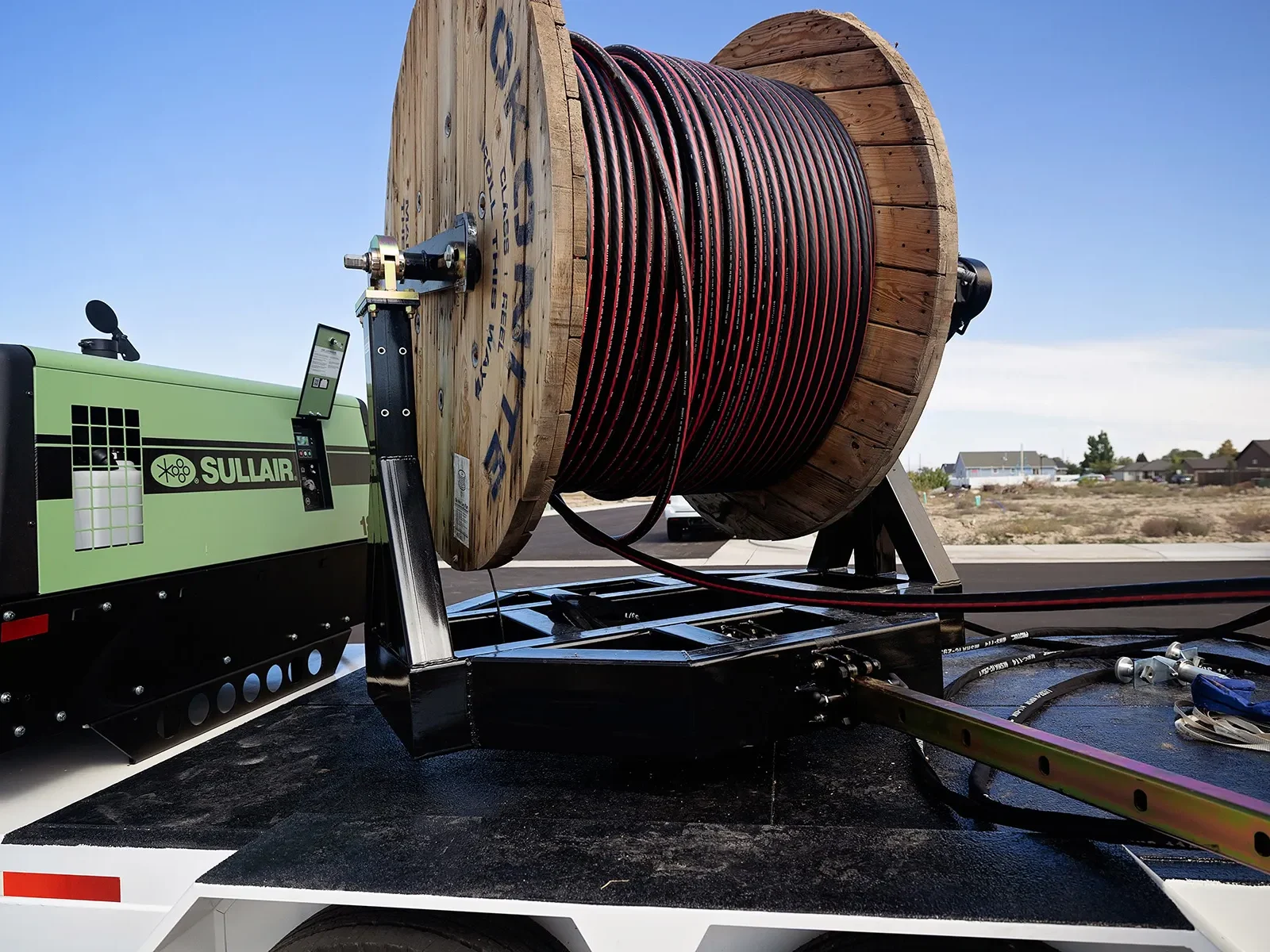

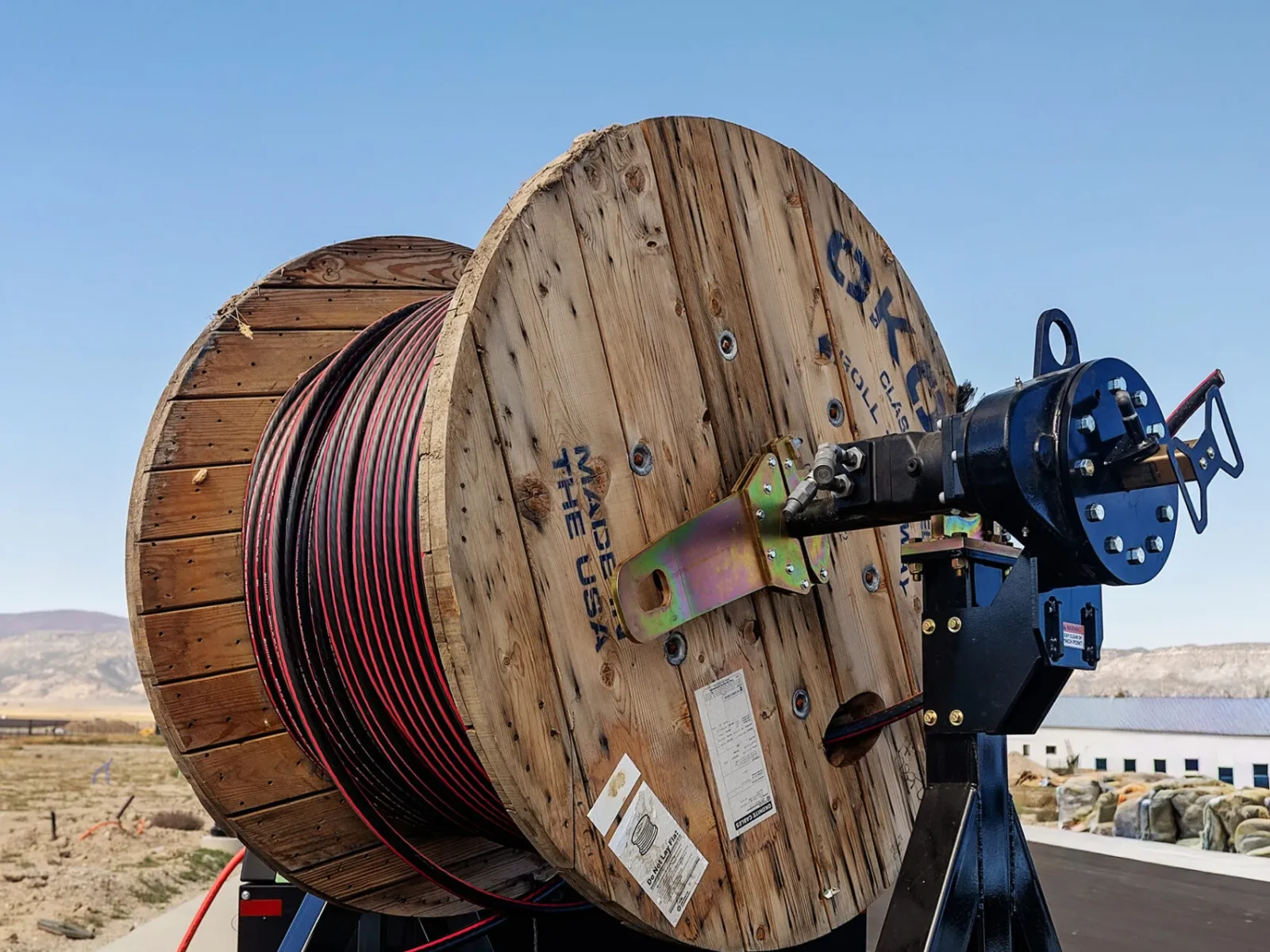

  • (1) Self-Lock Hydraulic Turret with 360 Degree Rotation
  • Gear Driven Rewinder
  • Auxiliary Hydraulic Connect
  • (2) 8K Spring Axle with Oil Bath Hubs
  • (1) Hydraulic Jack
  • Running Steps
  • (2) Tire Chocks with Aluminum Holders
  • LED Lights
  • Electric Brakes
  • Document Holder

Customize

Features & Options

Included

  • Document Holder
  • LED Lights
  • Electric Brakes
  • Roller Bar
  • Locking Collars
  • Centering Cones
  • Hydraulic Jack
  • Pinless Locking System
  • Gear-Driven Rewinder
  • Plumettaz DF6 Cable Pusher
  • 185 CFM Sullair Compressor
  • 22 HP Motor
  • Self-Lock Hydraulic Turret with 360° Rotation
  • Auxiliary Hydraulic Connect
  • 8K Spring Axle with Oil Bath Hubs
  • Running Steps

Available Add-Ons

  • Color Options
  • Tension Brake
  • Remote Control

Make It Yours

Upgrade Your Trailer

  • Custom Colors

    Match your trailer to your brand with custom color options. Stand out on the job site with a clean, professional look built to represent your company.

  • Tension Brake

  • Remote Control

Spec Sheet PDF Owner Manual PDF
