Telecom / Power
6 Position Electric Hydraulic
(EHRB-6P)
GVWR
reel
Width
reel
Diameter
Payload
Description

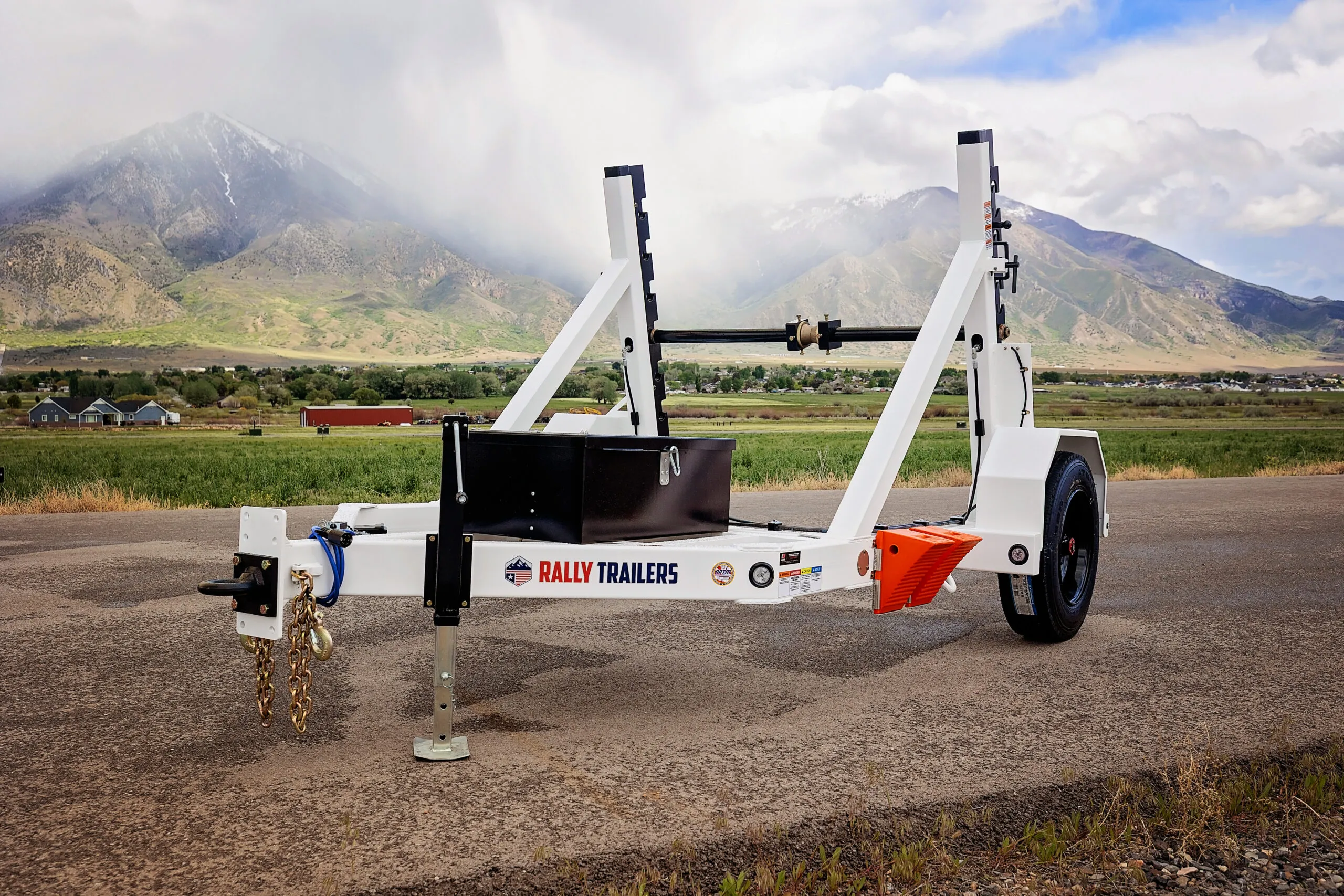

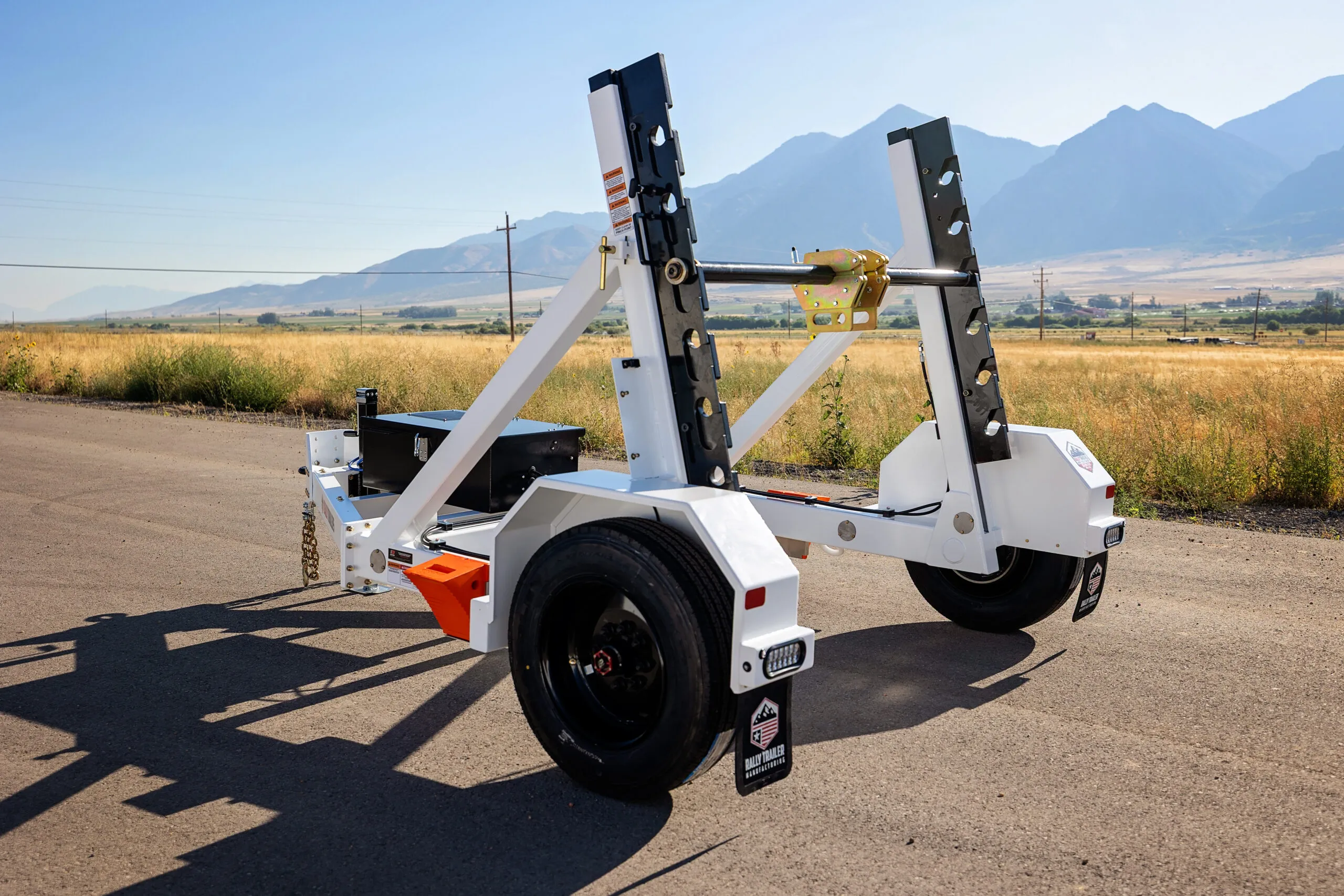

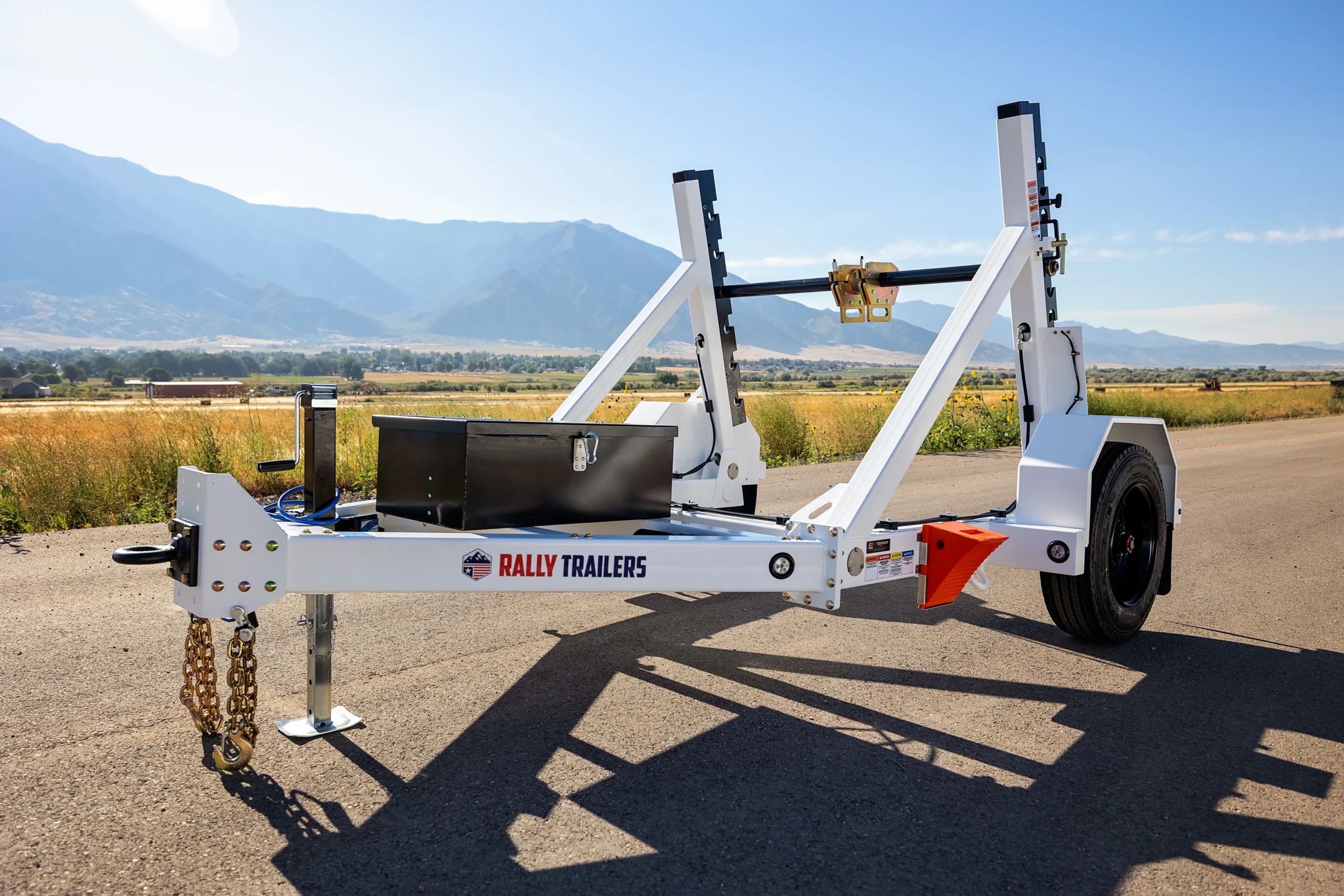

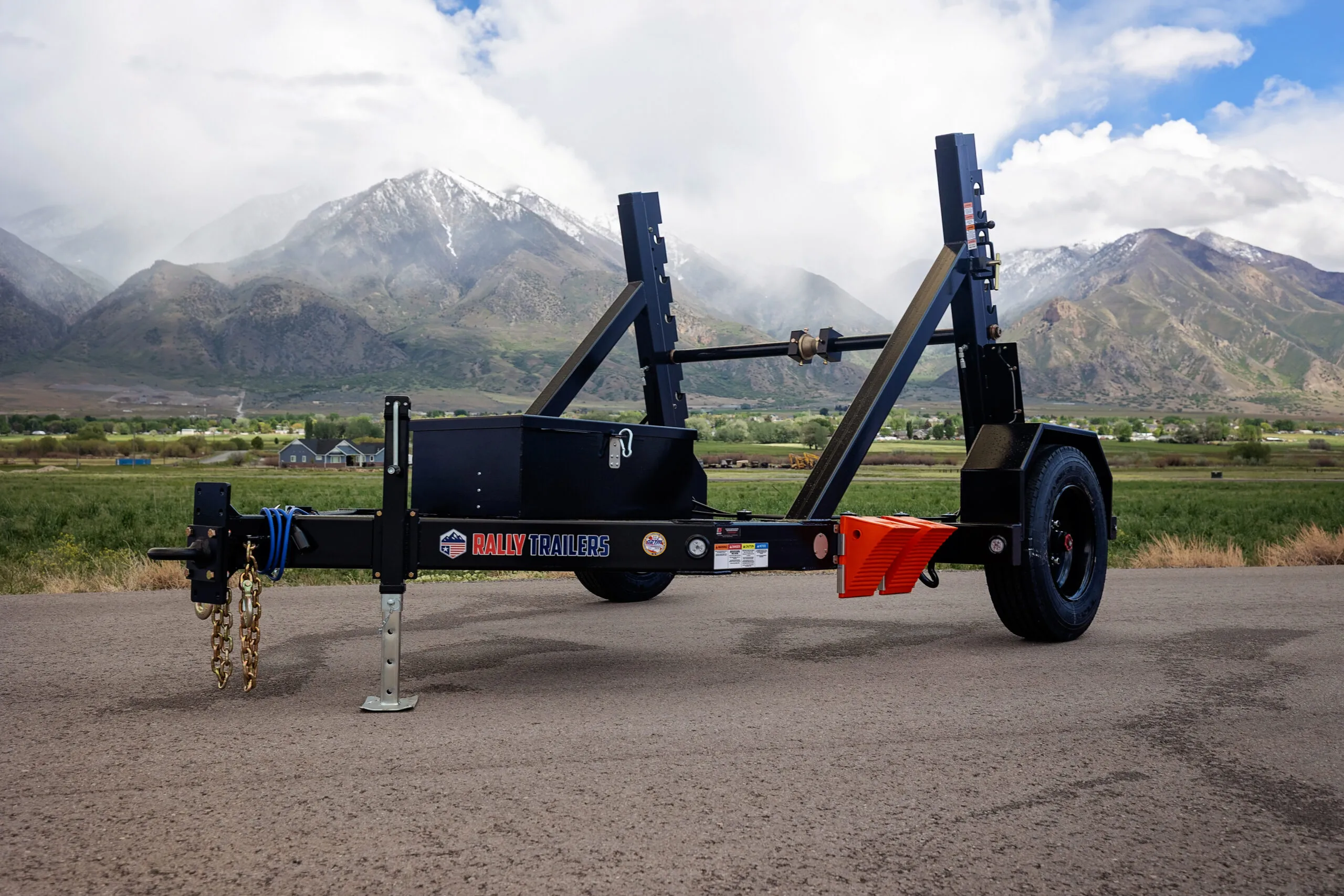

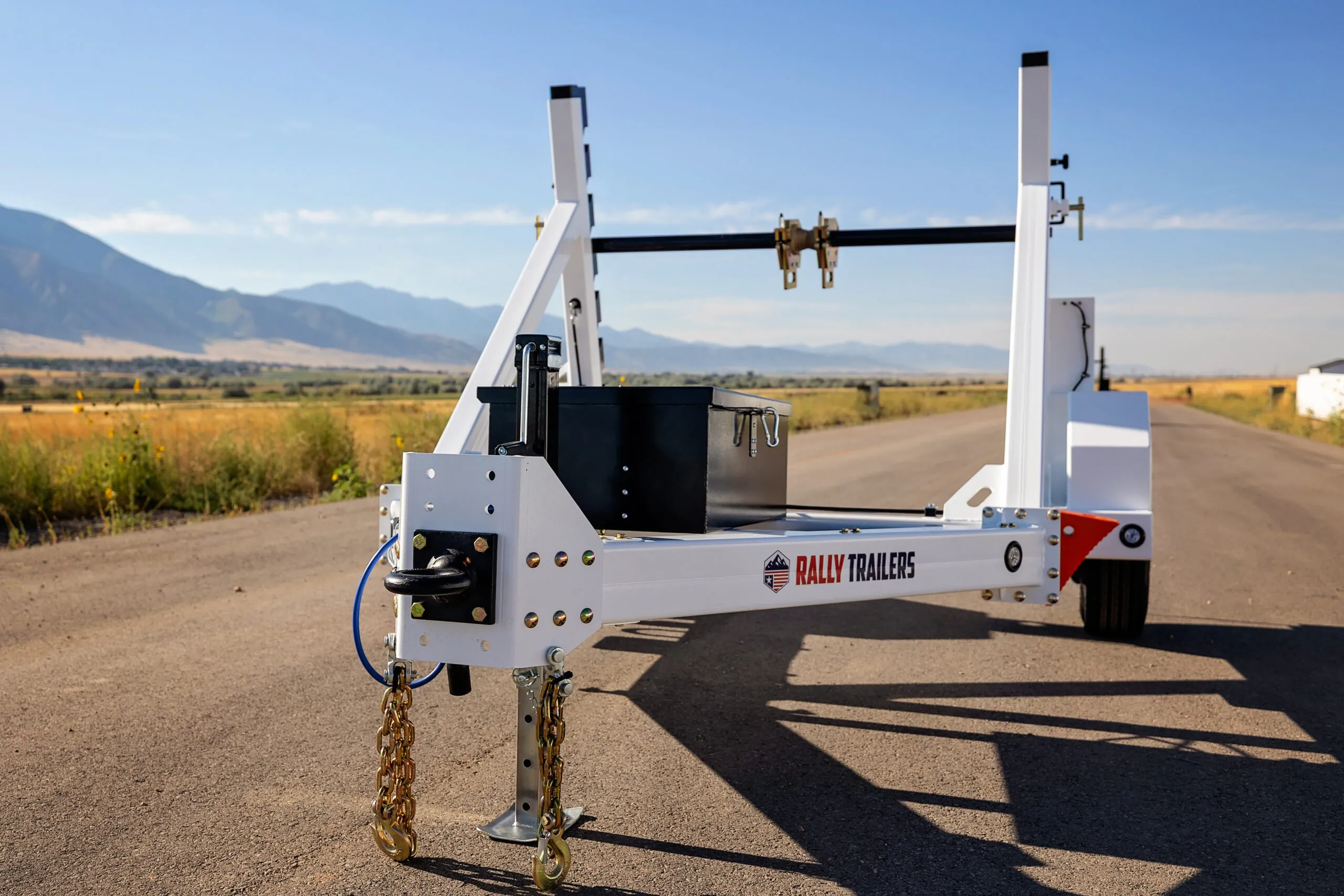

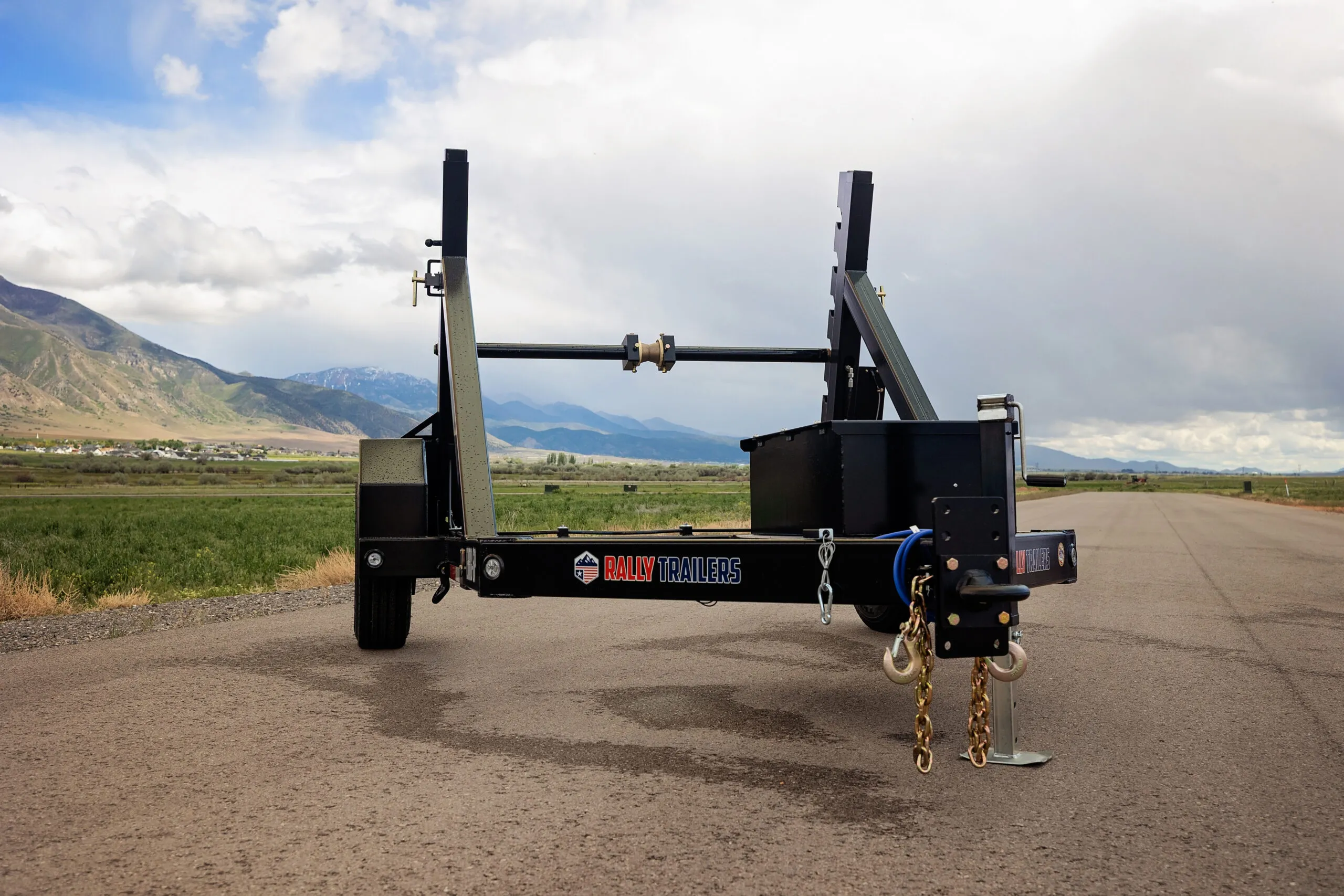

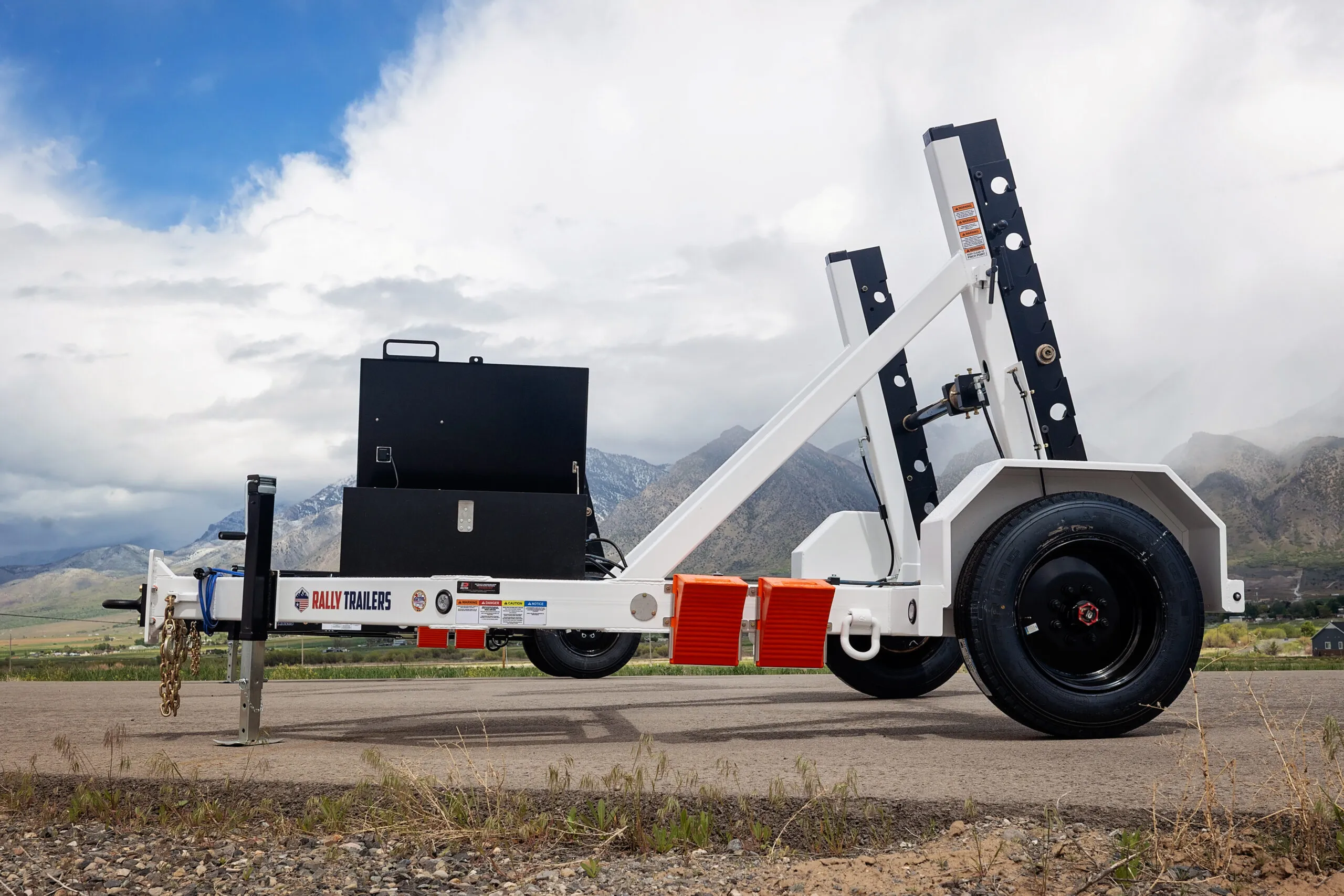

The 6 Position Electric Hydraulic Reel Trailer is designed to accommodate cable and conduit reels ranging in diameter from 10” to 120”. It’s equipped with an electric hydraulic pump that raises and lowers the arbors, allowing a single operator to load and unload reels with reduced physical effort. This trailer includes a Rally roller bar with bronze bearings to support controlled, consistent payoff of conduit and cable. Built for heavy-duty, job-site use, this trailer provides a practical, efficient solution for handling reels while improving operational efficiency and safety.
GVWR: 9,140 lbs
Payload Rating: 8,000 lbs
Reel Width: 60″
Reel Diameter: 120″
Trailer Length: 13′
Trailer Width: 98″

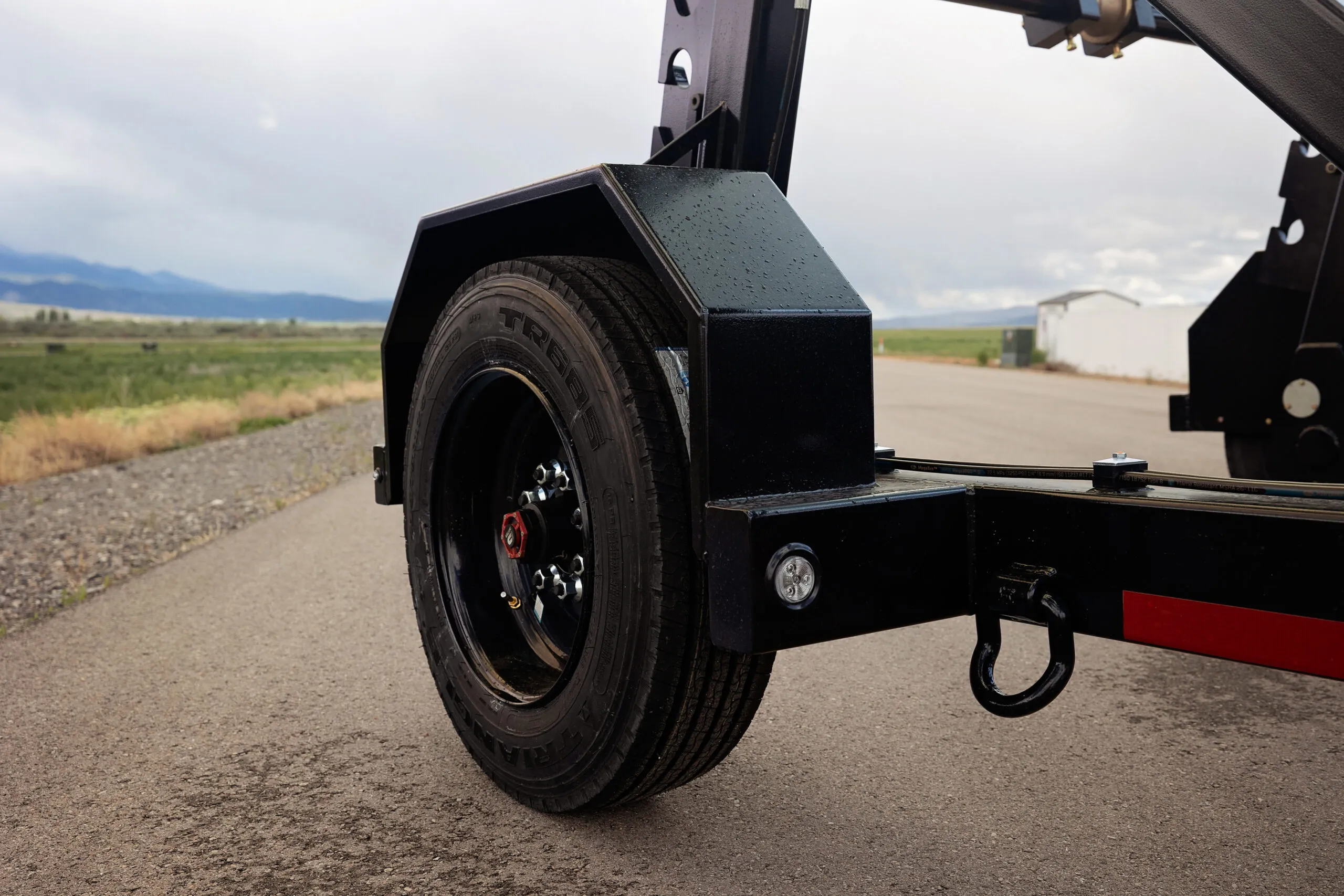

Tires: 215/75R 17.5

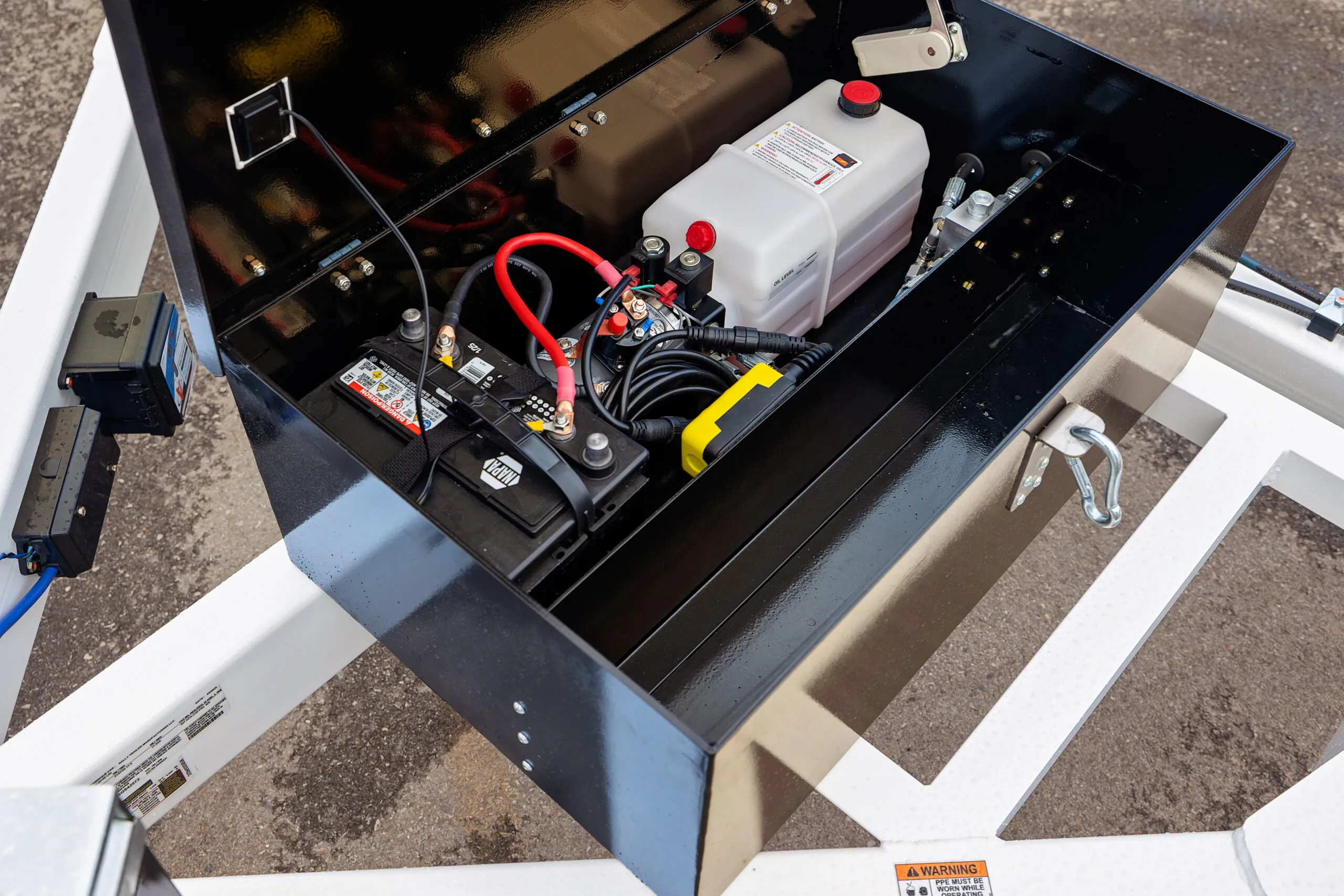

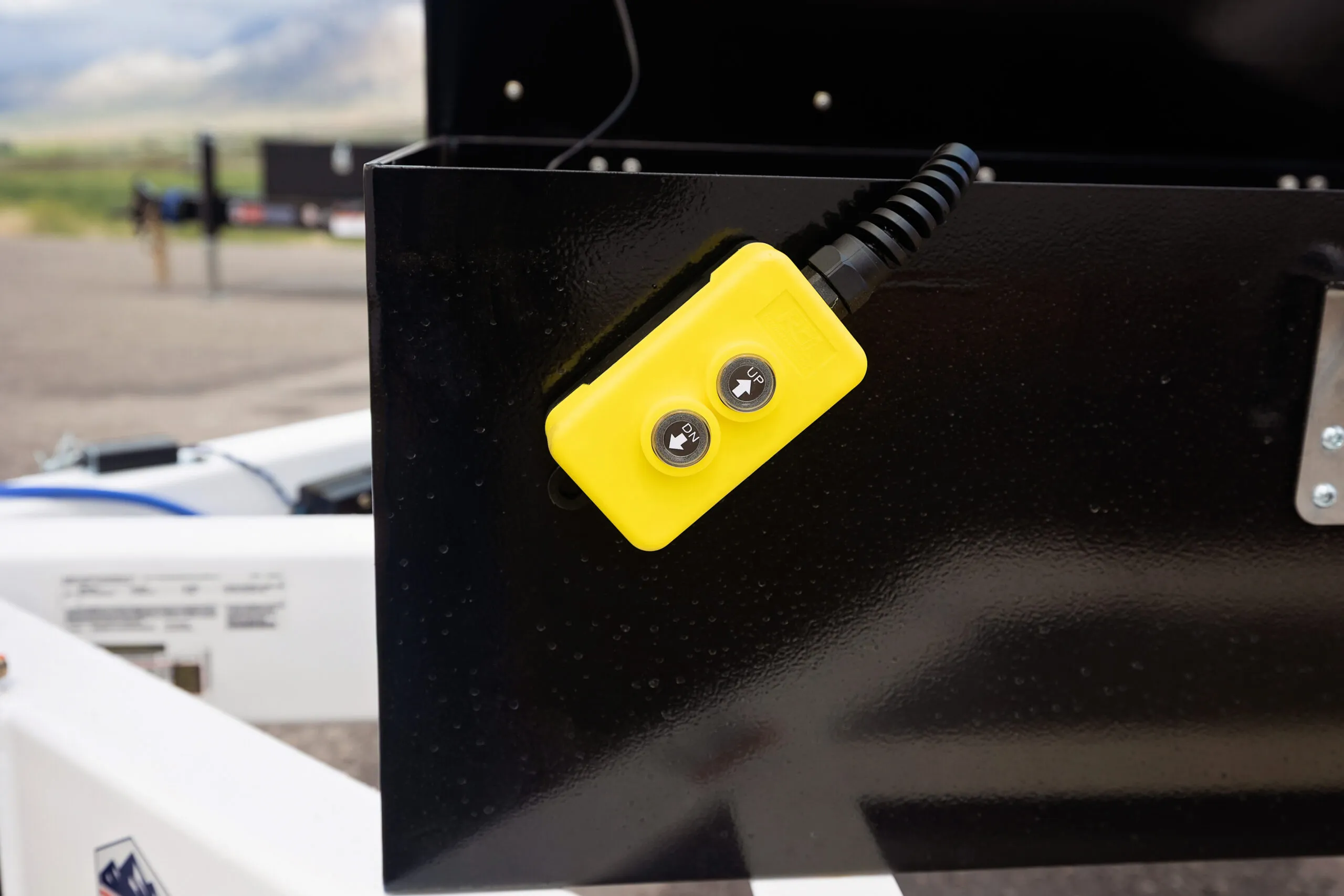

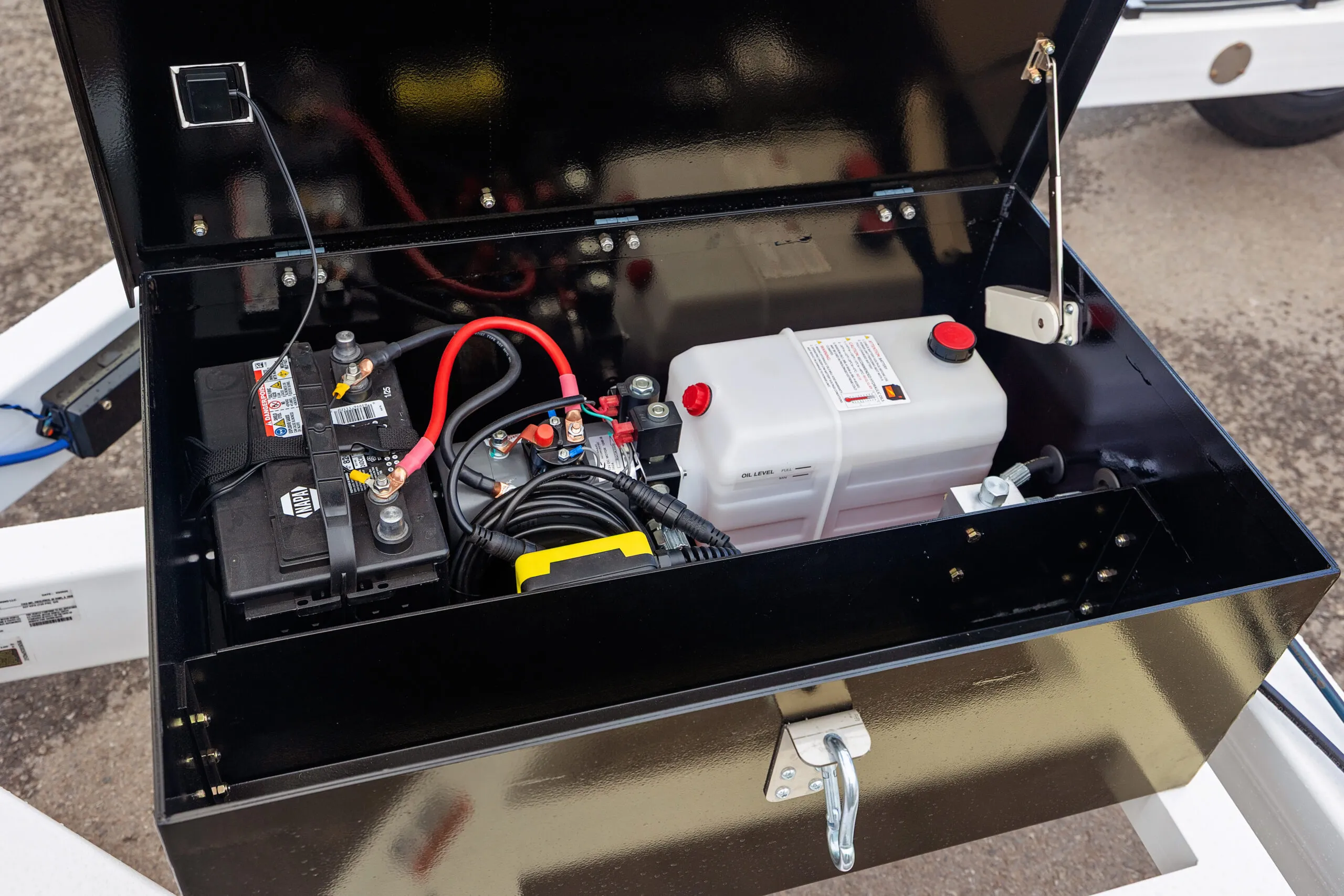

Electric Over Hydraulic Pump: Power up / power down

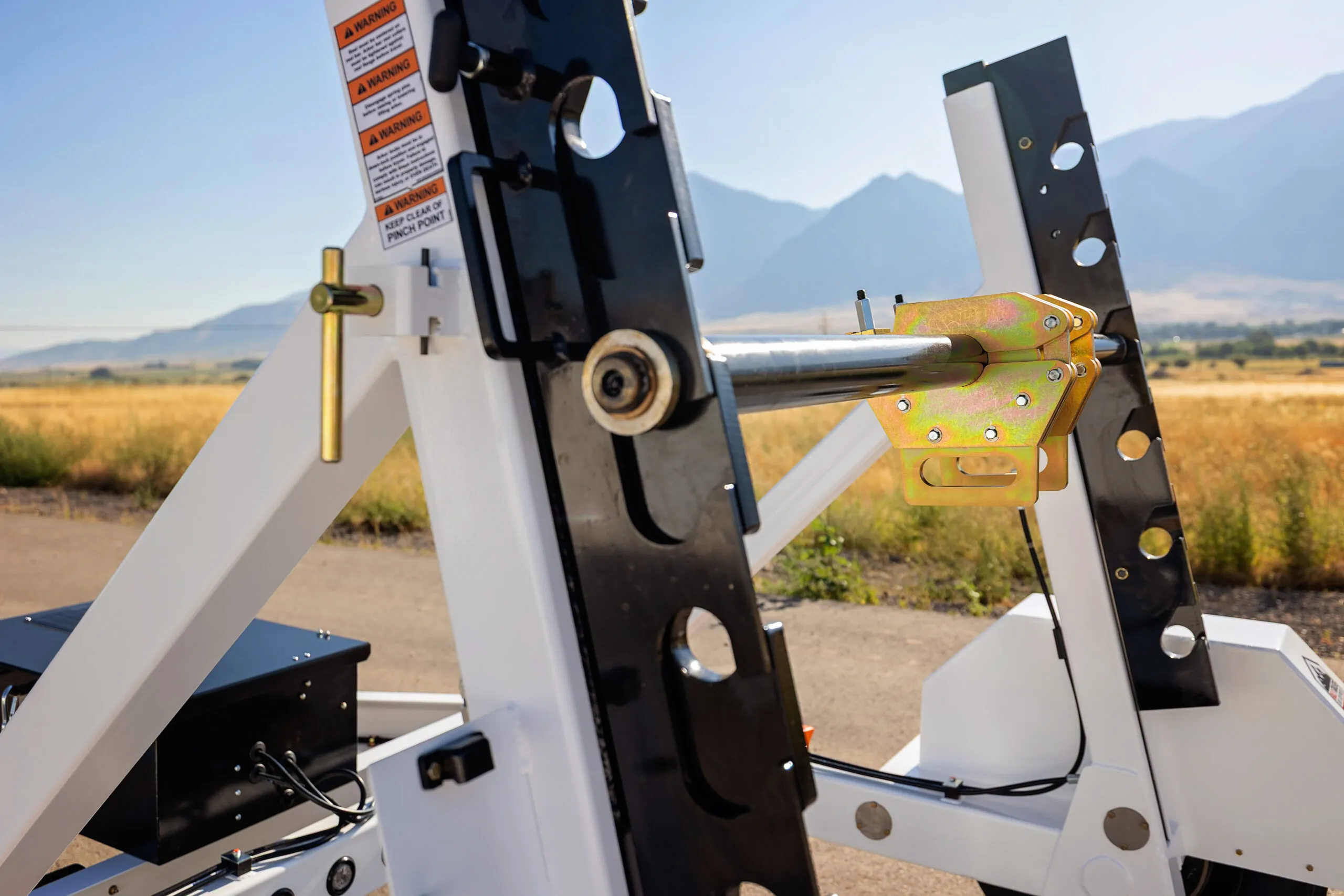

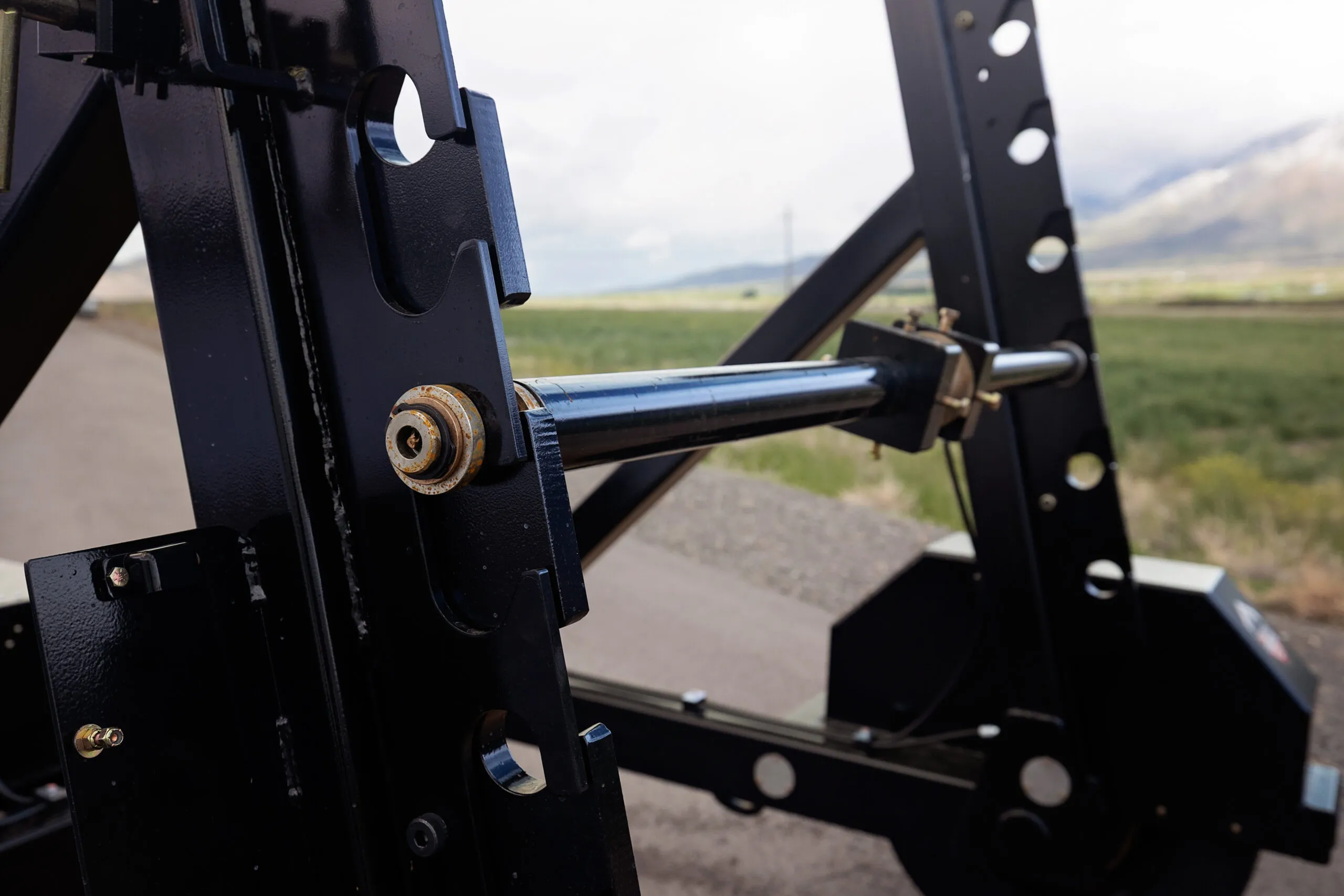

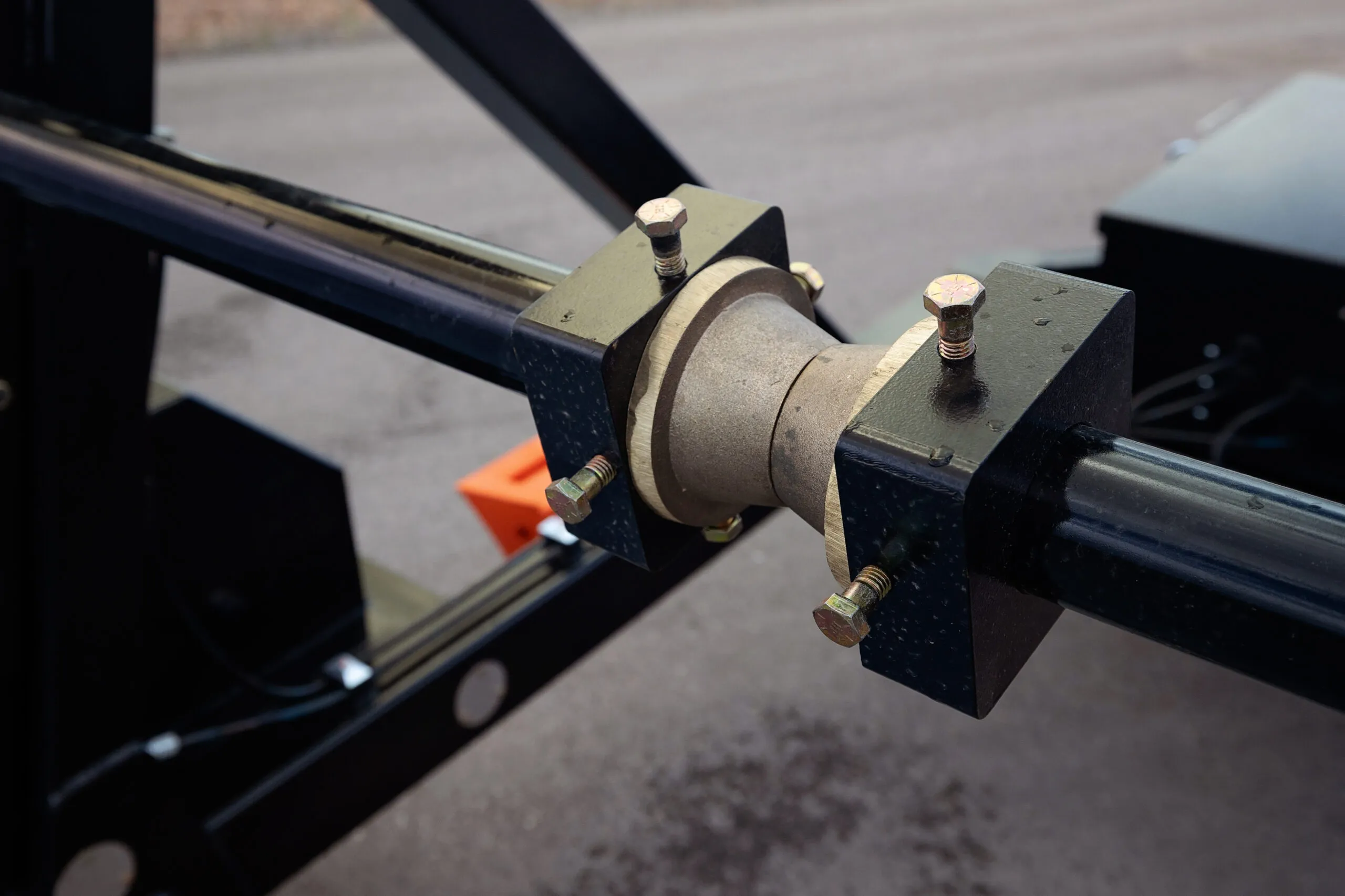

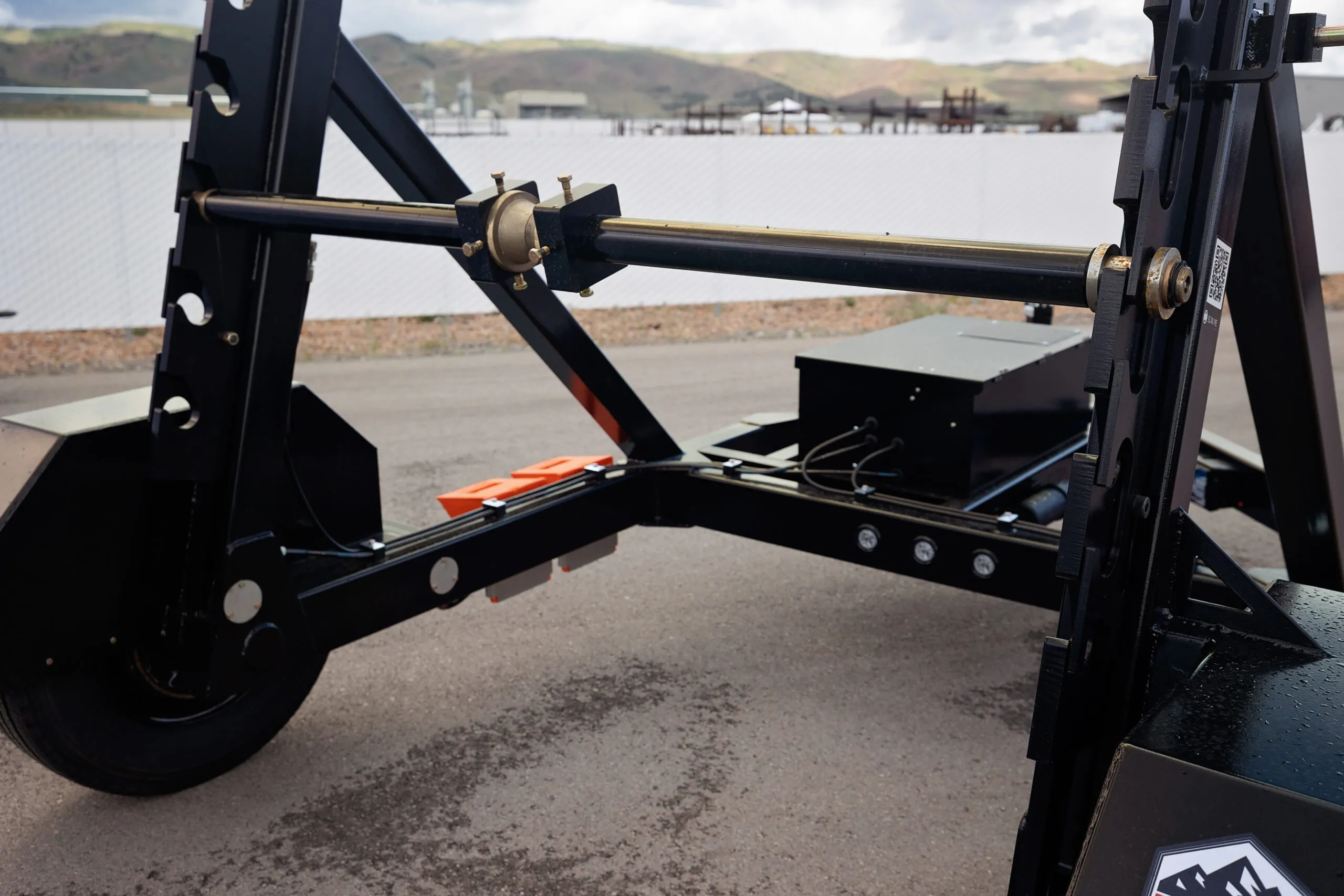

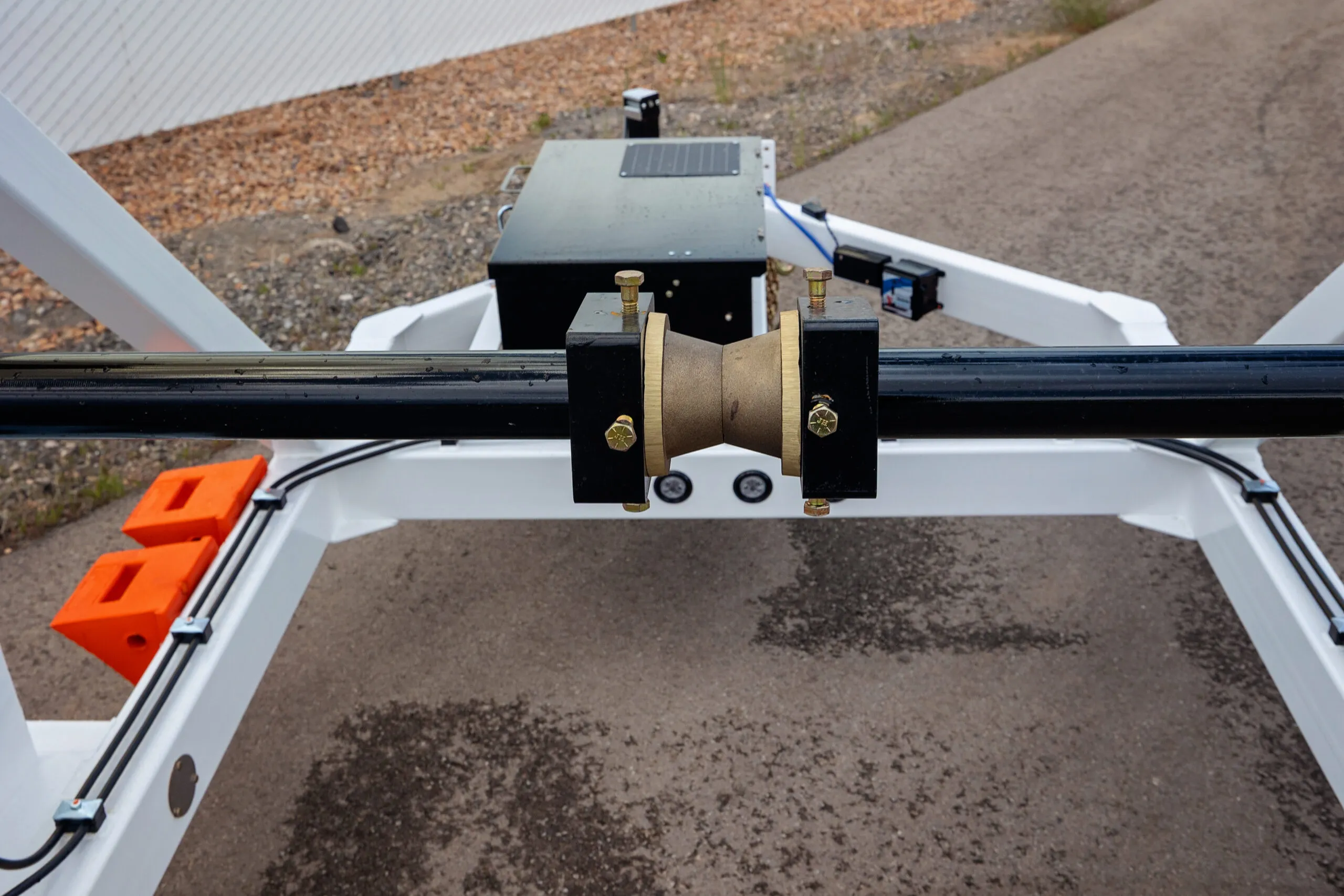

Roller Bar: 2 5/8″

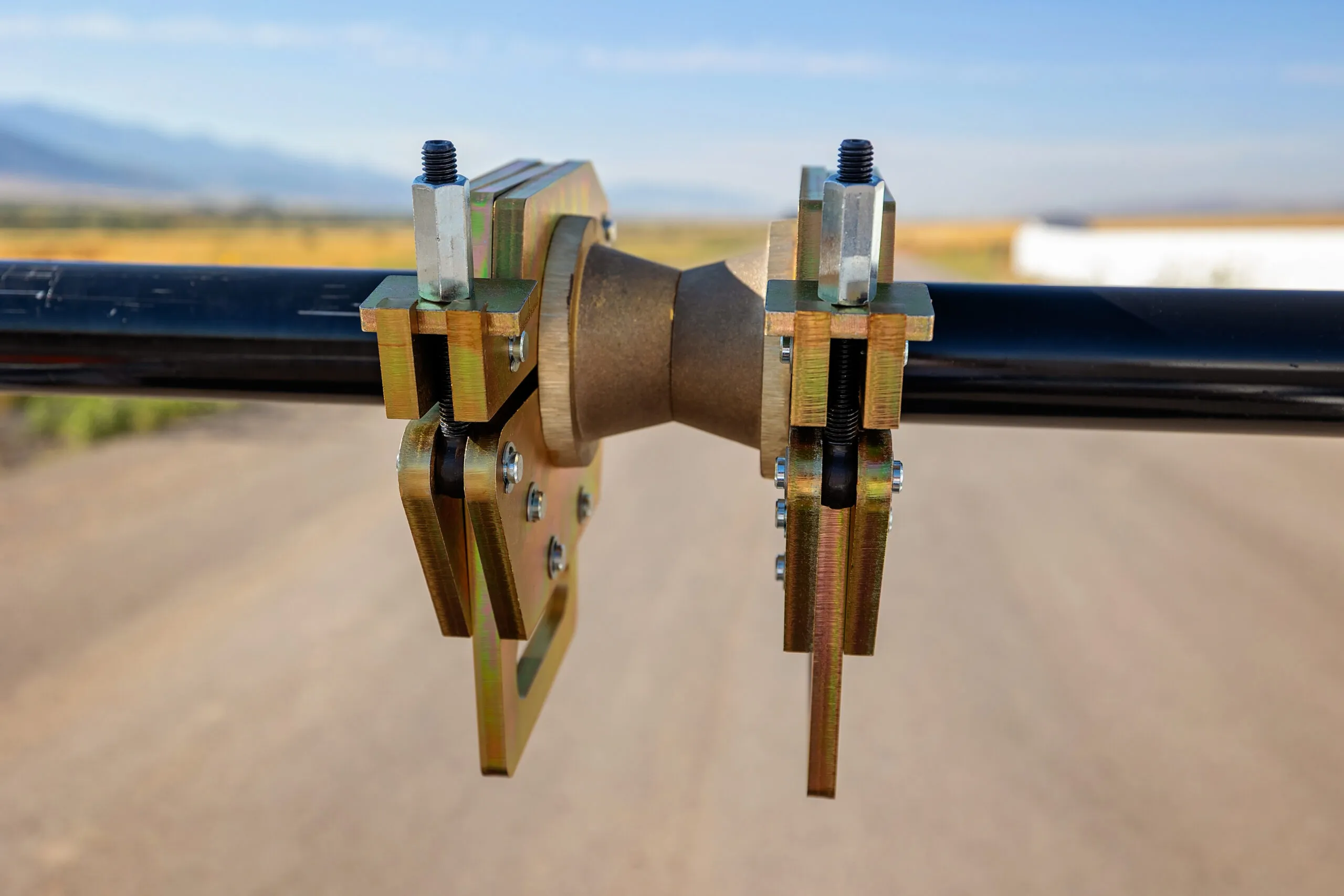

Locking Collars: (2)
Centering Cones: (2)

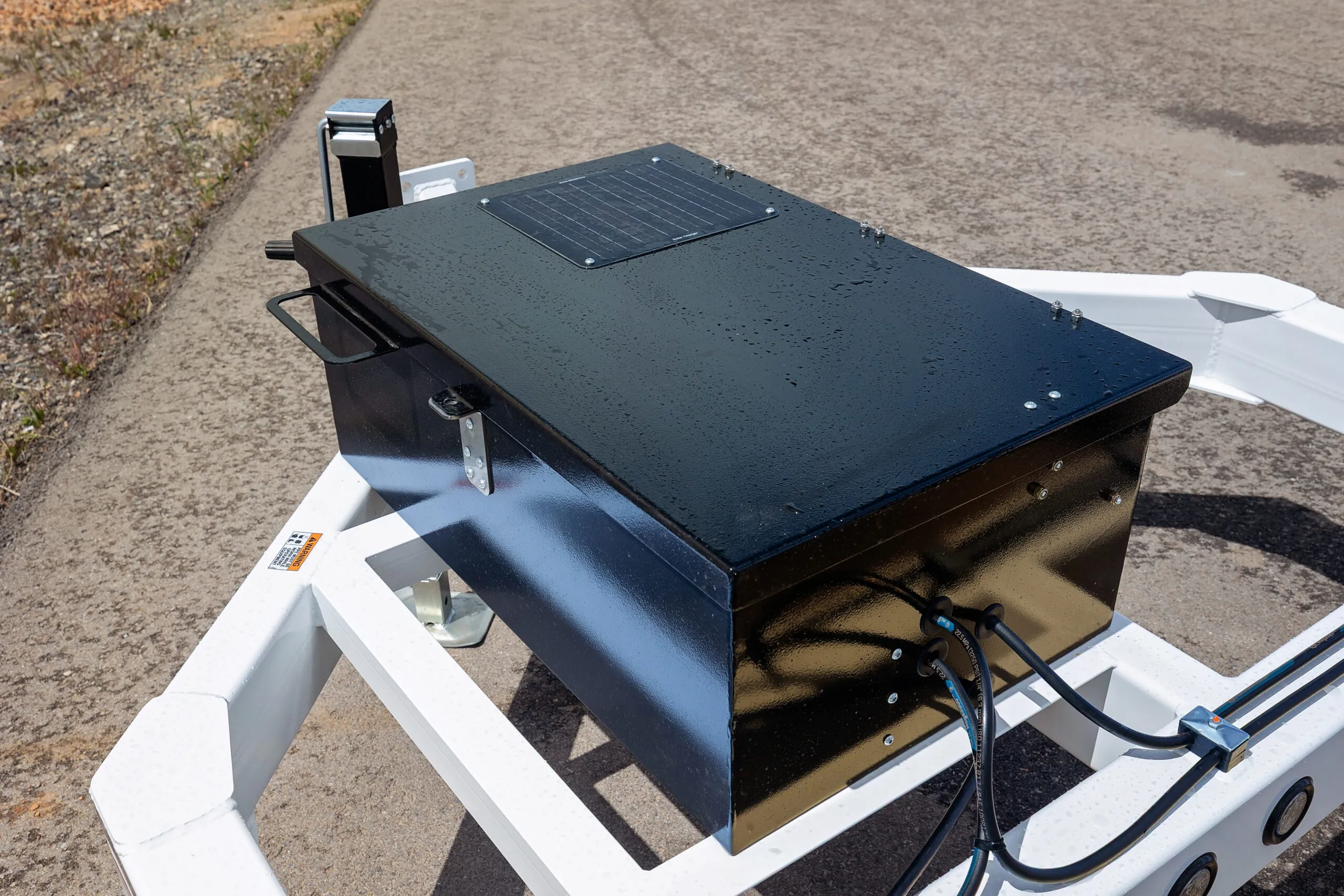

Toolbox: Included
Lifting Capacity: 8,000 lbs
Pinless Locking System

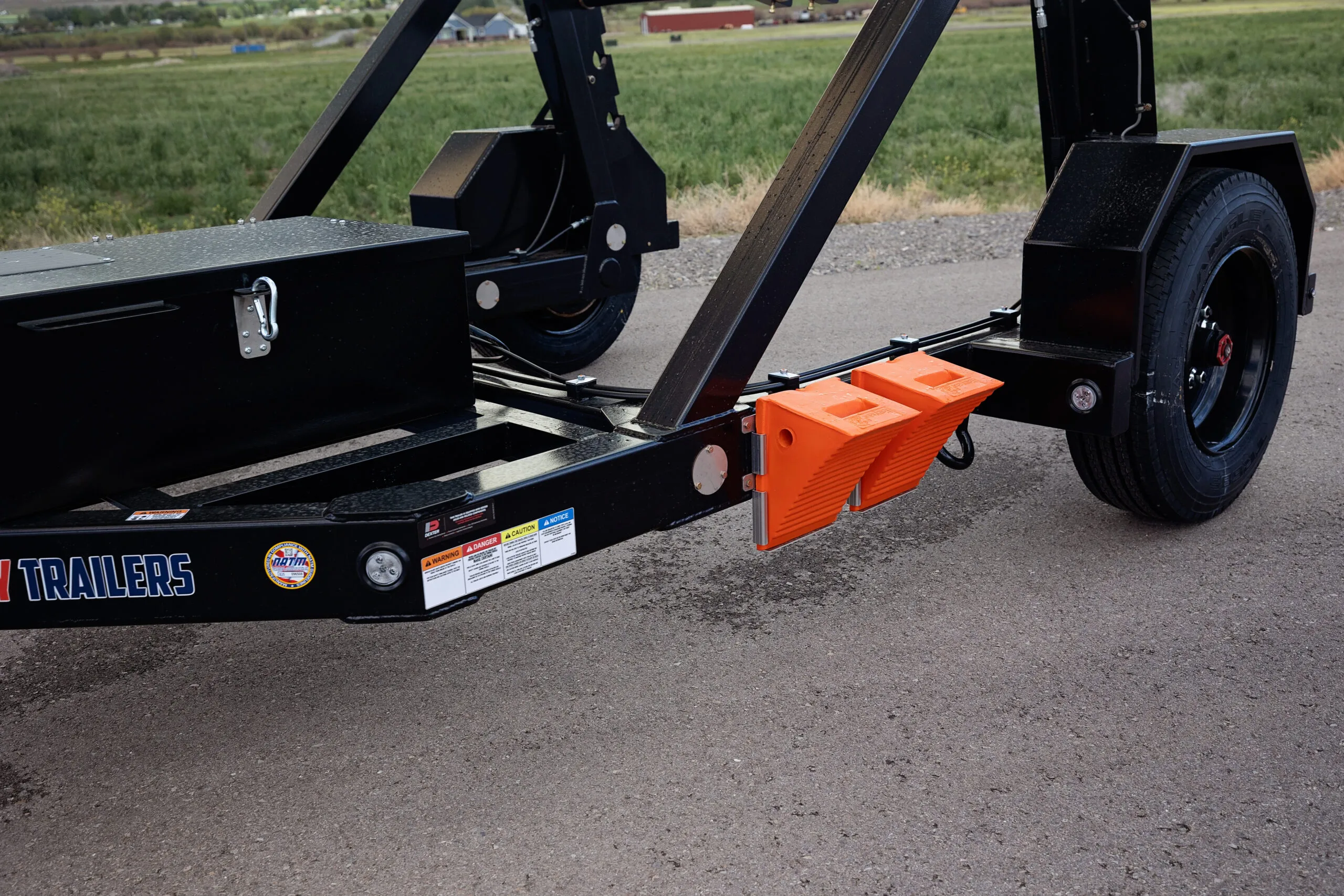

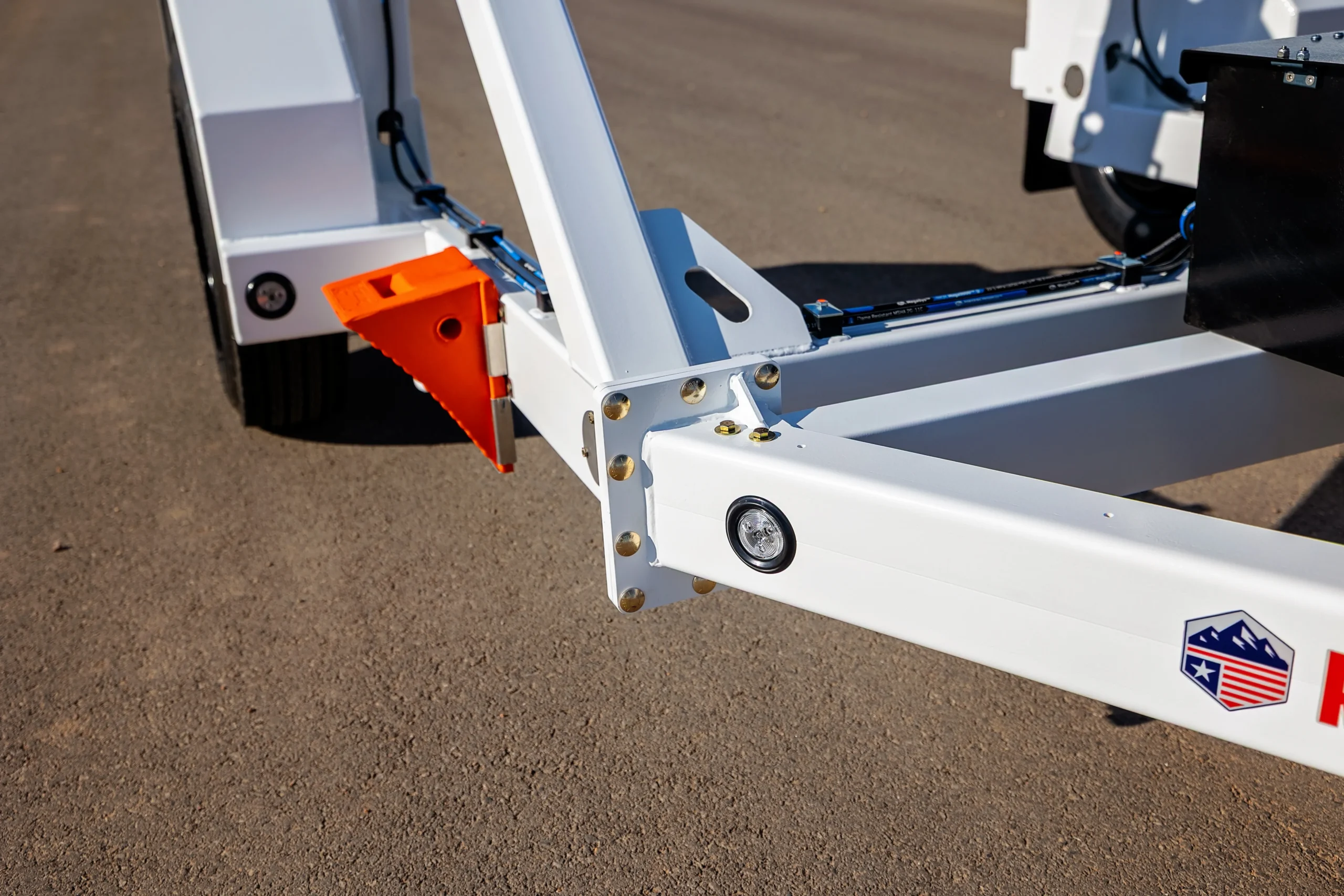

Tire Chocks: (2) with aluminum holders
LED Lights
Electric Brakes

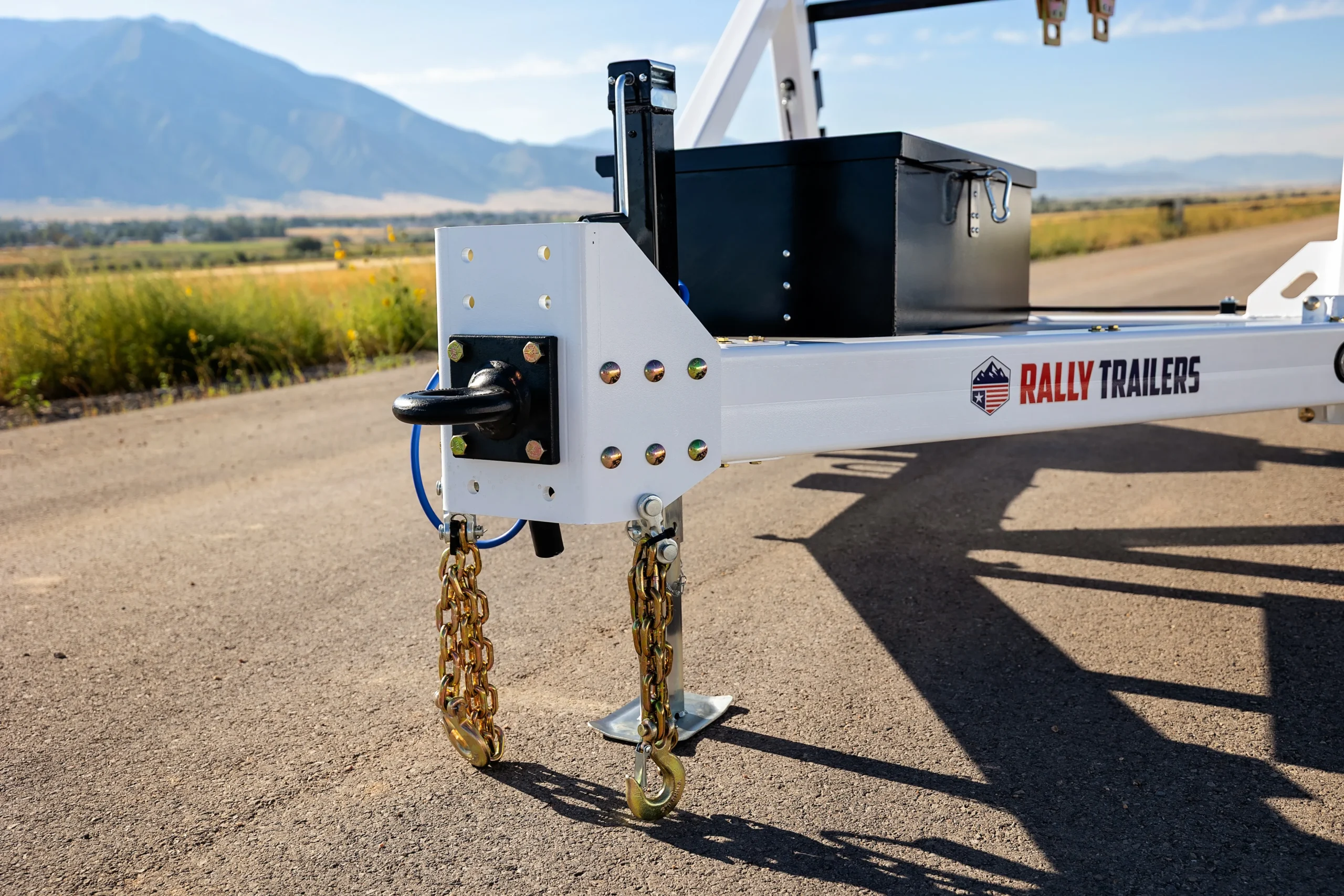

Pintle Hitch
Hydraulic Jack
Galvanized Finish
Increased Payload
- Color Options
Check out this article!: Click Here
See More Videos on this Trailer: View Now
Upgrade your Trailer

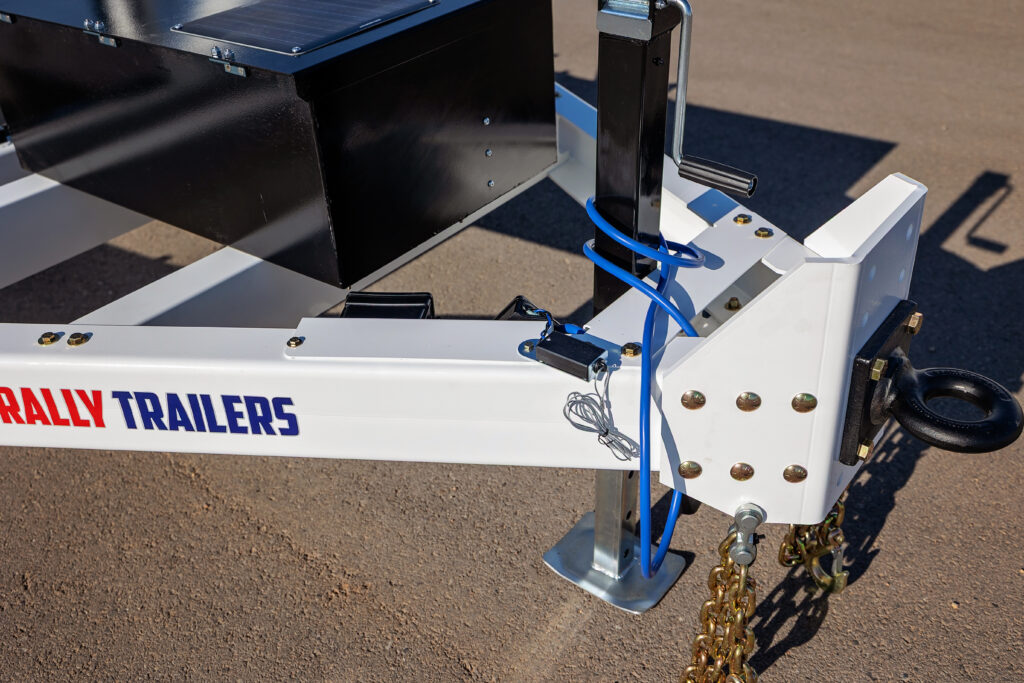

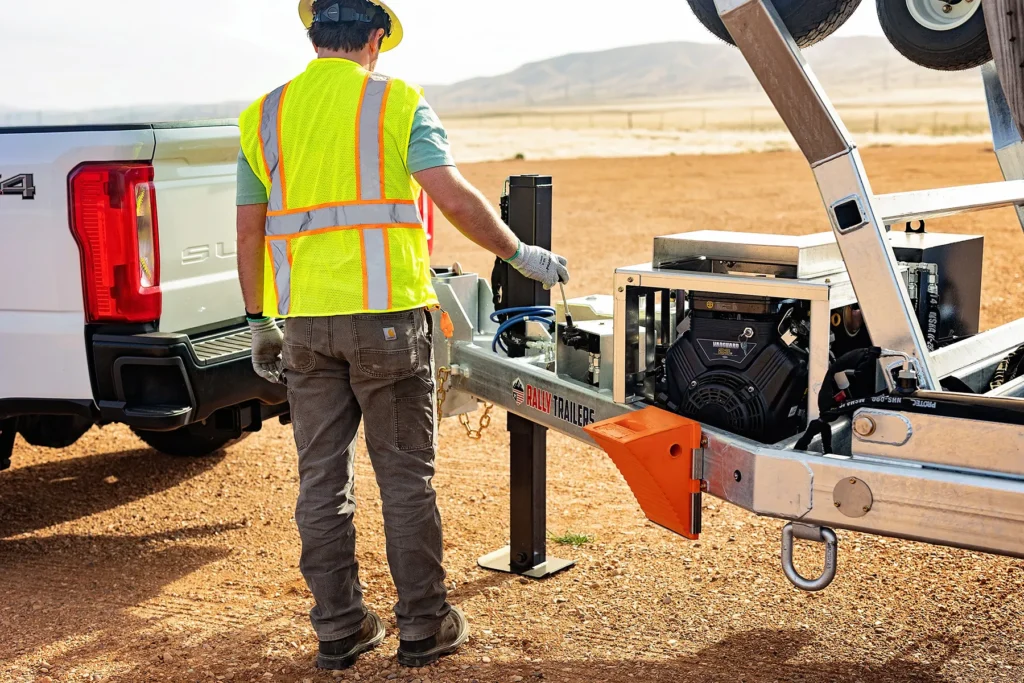

Hydraulic Jack
A hydraulic jack on the front of your trailer makes hooking up to your truck a quick and painless thing.

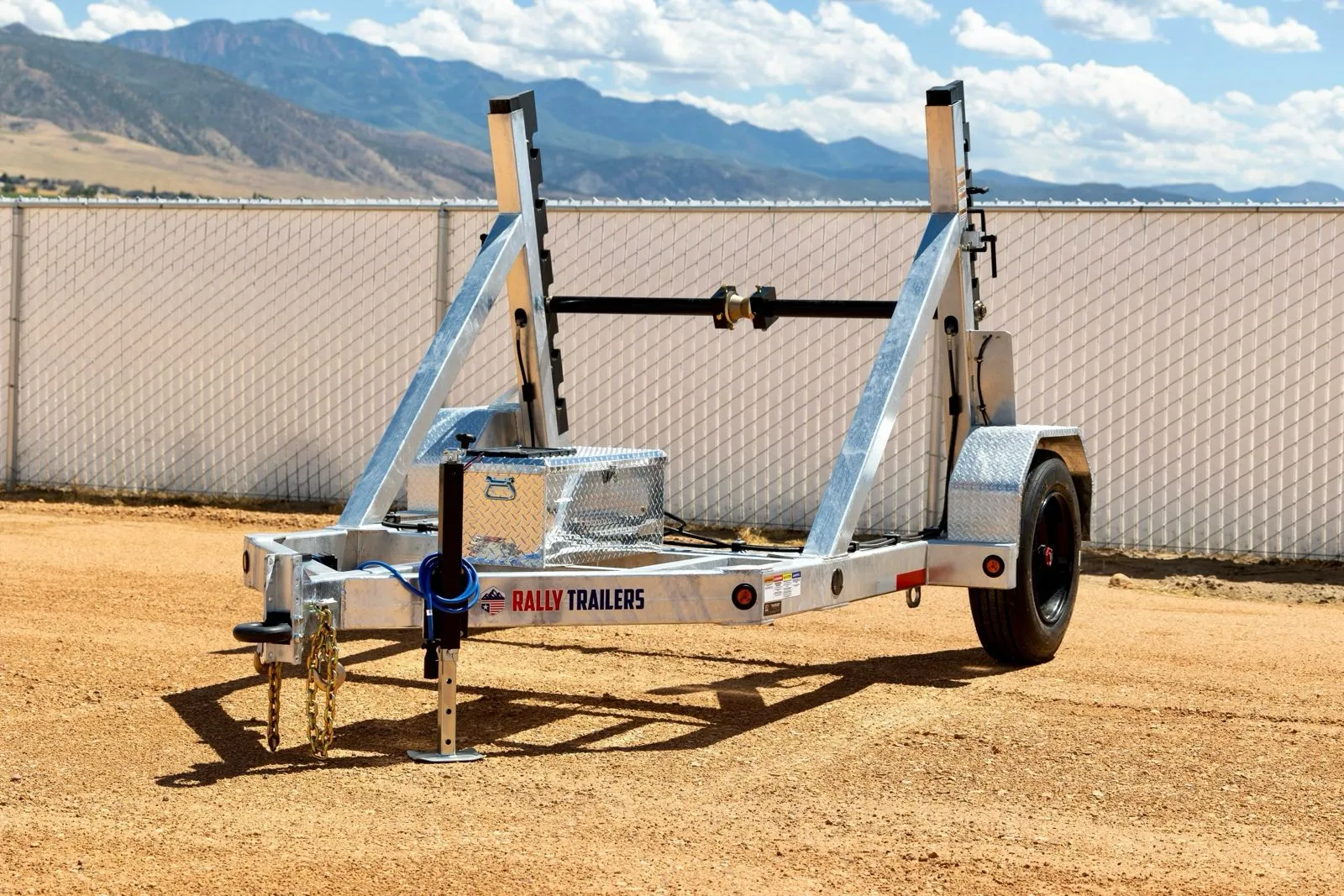

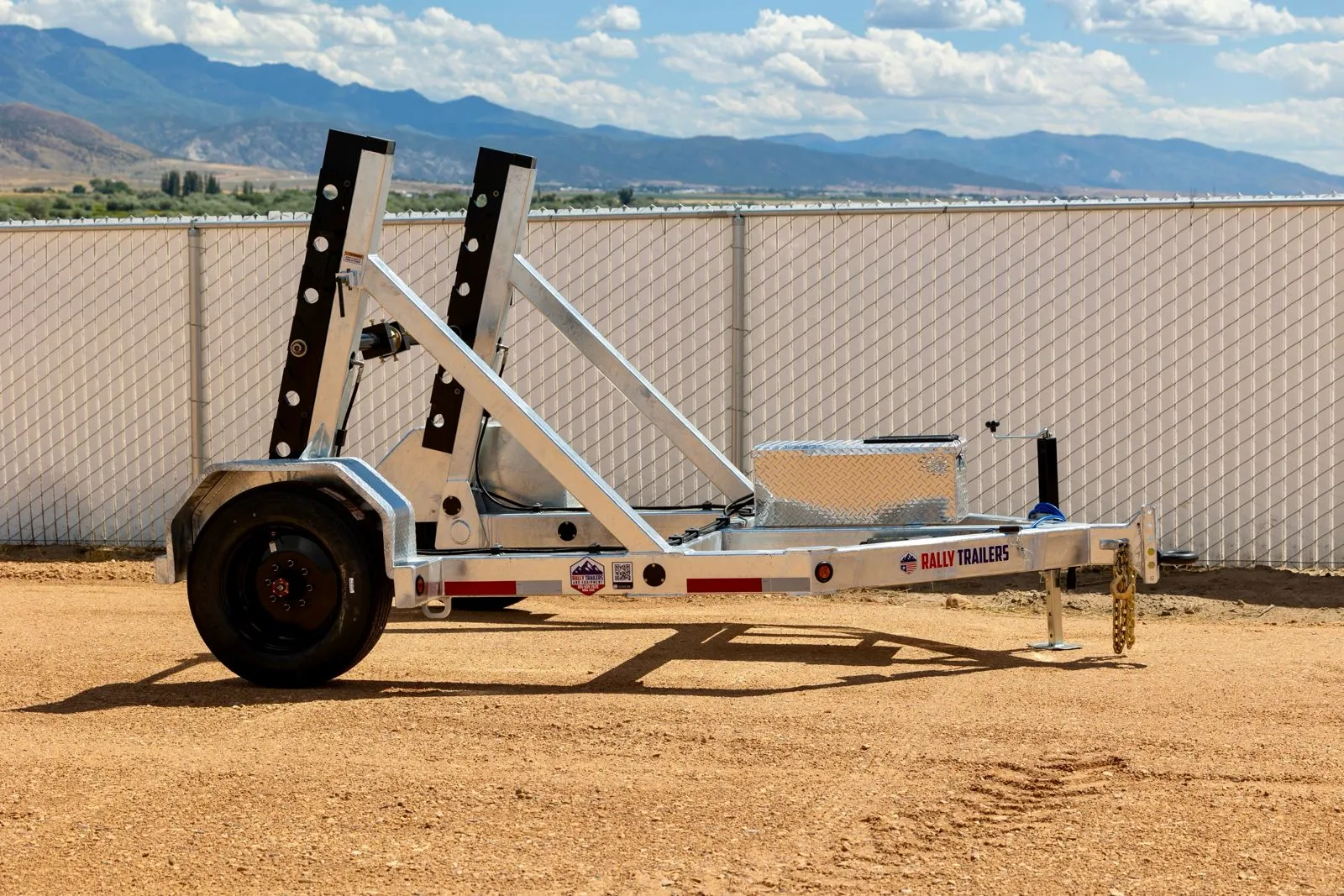

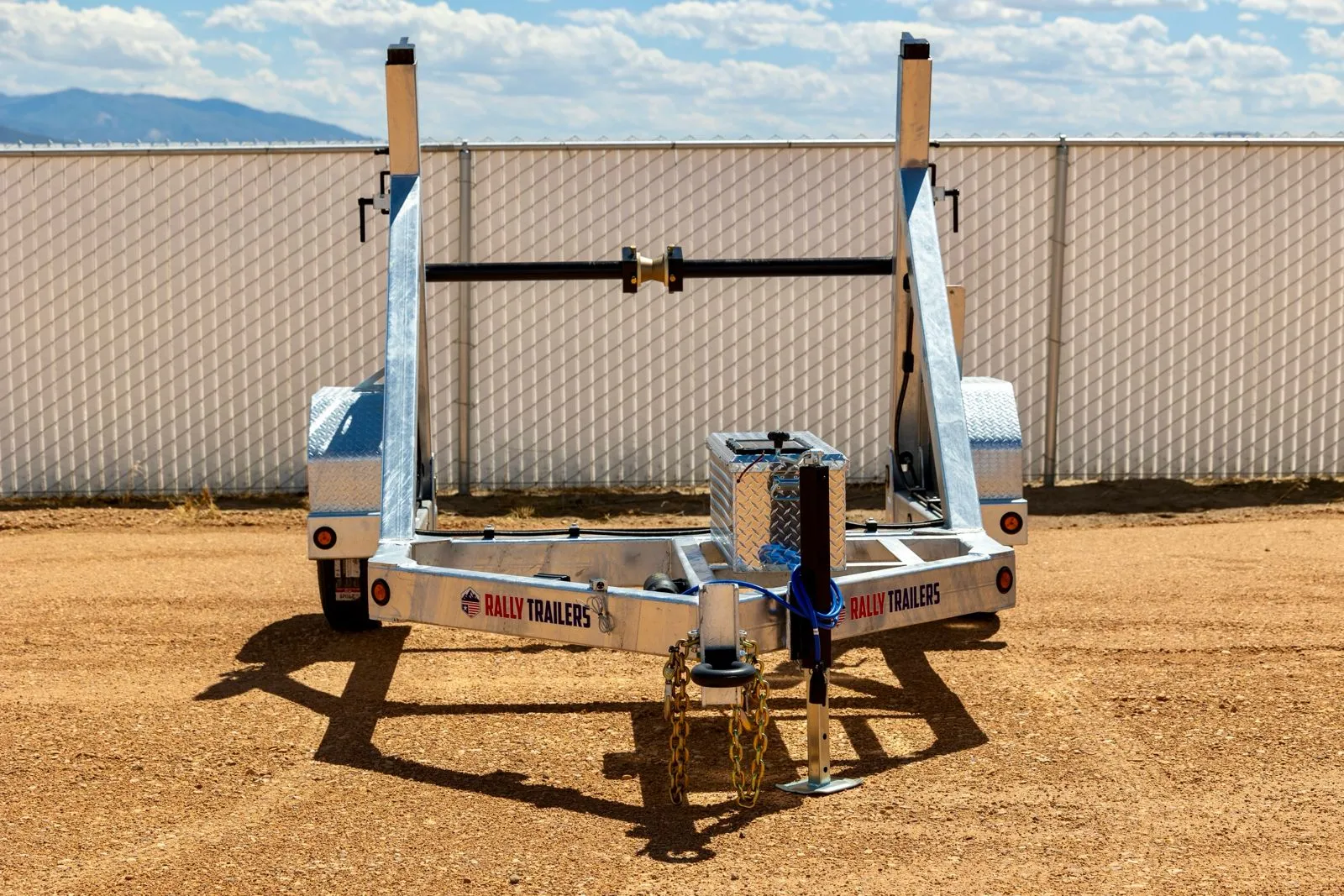

Galvanized fINISH
Galvanized hot dip zinc finishes give your trailer an extra tough coating. This coating covers both the interior and exterior of the frame ensuring you trailer will last for years to come.
Increased payload
if you want to haul heavier reels we can upgrade your axle and tires to haul heavier reels safely
Playlist
Frequently Asked Questions
Single Reel Trailers are ideal for jobs that require managing one spool of cable at a time; making them a great choice for straightforward, single-line projects.
Mulit-Reel Trailers are designed for efficiency on larger jobs, allowing operators to transport and work up to 10 reels dependent on the trailer of choice.
When selecting a turret trailer, consider whether a manual or hydraulic system best fits your job requirements. Hydraulic turret trailers are equipped with a gas powered unit and motors mounted on bearings, delivering smoother rotation and reduced physical strain.
Manual trailer designs offer a simpler, more traditional setup and may be suitable for lighter-duty application.
A Rally Trailer is built with durability and long-term performance in mind. The roller system includes end sleeves fitted with pressed-in bronze bushings and grease zerks, promoting smoother rotation, reduced friction, and easier ongoing maintenance.
The finish is engineered for protection in demanding environments. A zinc-rich primer provides corrosion resistance at the base layer, while a two-part polysiloxane topcoat delivers superior durability, color retention, and weather resistance. Galvanized steel options are also available for additional rust protection.
Rally Trailers are fully customizable, allowing you to tailor specifications to meet the exact needs of your application.
